High-Speed 8-Point Analog Input for 984 Automation Systems

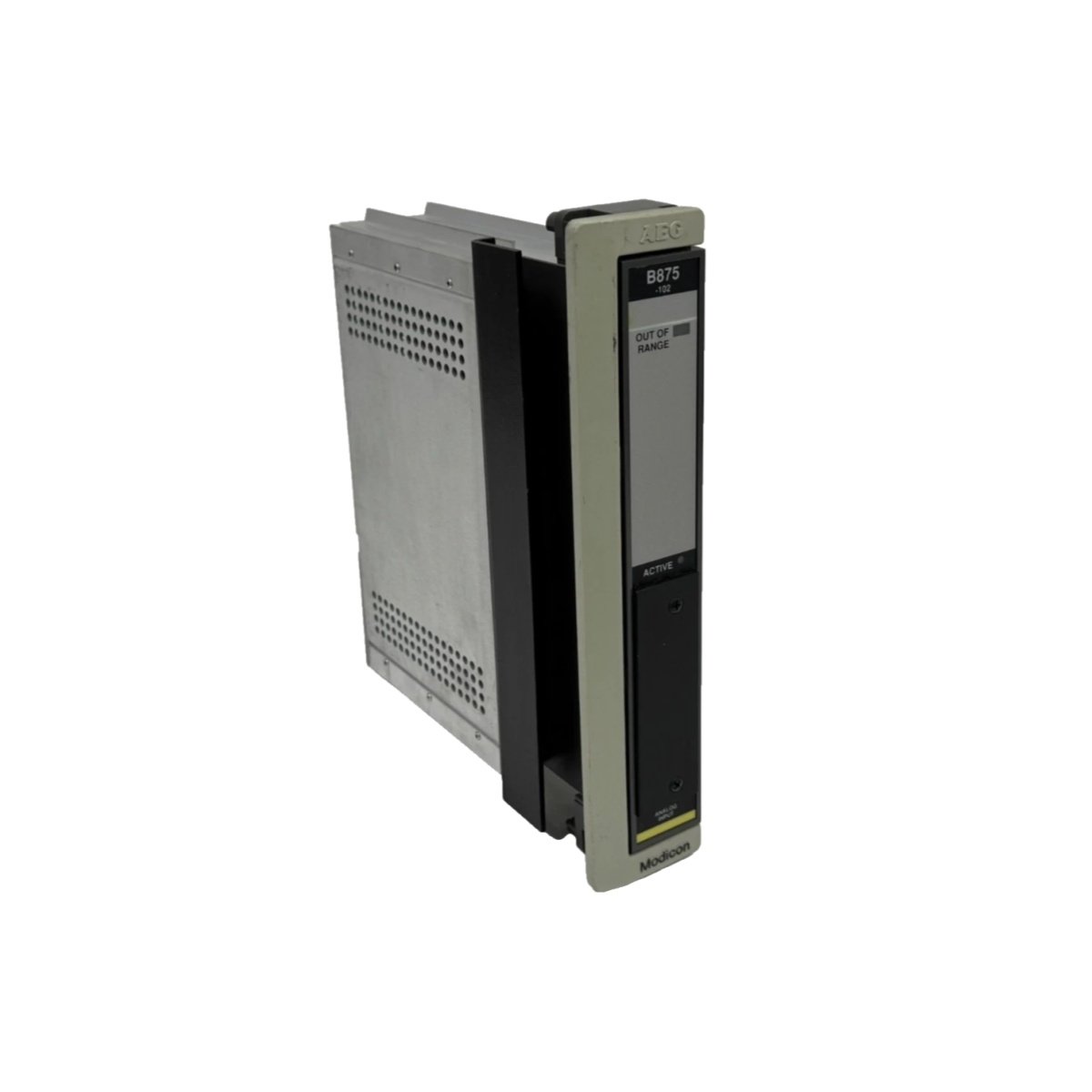

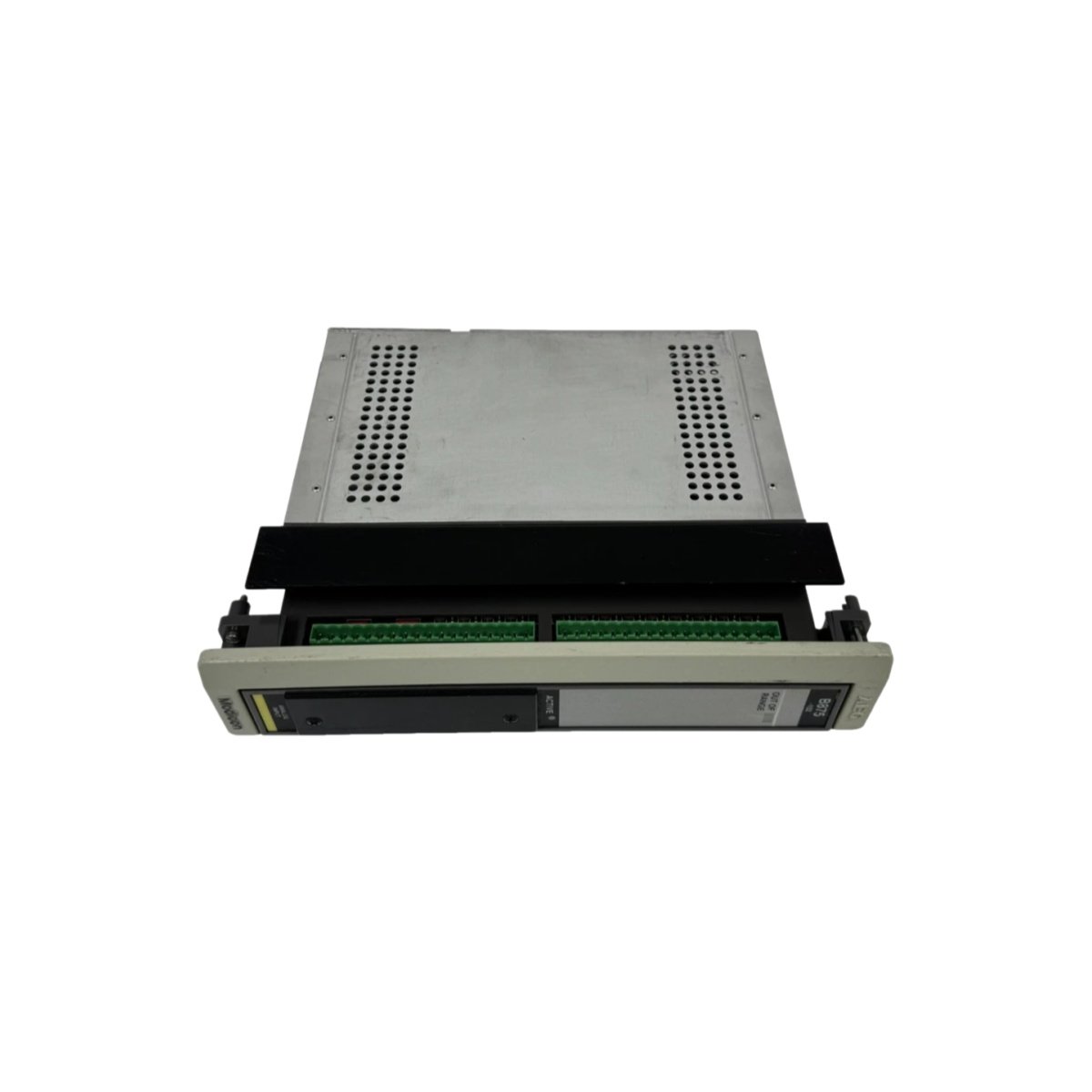

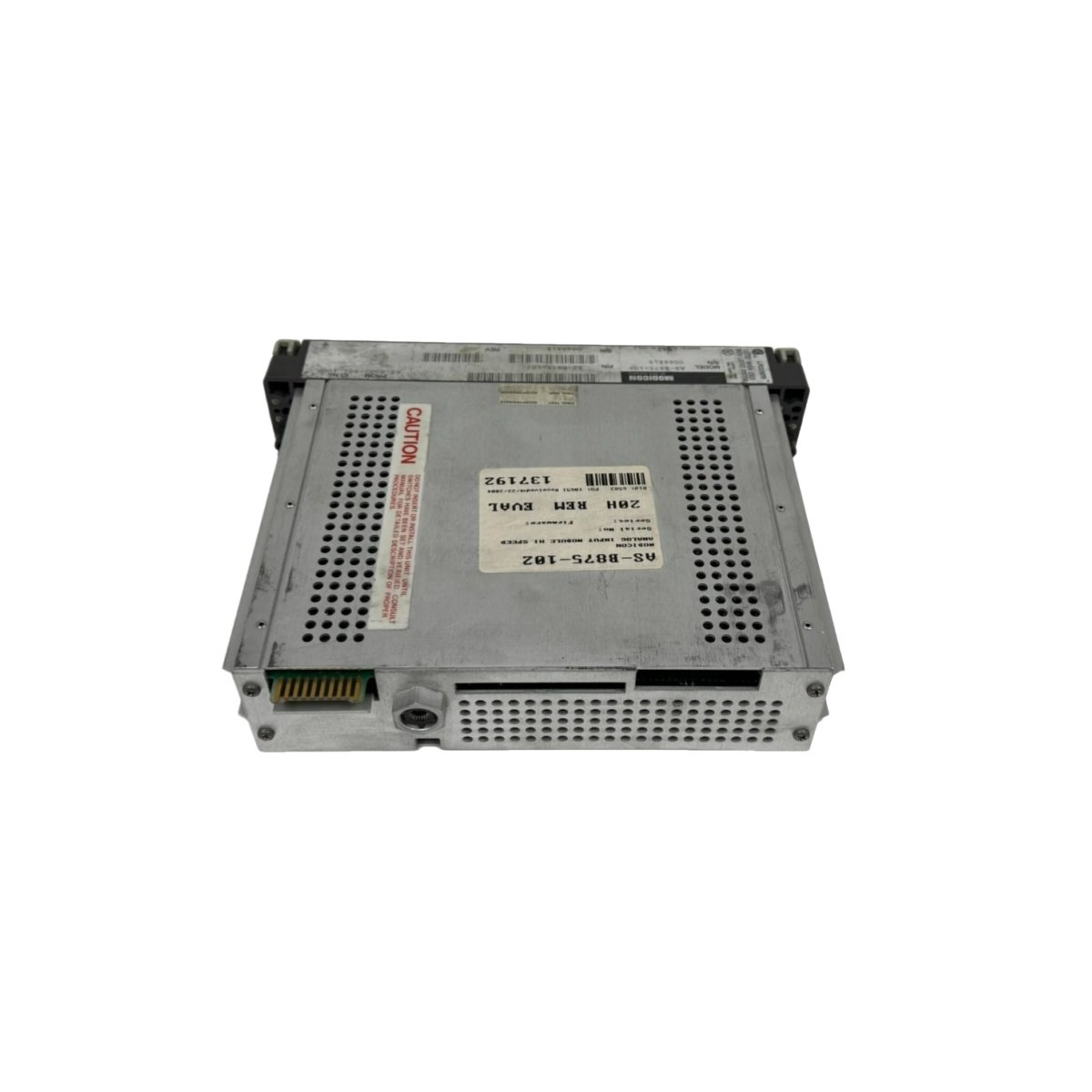

The ASB875102 serves as a high-speed analog input module within Schneider Electric’s Modicon 800 Series. Engineers deploy this unit to capture fast-changing analog signals from sensors and transmitters. Consequently, the module delivers precise data acquisition for demanding industrial control applications.

Technical Specifications

Analog Conversion Performance

The module performs analog-to-digital conversion with 12-bit resolution, providing precise signal digitization. Conversion linearity reaches 0.05% of full scale across the operating temperature range. Therefore, the ASB875102 captures even minute signal variations with exceptional accuracy and repeatability.

Input Flexibility and Configuration

DIP switches allow configuration of inputs in two independent groups of four channels each. Each group supports five voltage ranges and corresponding current ranges. Additionally, the built-in 250-ohm resistor enables direct 4–20mA current loop connectivity without external components.

System Integration

The module communicates with Modicon 984 programmable controllers through backplane connections. Data updates within 3.0 milliseconds across all eight channels in the standard configuration. Furthermore, the compact form factor measuring 5.10 × 27.90 × 20.30 centimeters optimizes cabinet space utilization in dense installations.

Environmental Durability

Operating temperatures range from 0°C to +60°C for reliable performance in industrial settings. The module withstands humidity levels up to 80% without condensation. Moreover, deployment at altitudes reaching 1000 meters above sea level suits diverse geographical installations.
