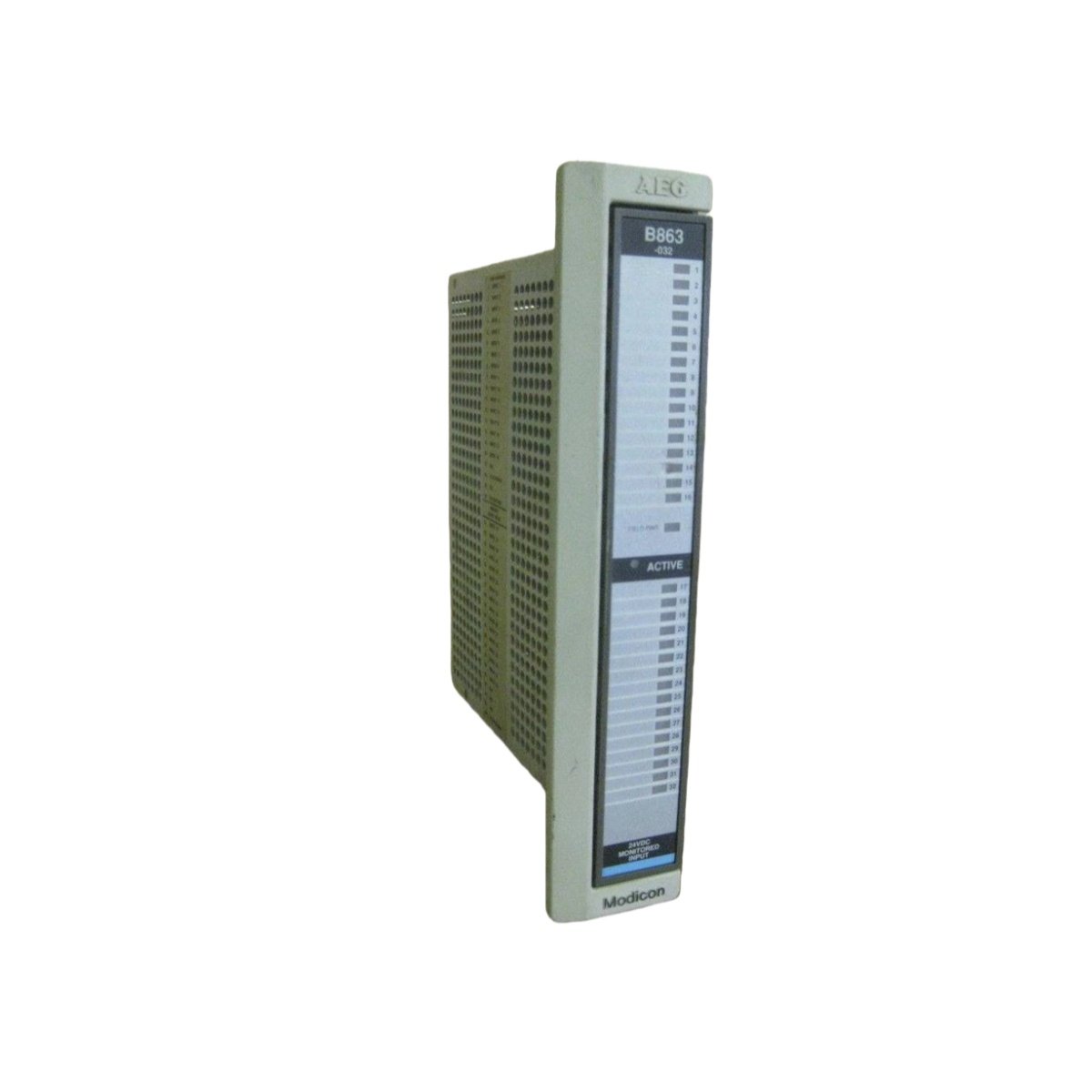

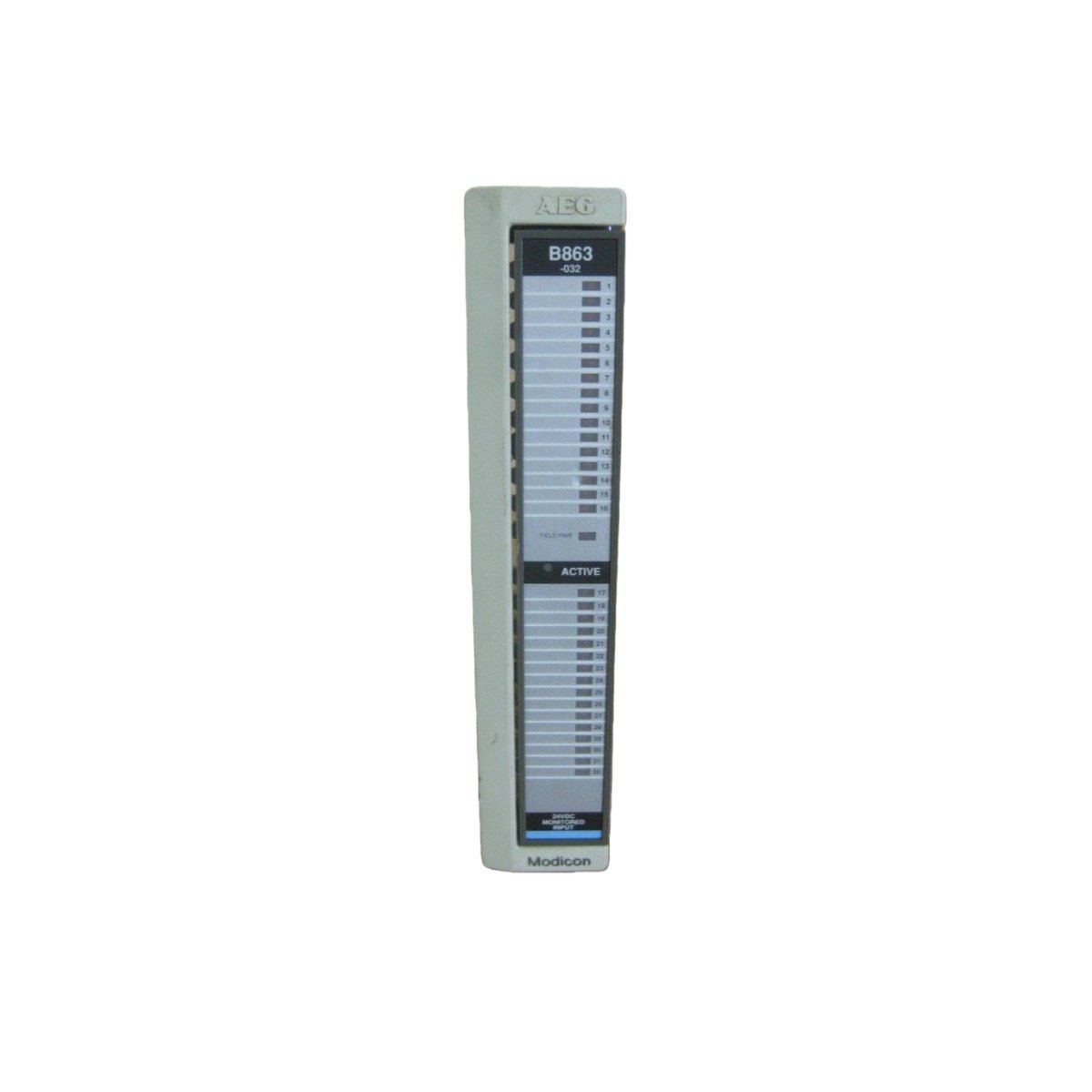

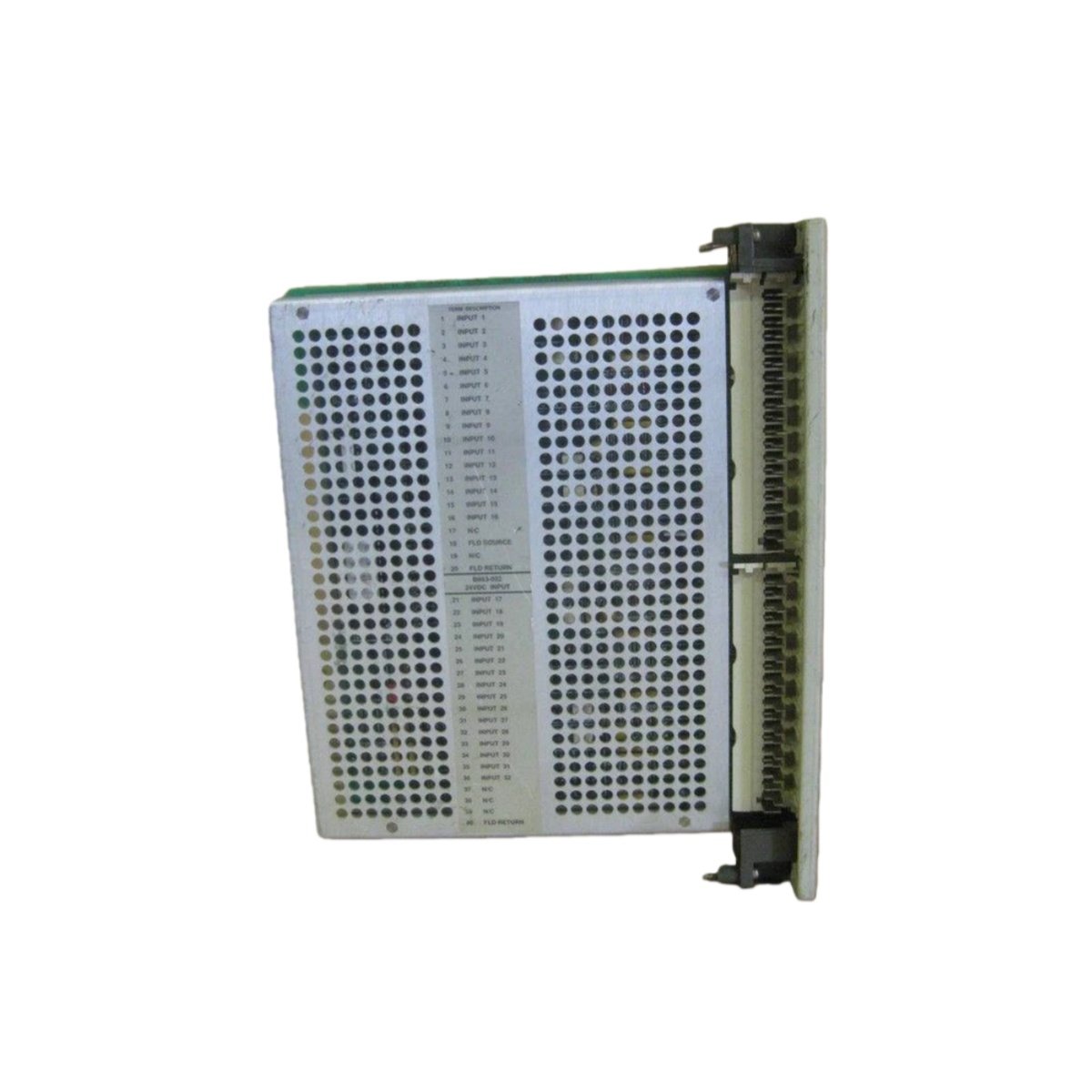

The Schneider ASB863032 is a monitored input module for the Modicon Premium automation platform. This PLC module provides 32 digital inputs with advanced diagnostic capabilities. It monitors each input channel for faults such as short circuits or open circuits . The module’s robust design suits safety-critical and standard industrial applications.

Technical Specifications

The Schneider ASB863032 features 32 digital inputs with a nominal voltage of 24 V DC . Each channel includes short-circuit protection and fault detection . The module’s response time is 3 ms per channel. It operates on a 5 V DC bus with a current draw of 0.8 A and a 24 V DC input current of 0.5 A . The module’s dimensions are 80 mm x 100 mm x 60 mm, and it weighs approximately 0.26 kg . This module supports redundant input monitoring with diagnostic display for each channel using two LEDs .

Key Technical Data

Monitoring and Diagnostic Functions

The Schneider ASB863032 monitors each input’s health status continuously for high system availability . This continuous monitoring detects short circuits and open circuits on the input signal paths . The module includes diagnostics at the channel level, allowing efficient troubleshooting . Users can configure the fault behavior via the associated programming software. The two diagnostic LEDs per channel enable rapid visual fault identification . Consequently, this module reduces mean time to repair (MTTR) significantly .

System Integration and Applications

The Schneider ASB863032 mounts directly into the Modicon Premium rack and connects via the backplane . It integrates with the UNITY Pro programming environment for easy configuration . The module is suitable for safety applications where input monitoring is critical . Its ability to detect wiring faults provides protection for critical equipment and personnel . This module is ideal for applications such as emergency stop systems and machine safety.

​
