Technical Specifications Overview

Functional Overview and Signal Acquisition

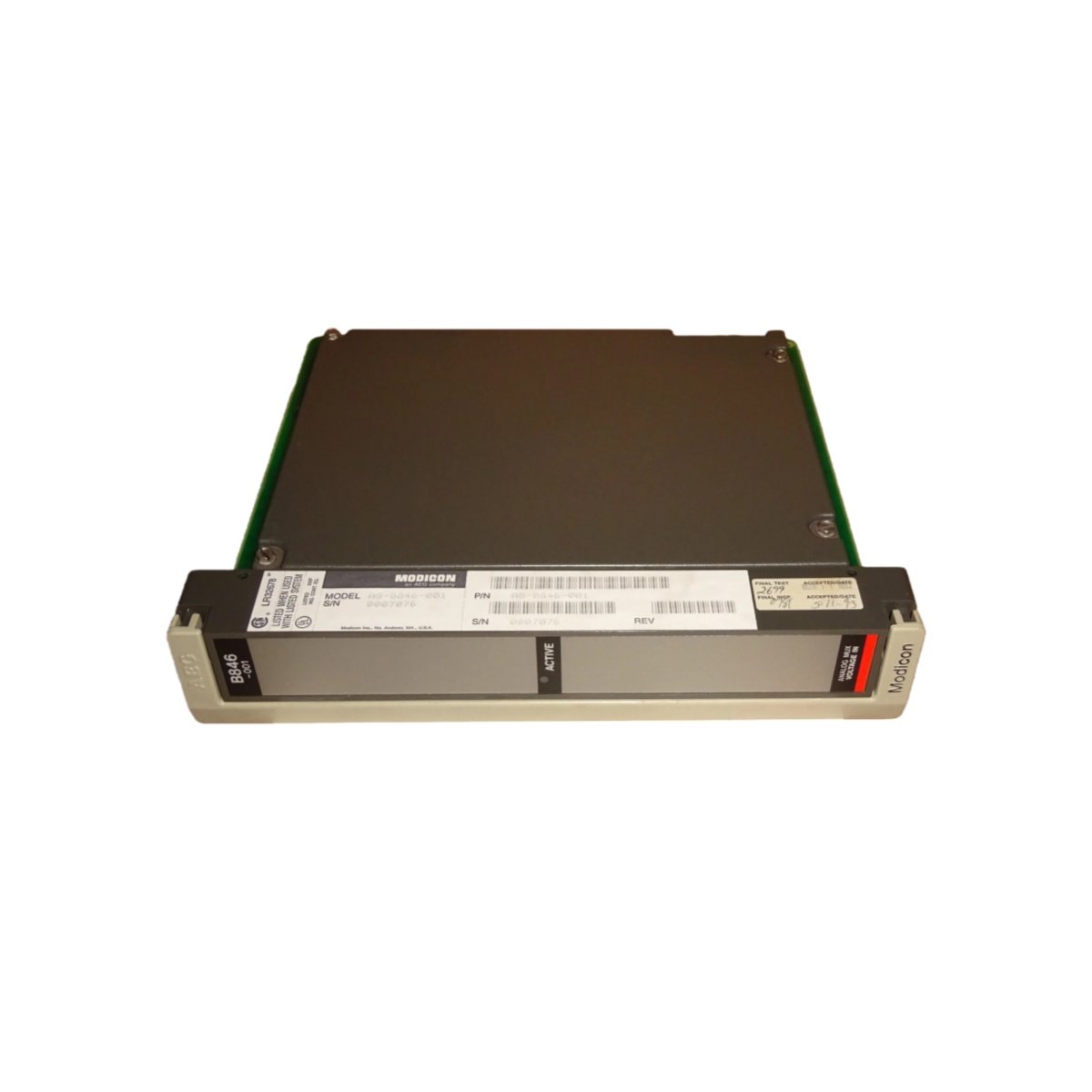

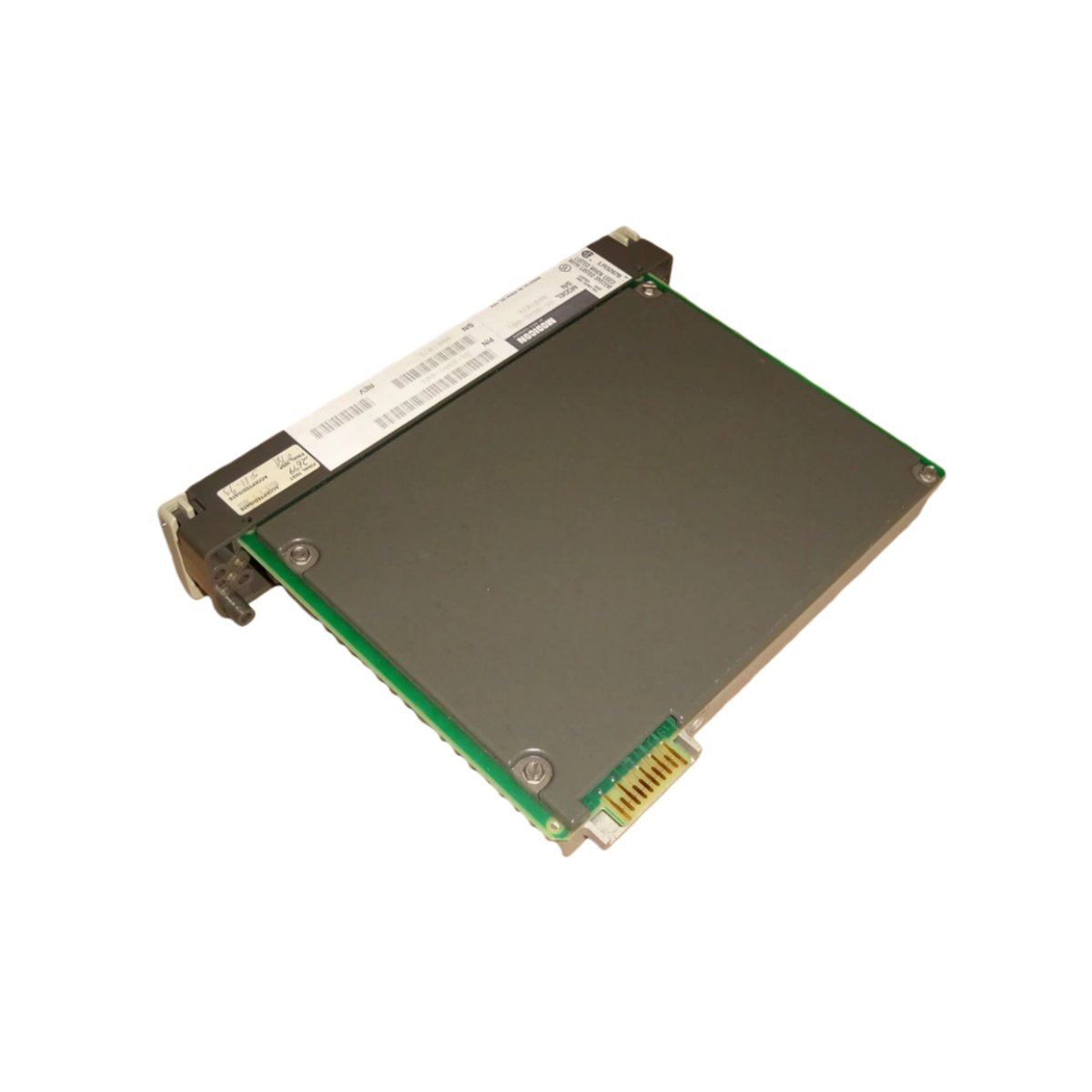

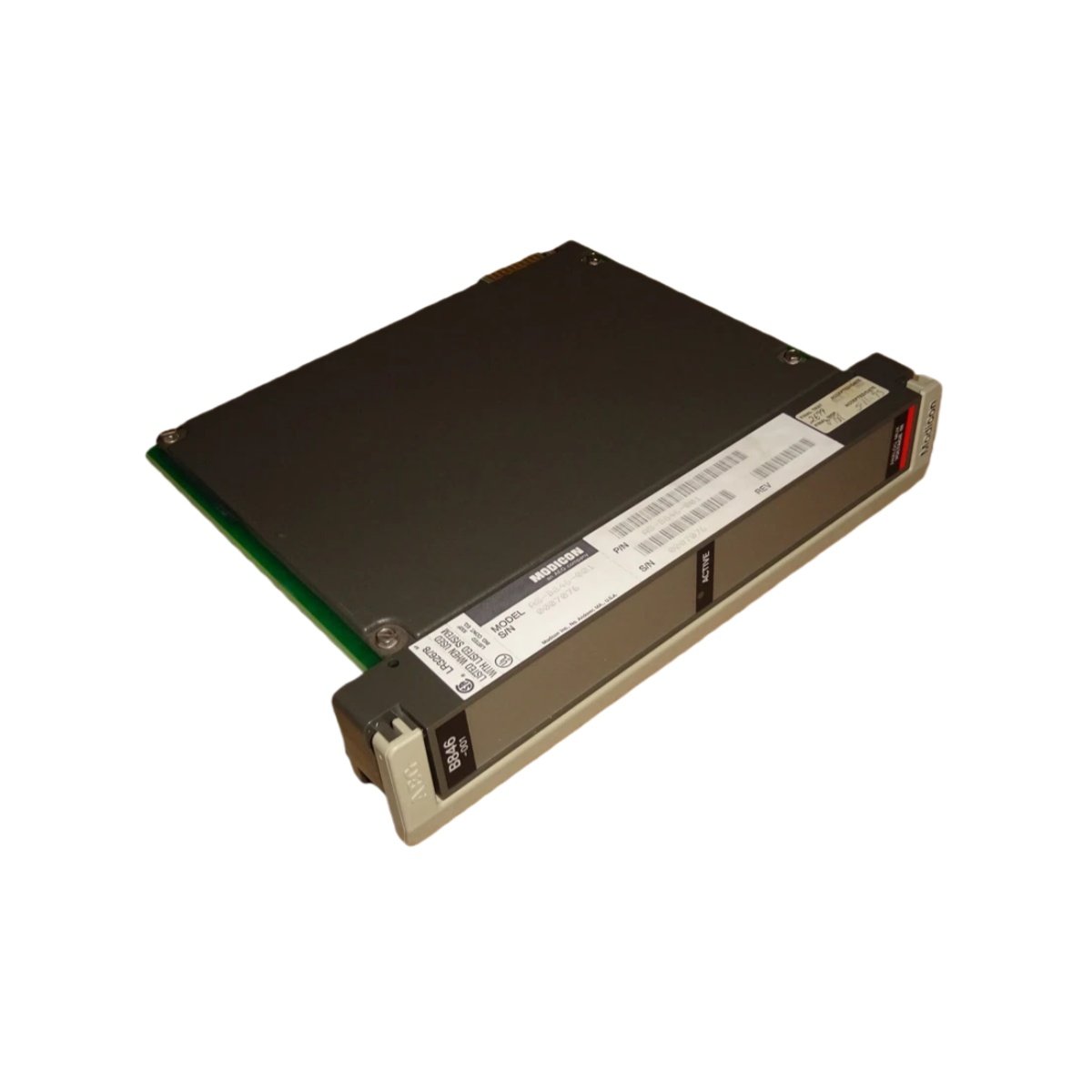

This analog input module provides eight channels for precise process signal measurement. It accepts standard industrial signals from transmitters, sensors, and transducers. The ASB846001 supports both current and voltage inputs for application flexibility. Moreover, the module performs simultaneous sampling on all eight channels simultaneously. This feature ensures accurate phase relationships for multi-variable process monitoring. The 16-bit ADC delivers 15-bit effective resolution for high-precision measurement. Consequently, engineers obtain reliable data for critical control and monitoring applications.

Input Configuration and Signal Selection

The Schneider ASB846001 offers software-selectable input types for easy field adaptation. You can configure each channel independently for 0–20 mA, 4–20 mA, 0–10 V, or ±10 V. This per-channel flexibility accommodates mixed sensor types within a single module. The input impedance automatically adjusts for current or voltage selection. Current inputs use a 250 Ω burden resistor for standard loop compatibility. Voltage inputs present a 100 kΩ load for minimal signal loading. The module also includes filtering for noise rejection in industrial environments.

Performance Characteristics and Accuracy

The module delivers exceptional accuracy with ±0.1% of full scale at 25°C. The 16-bit ADC provides 15 effective bits for high-resolution data. Temperature drift stays within ±50 ppm/°C for stable performance over temperature changes. The sampling rate reaches 100 Hz per channel for dynamic process monitoring. Additionally, the module offers >100 dB common mode rejection for noise immunity. Normal mode rejection exceeds 60 dB at both 50 Hz and 60 Hz. These specifications suit demanding applications in power generation, chemical, and manufacturing industries.

Protection Features and Diagnostic Capabilities

The module includes robust input protection for reliable field operation. Each input withstands overvoltage up to ±30 VDC without damage. Reverse polarity protection prevents wiring errors from destroying the circuitry. The ASB846001 also provides comprehensive diagnostic features for maintenance. It detects overrange and underrange conditions on each channel. Additionally, the module performs open-circuit detection for 4–20 mA current loops. The module communicates all diagnostic data to the PLC for operator notification and alarming.

Physical Architecture and Installation Details

The module measures 45 mm x 120 mm x 75 mm (1.8″ x 4.7″ x 3.0″) and weighs approximately 0.18 kg. Its lightweight construction suits DIN rail mounting in control panels. The front panel provides a removable 20-pin spring clamp terminal block for field wiring. This design simplifies cable replacement without disturbing adjacent wiring. The terminal accepts wire sizes from 0.5 to 1.5 mm². The module mounts on standard DIN rails using the integrated clip mechanism. The compact depth of 75 mm allows installation in shallow enclosures.

Power Supply and Energy Storage Features

The module draws 80 mA from a 24 VDC external power supply. This low consumption suits power-constrained control cabinets. The internal 47 µF capacitor provides ride-through during brief supply interruptions. This capacitance ensures continuous operation during momentary voltage dips. The module also includes input filtering for power supply noise rejection. Reverse polarity protection prevents damage from accidental wiring errors on the power terminals.

System Integration and Configuration

The module connects to the PLC system via the standard backplane bus. Schneider Unity Pro and Concept software provide seamless configuration and programming. Users can assign engineering units and scaling values through the software interface. The module also supports remote configuration for distributed installations. Diagnostics data flows automatically to the PLC for continuous monitoring. The module reports all faults and alarms through the system bus for immediate operator notification.

Environmental Conditions and Certifications

The module operates reliably from 0°C to +55°C ambient temperature. Storage temperatures range from -25°C to +70°C. The unit carries CE, UL, and CSA certifications for global industrial use. Install the module in a clean, dry control cabinet. The module also complies with IEC 61131-2 standards for industrial control equipment. This compliance ensures interoperability with other programmable controller systems.
