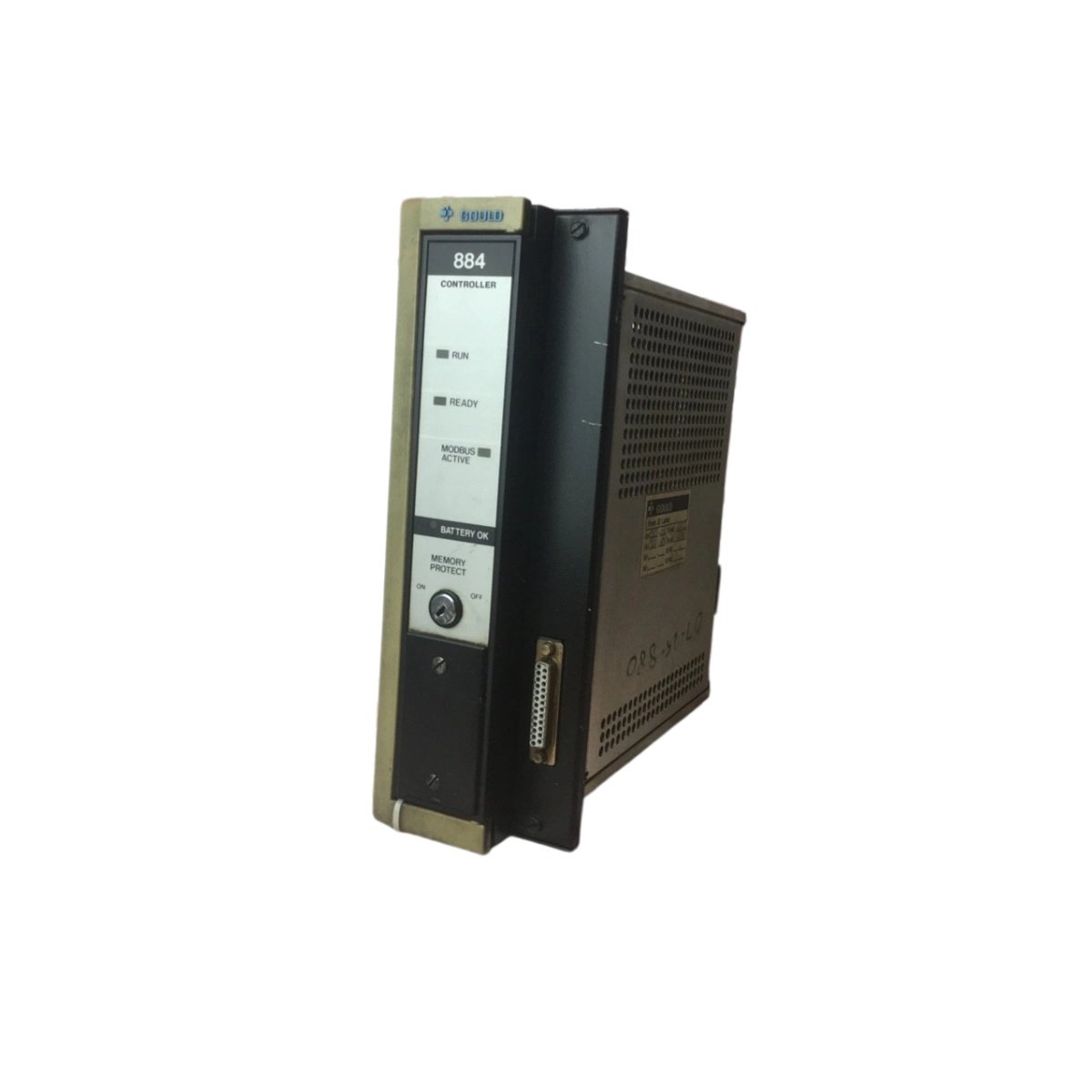

The AS884A301 processor module delivers dependable control for industrial automation systems. This Schneider unit handles complex logic operations across demanding manufacturing environments. Engineers value its robust design for continuous process control applications.
Key Technical Parameters
| Parameter | Specification |
|---|---|
| Product Type | Processor Module |
| Compatibility | Schneider AS Series PLC Systems |
| Interface | Backplane Bus Connector |
| Mounting | Rack-Mounted Chassis |
| Dimensions | 250 mm x 40 mm x 180 mm |
| Weight | Approximately 0.85 kg |
| Component Count | 42 Active Electronic Components |
| Energy Storage | 3.6 V Lithium Backup Battery |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Relative Humidity | 5% to 95%, Non-Condensing |
Functional Architecture
The module integrates a 16-bit microprocessor running at 8 MHz clock speed. Therefore, it executes ladder logic and function block programs efficiently. Furthermore, 128 KB of onboard RAM supports program storage and data handling. Meanwhile, 64 KB of flash memory retains firmware across power cycles.
Interface and Communication
A backplane connector links the AS884A301 directly to the host rack. Consequently, data transfers occur at high speed without external cabling. Additionally, dual status LEDs indicate run, fault, and communication states.
Power and Backup
The module draws 5 VDC at 1.2 A from the system power supply. Moreover, the lithium battery preserves program memory during outages. Consequently, users avoid reprogramming after short power interruptions.
Installation Notes
Operators install the unit into a standard Schneider rack slot. The module occupies one single-width slot, which conserves chassis space. However, technicians should verify firmware revision before commissioning.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
