Reliable Field Wiring Termination for Modicon 800 I/O

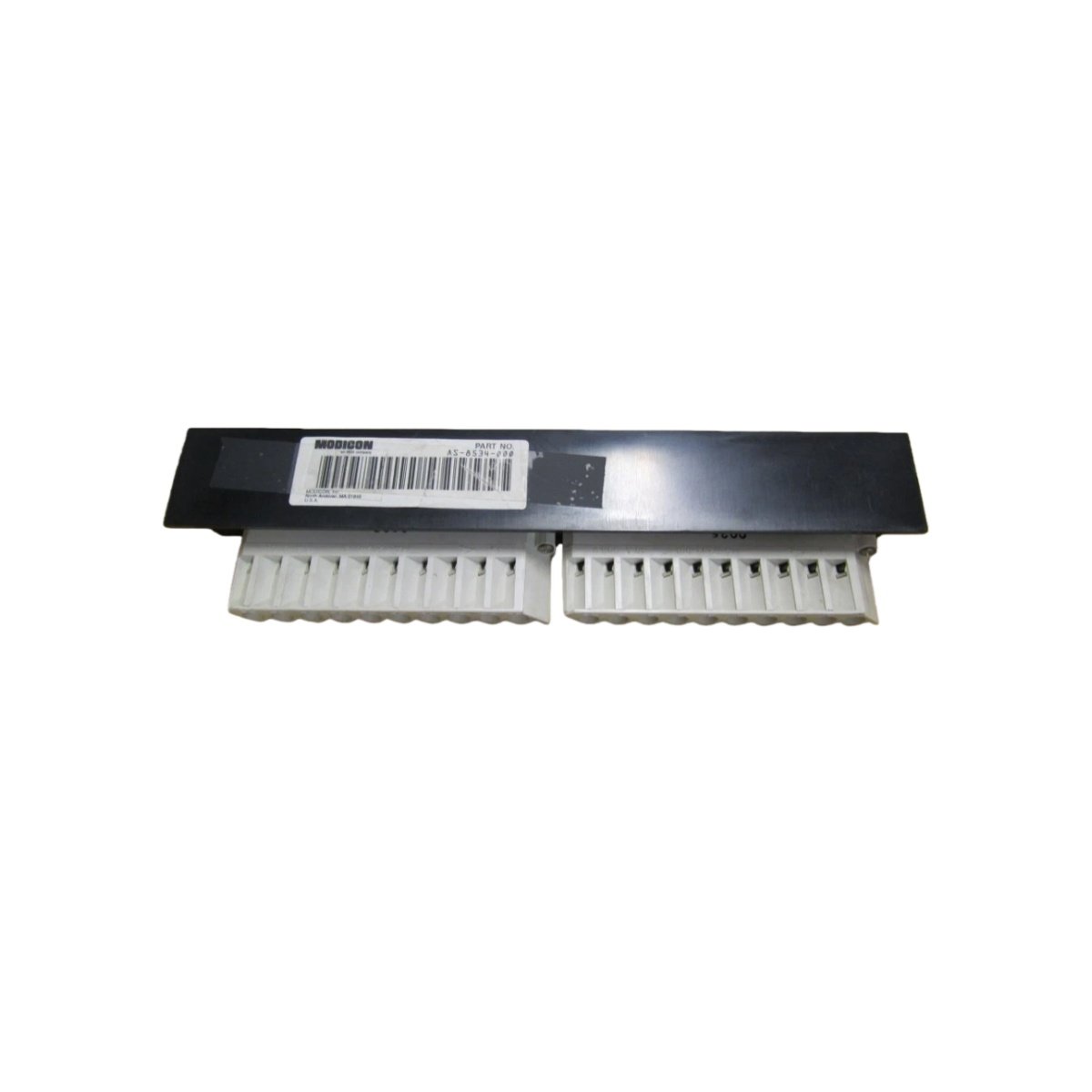

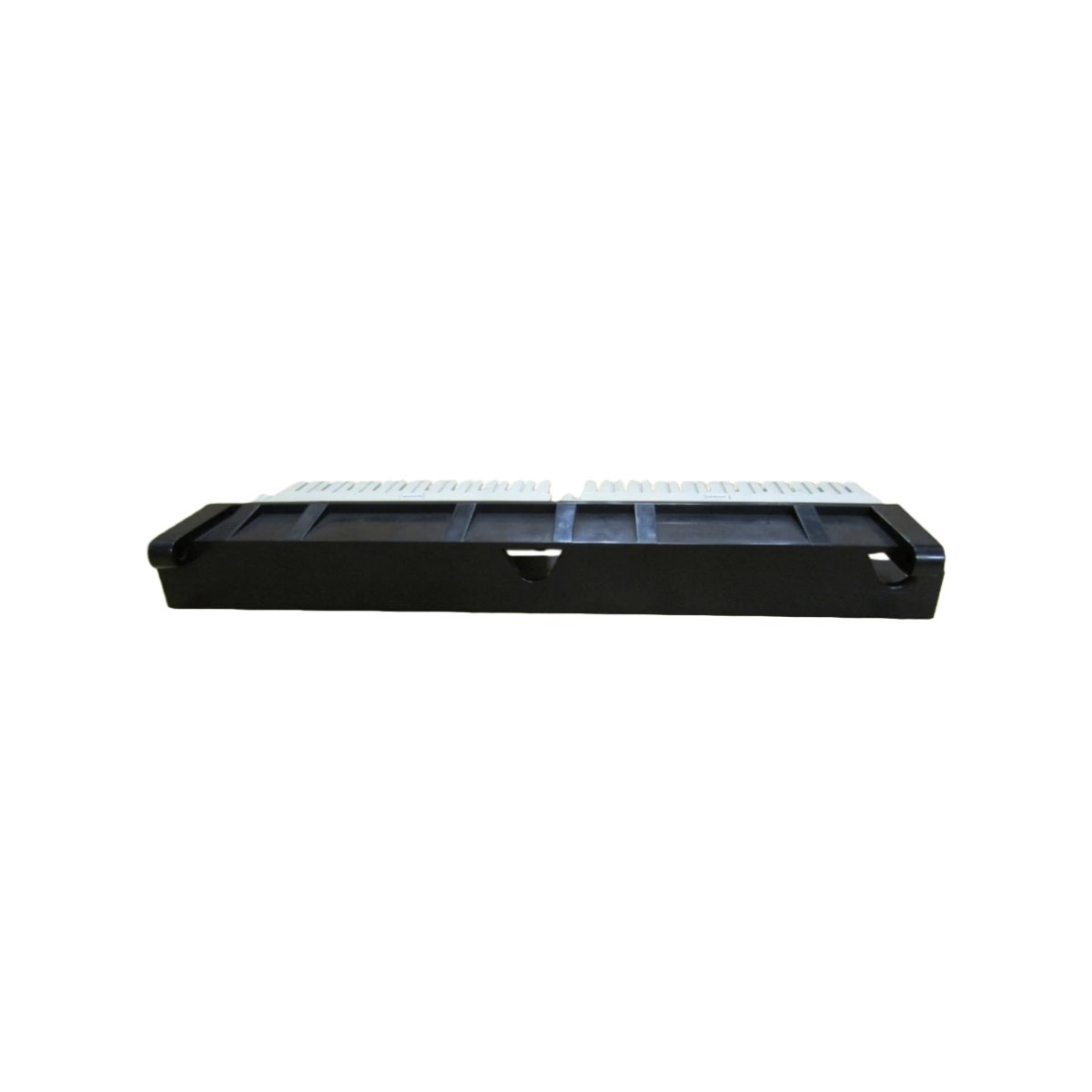

The AS8534000 low-density connector provides a robust termination solution for Schneider Electric’s Modicon 800 Series I/O modules. This 20-pin D-SUB connector simplifies field wiring connections for both discrete and analog signal types . It integrates seamlessly with the 800-Series I/O systems, ensuring dependable signal transmission across your control network .
Technical Specifications
The table below details the key technical parameters for the AS8534000 connector .
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Low-Density I/O Connector |
| Series | Modicon 800 |
| Number of Pins | 20-pin D-SUB configuration |
| Length | 241 mm |
| Width | 76 mm |
| Height | 25 mm |
| Weight | Approx. 0.23 kg (0.50 lbs) |
| Mounting | D-SUB screw lock |
| Compatibility | 800-Series I/O systems |
Installation and Integration
The AS8534000 features a low-density terminal design that greatly simplifies field wiring termination. Its 20-pin configuration supports both discrete and analog signal connections for the 800 I/O series . The compact form factor measures 241 mm in length, 76 mm in width, and 25 mm in height, making it suitable for space-constrained cabinet installations . With a lightweight design of approximately 0.23 kg, this connector adds minimal bulk to your existing control infrastructure .The Schneider AS8534000 20-pin D-SUB low-density connector terminates field wiring for Modicon 800 I/O. Features 241x76x25mm, 0.23kg, and screw-lock mounting.
