Integrated 8-in, 8-out Discrete Control Solution

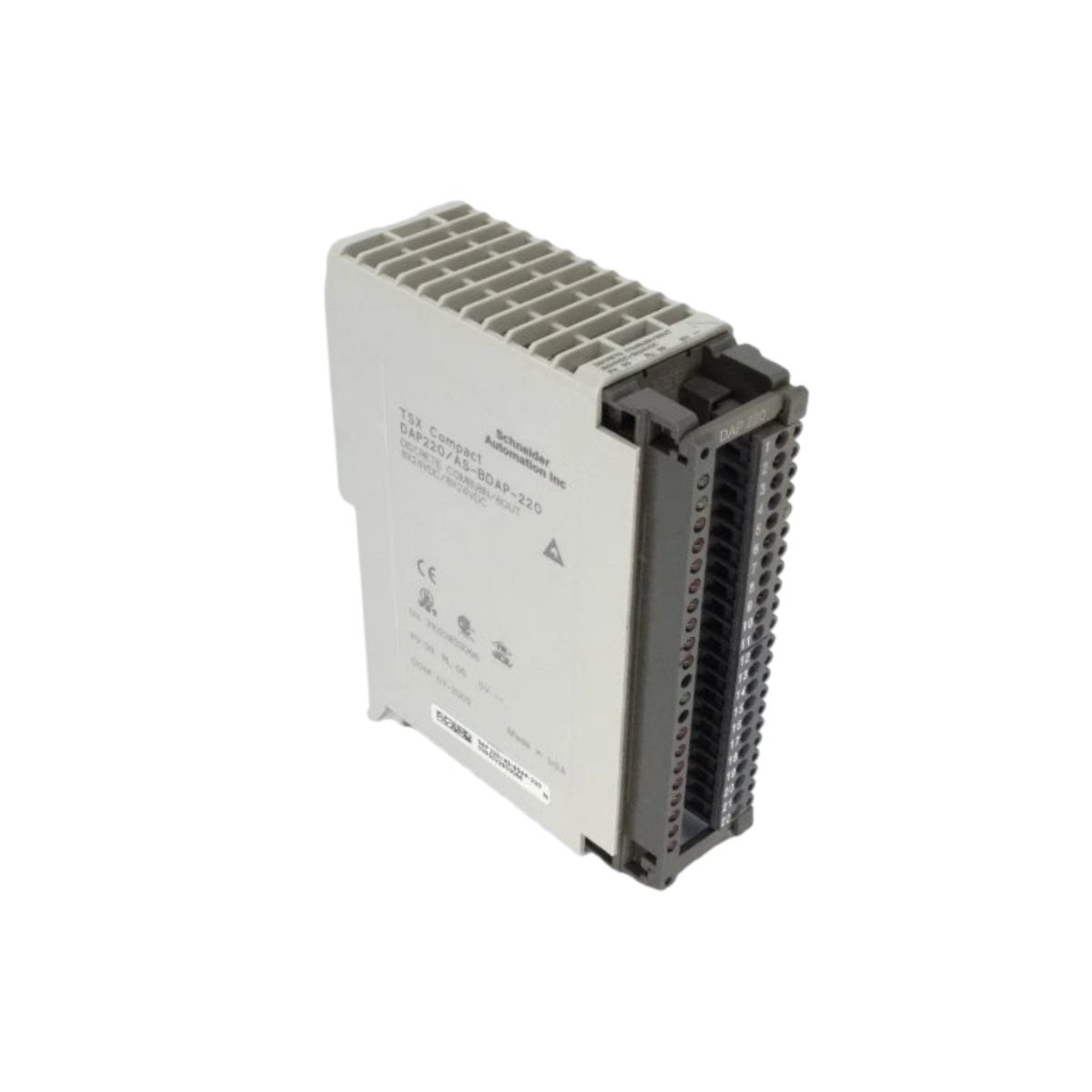

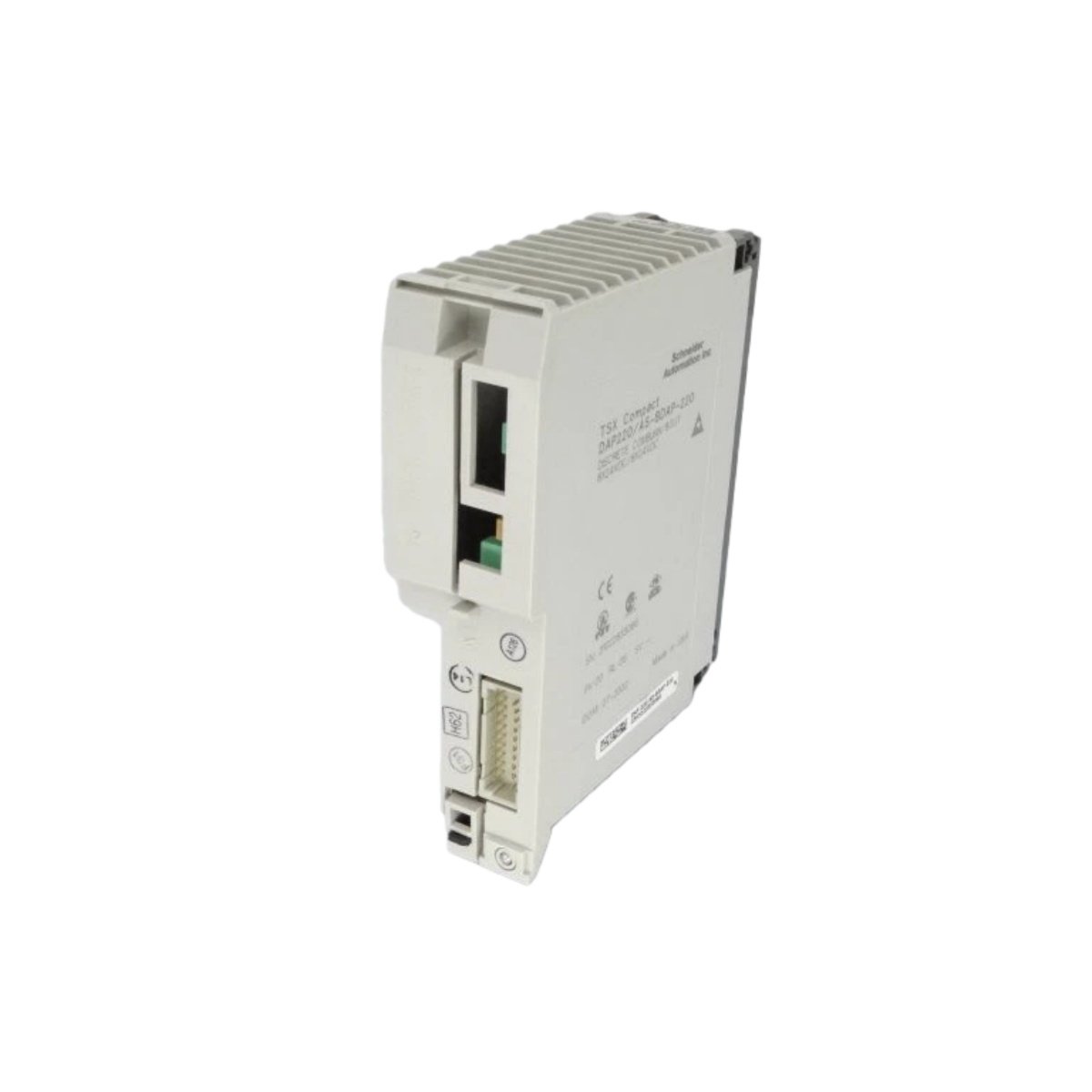

The AS-BDAP-220 module combines eight discrete inputs and eight transistor outputs in a single compact unit . This integrated design saves valuable rack space and simplifies wiring within control cabinets. It belongs to the Schneider A120 product line and serves as a versatile I/O solution for Modicon PLC systems . The module provides optoelectrical isolation for all channels, effectively protecting signals from electrical noise interference .

Voltage, Current, and Performance Specifications

The AS-BDAP-220 accepts an input voltage range of 20 to 30 V DC, with 24 V DC representing the true high state . For outputs, it supports positive voltages from 12 to 30 V DC and negative voltages from -2 to +5 V DC . Each output channel delivers 2 A continuous current and handles 4 A surge current . Moreover, the module achieves an input response time of 6 ms and an output response time of 10 ms . It draws only 1 A continuous current for output consumption.

Physical Dimensions, Weight, and Environmental Ratings

This module weighs approximately 0.45 kg (1.00 lb) and measures 10.2 x 25.4 x 5.1 cm, fitting standard panel-mount installations . It operates reliably across a wide temperature range from -25°C to +60°C and stores safely from -40°C to +85°C . The module also tolerates 5% to 95% relative humidity without condensation, ensuring stable performance in diverse industrial settings . It holds CE, UL, and CSA certifications, confirming compliance with international safety standards .
