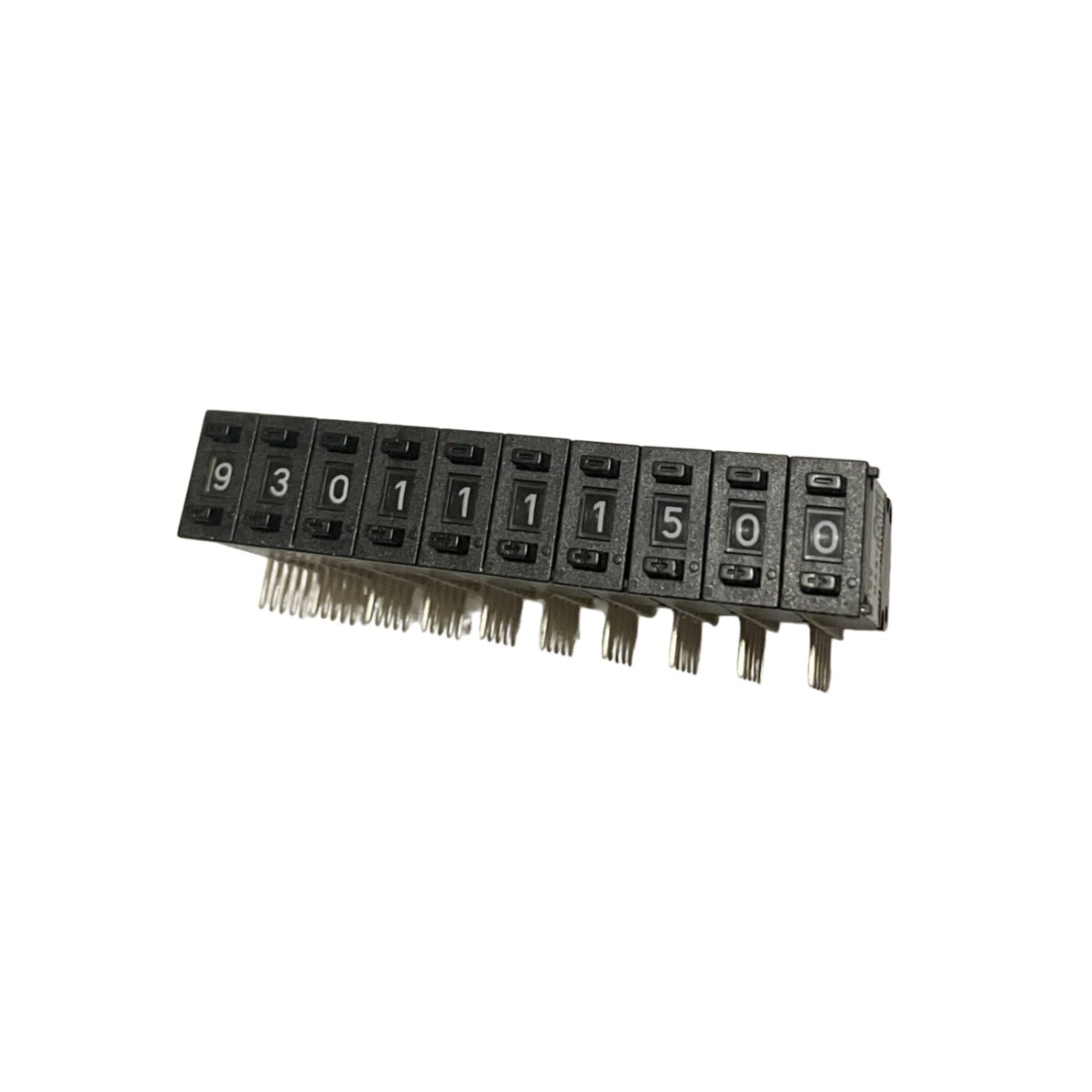

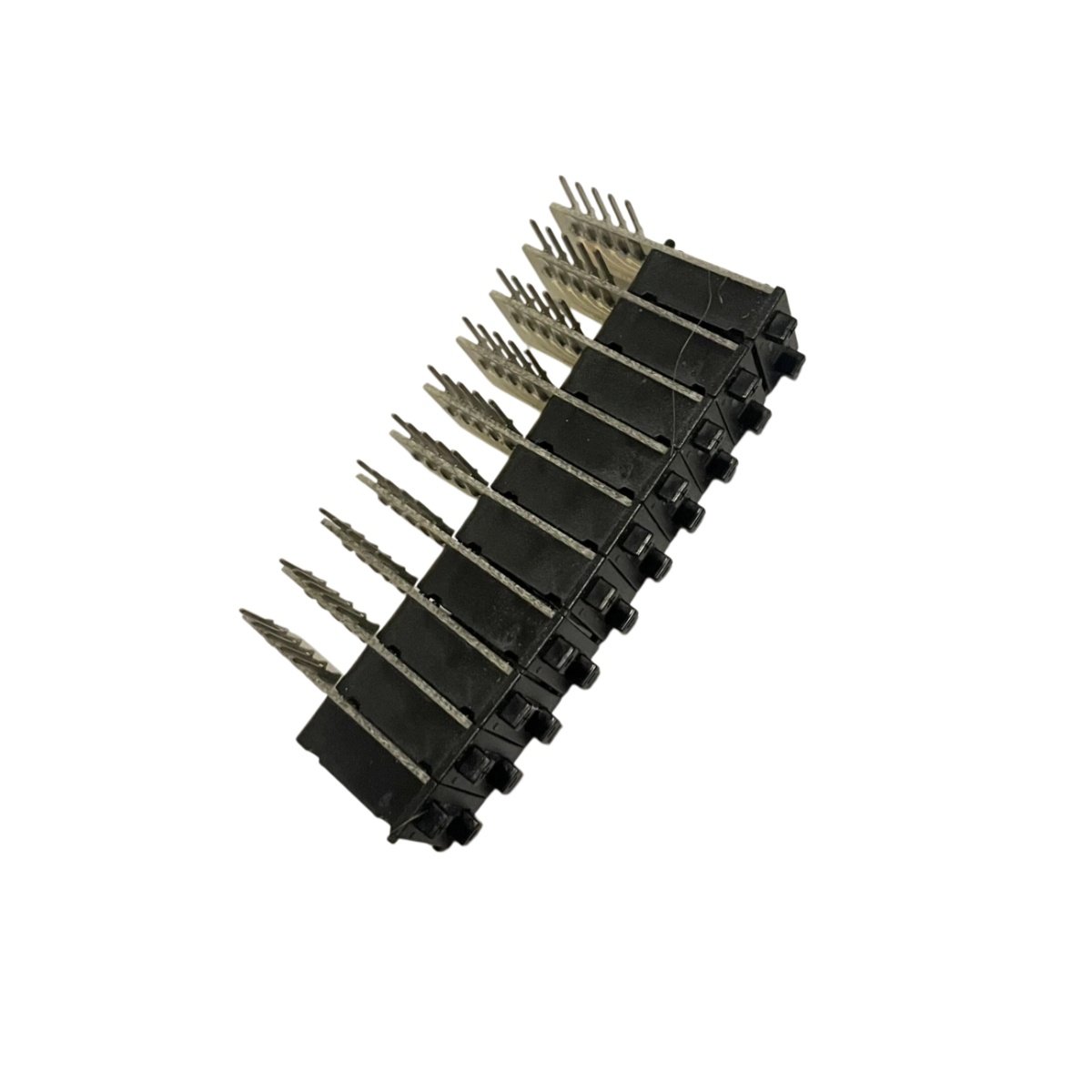

The ALU 131 pushwheel switch delivers precise manual input for industrial automation environments. Schneider Electric engineered this mechanical rotary switch to withstand demanding operational conditions. Engineers rely on its ergonomic design and consistent performance across countless applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ALU 131 |
| Series | RMS-TSG-TZ-C |
| Category | Pushwheel Switch |
| Switch Type | Mechanical rotary pushwheel |
| Actuation Force | 1.8–2.2 N |
| Rotation Angle | 30° per step |
| Mounting Type | Panel mount |
| Dimensions | 61 x 61 x 46 mm |
| Weight | 0.16 kg |
| Contact Material | Silver alloy |
| Electrical Rating | 10 A, 250 VAC |
| Operating Temperature | -20°C to +70°C |
| Life Cycle | 1,000,000 operations |
| Certifications | CE, UL, RoHS |
Design Features and Benefits
This pushwheel switch features an ergonomic actuator that reduces operator fatigue during repeated adjustments. The compact housing integrates seamlessly into control panels and machinery enclosures. Additionally, high-quality materials resist mechanical wear and corrosion effectively.
The ALU 131 provides accurate, repeatable input control for parameter settings and numeric entry. Its silver alloy contacts ensure low-resistance switching and stable electrical performance. Consequently, the switch maintains reliable operation throughout its extended service life.
Applications and Compatibility
This switch works directly with Schneider RMS-TSG-TZ-C series modules for modular automation. It suits measurement instrumentation, data programming, and count controlling tasks. Furthermore, the panel-mount design simplifies installation in new and retrofit systems.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
