Cable Assembly and System Integration

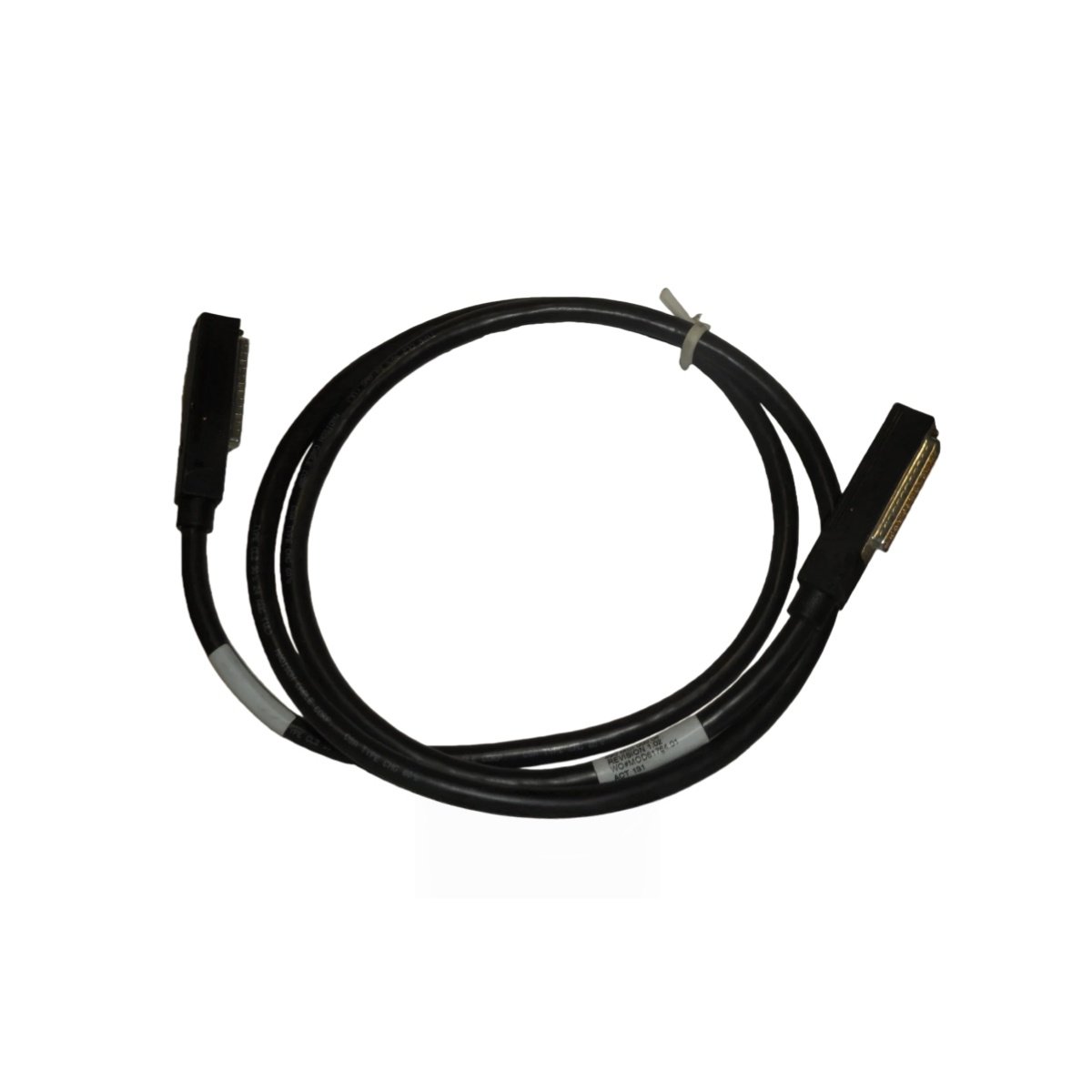

This cable module provides a complete wiring solution for Schneider Quantum I/O systems. It features a 50-pin ribbon cable with pre-terminated connectors on both ends. The assembly transmits digital and analog signals between modules and termination panels. Its flexible construction simplifies routing through cabinets and cable ducts. Consequently, this module reduces installation time and ensures reliable signal transmission.

Technical Specifications

Signal Integrity and Electrical Performance

The 690MCI00006 maintains consistent 100 Ω impedance for reliable signal transmission. Its low capacitance design minimizes distortion on high-speed data lines. Adjacent conductors experience negligible crosstalk due to controlled dielectric properties. This cable supports both analog measurement signals and digital communication buses. Consequently, it provides clean signal transfer between system components.

Connector Design and Contact Quality

Each connector features a metal backshell for improved mechanical strength. Gold-plated contacts ensure low contact resistance and excellent signal fidelity. The connectors include jack-screws for secure mating with panel receptacles. These jack-screws prevent accidental disconnection due to vibration. Each pin maintains reliable contact even after repeated insertion cycles.

Physical Characteristics and Handling

This cable module measures 1.5 meters from connector to connector. Its flat ribbon design allows for easy folding and shaping inside cabinets. The cable remains flexible at low temperatures for convenient installation. Its lightweight construction reduces strain on connected components. Plan cable routing to avoid sharp bends or excessive tension.

Installation and Routing Recommendations

Route the cable through designated cable trays or ducting channels. Secure the cable using nylon cable ties at regular intervals. Leave sufficient service loops for future maintenance access. Mate each connector carefully to avoid bending any pins. Tighten the jack-screws to lock the connection securely.

Compatibility and System Integration

This cable interfaces directly with Schneider Quantum I/O modules and termination boards. It serves as a key connection between modules and field termination assemblies. The cable works with both digital and analog I/O configurations. Verify the correct cable length before installation. This module replaces equivalent Schneider part numbers without modification.

Storage and Handling Precautions

Store the cable in a clean, dry environment away from direct sunlight. Avoid stacking heavy objects on top of the cable assembly. Protect the connectors with dust caps during storage. Handle the cable gently to prevent insulation damage. Inspect the connectors for bent pins before each use.
