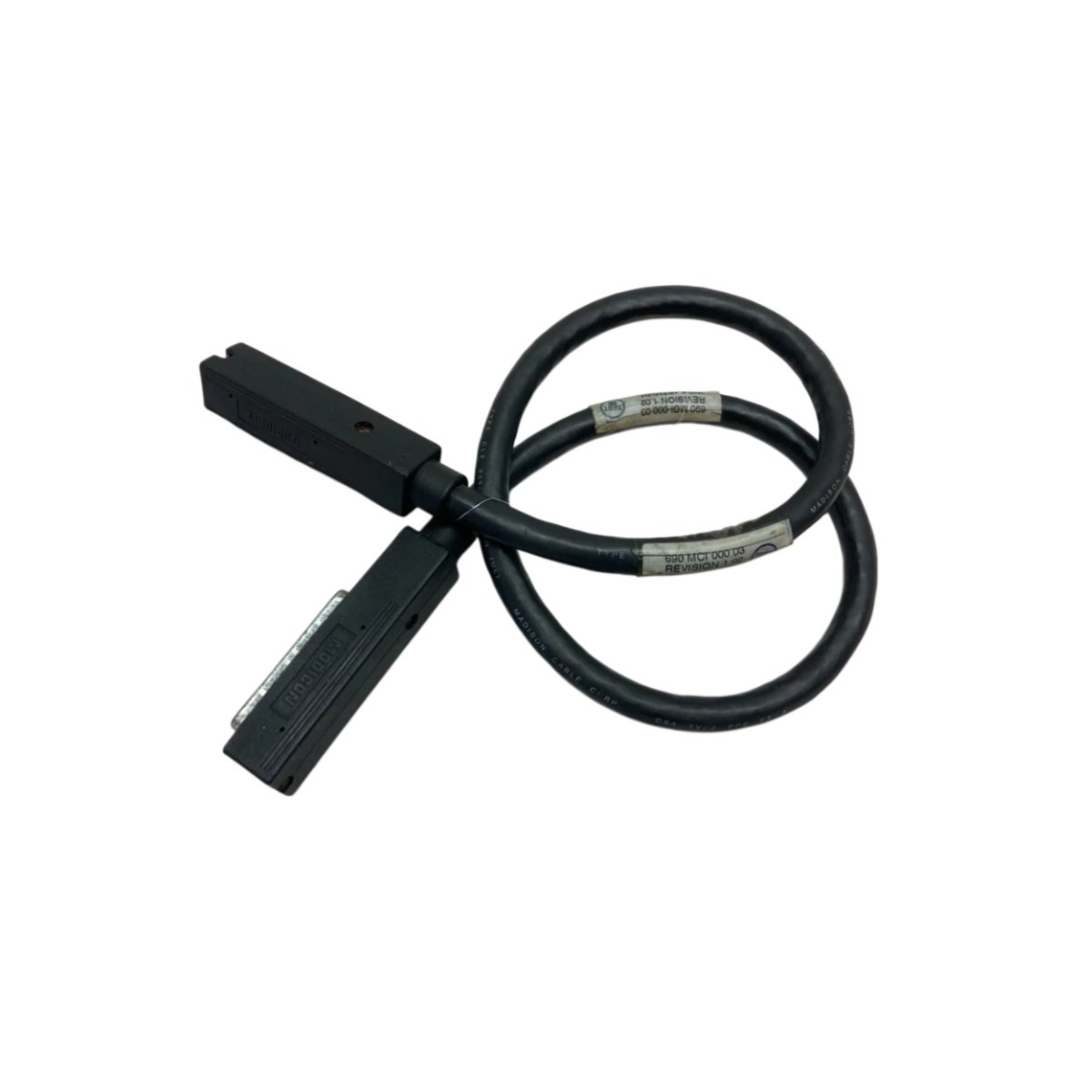

The Schneider 690MCI00003 durable cable carries control signals between modules within Schneider automation platforms. Engineers choose this cable for reliable data transmission in electrically noisy plant environments. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

This cable ships with factory-terminated connectors at both ends. It measures roughly 3 meters in length, 8 mm in diameter, and weighs about 0.4 kg. Moreover, the jacket resists oil, moisture, and mechanical abrasion.

Functional Capabilities and System Integration

The cable transmits control signals while shielding conductors from electromagnetic interference. Meanwhile, the factory-terminated connectors reduce installation time and wiring errors. A rugged jacket protects internal wires, therefore the cable endures demanding plant conditions.

Additionally, the design supports routing through cable trays and conduit runs. As a result, technicians complete field wiring quickly during commissioning. Clear connector keying prevents incorrect mating with module ports. Flexible construction also allows tight bends inside crowded cabinets.

Installation and Maintenance Guidelines

Technicians should route the 690MCI00003 cable away from high-voltage power lines. Afterward, verifying connector seating confirms reliable signal transfer between modules. Periodic inspection of the jacket prevents cuts and moisture damage. Finally, consult Schneider documentation for pin assignments and compatible module pairings.
