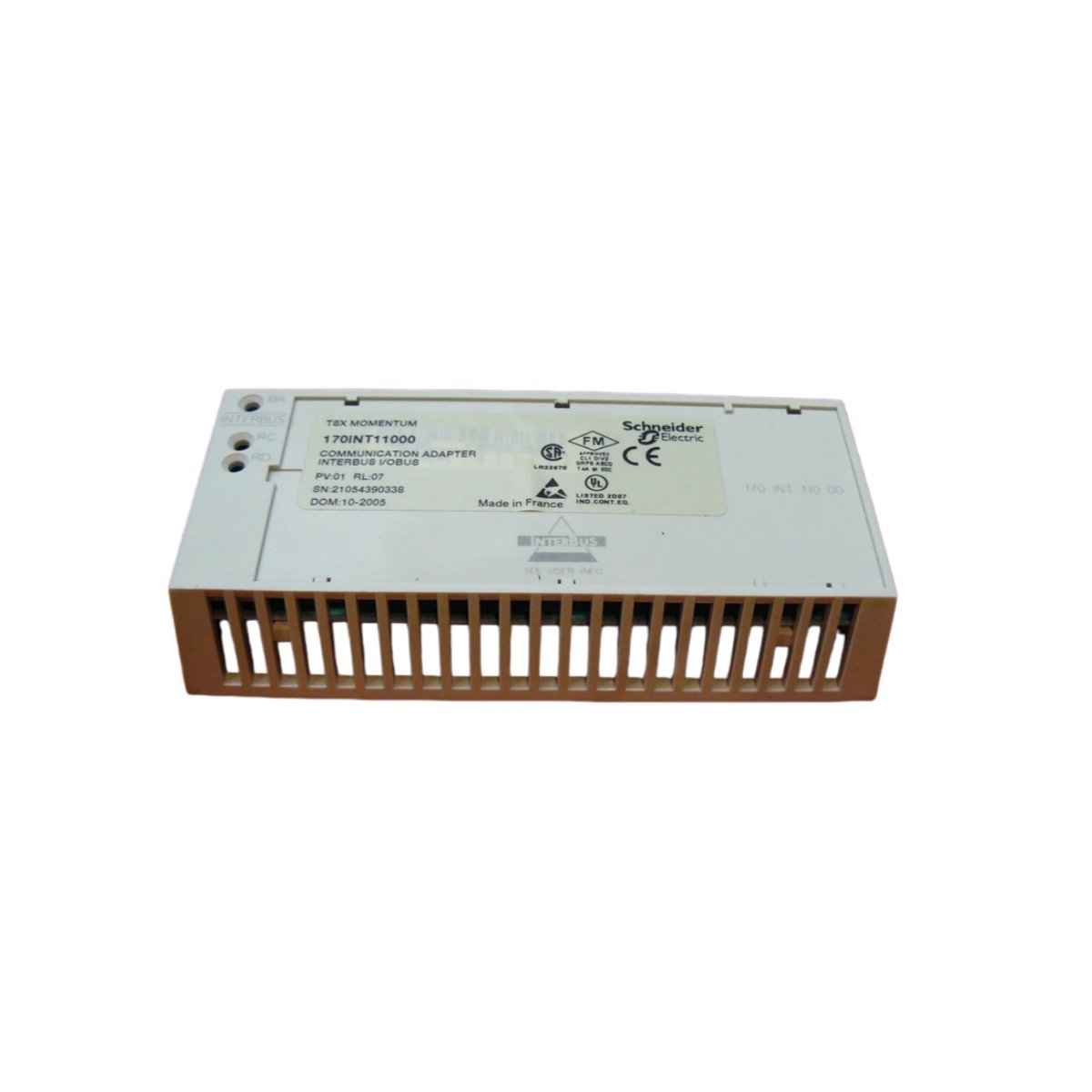

Interbus Interface Adapter for Momentum I/O Systems
The 170INT11000 serves as a dedicated Interbus communication adapter within Schneider Electric’s Modicon Momentum platform. Engineers deploy this unit to connect Momentum I/O bases with Interbus master controllers. Consequently, the module enables fast deterministic data exchange across distributed automation networks.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 170INT11000 |
| Manufacturer | Schneider Electric |
| Series | Modicon Momentum |
| Product Type | Interbus Communication Adapter |
| Network Protocol | Interbus (DIN 19258) |
| Data Transfer Rate | 500 kbit/s |
| Interface Type | Remote Bus, 2 × 9-pin SUB-D |
| I/O Words per Node | Up to 32 words |
| Power Supply | 24V DC |
| Current Consumption | 100 mA typical |
| Operating Temperature | 0°C to +60°C |
| Weight | 0.20 kg |
| Mounting | Momentum I/O Base |
| Certifications | CE, UL, CSA |
Network Performance
The adapter supports the Interbus protocol with a fixed data rate of 500 kbit/s. This deterministic network handles up to 32 words of process data per node. Therefore, the 170INT11000 delivers predictable cycle times for time-critical control loops.
System Integration
Engineers snap the adapter onto any standard Momentum I/O base unit. Two 9-pin SUB-D connectors provide incoming and outgoing remote bus wiring. Additionally, the module supplies automatic baud rate detection and comprehensive LED diagnostics for rapid commissioning.Schneider 170INT11000 Modicon Momentum Interbus communication adapter. 500 kbit/s, 24V DC, 32 words per node, 0.20kg, CE/UL/CSA. Network interface specs.
Details
| Weight | 0.15 kg |
|---|---|
| Dimensions | 110 × 72 × 38 mm |
