Reliable Control for Actuator and Load Management

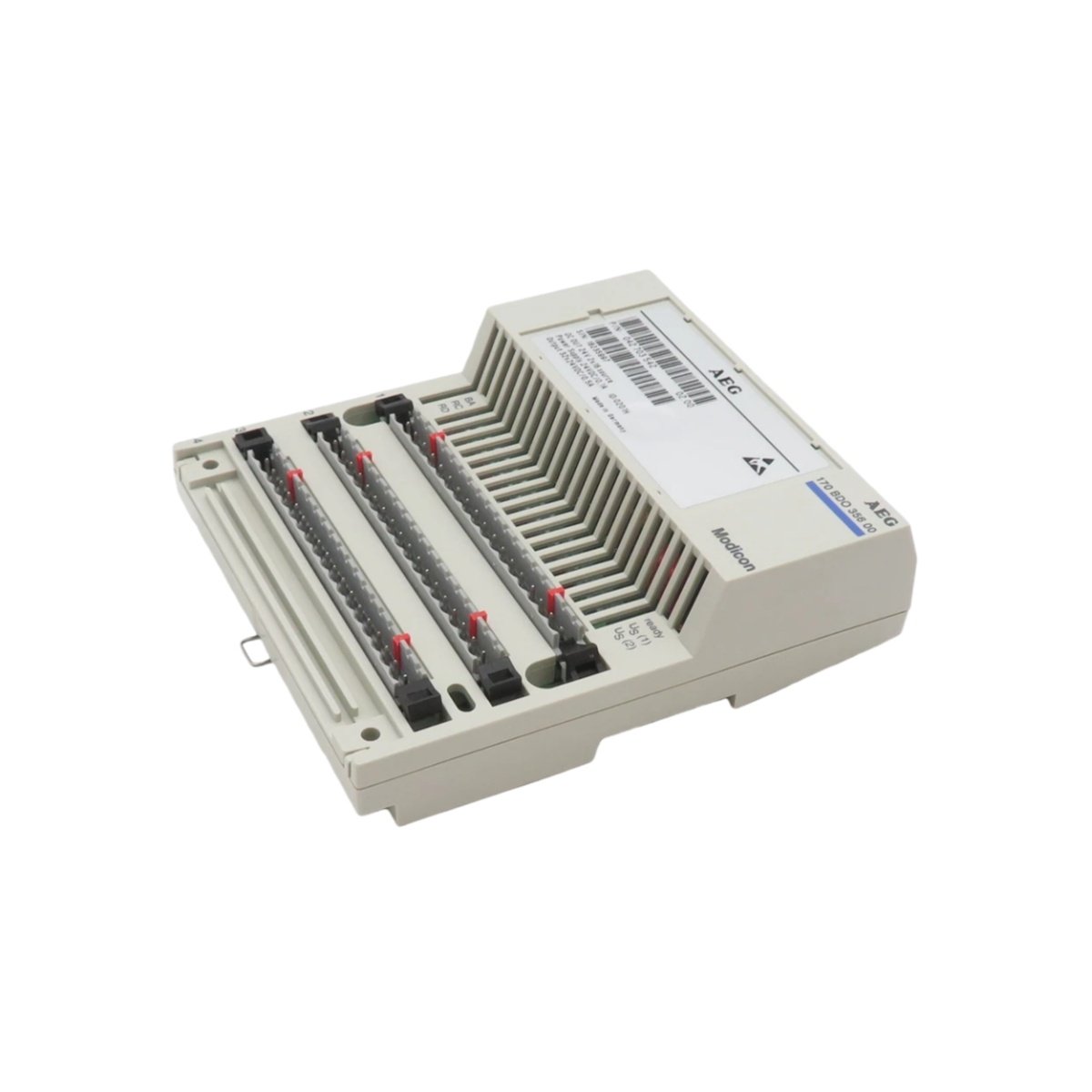

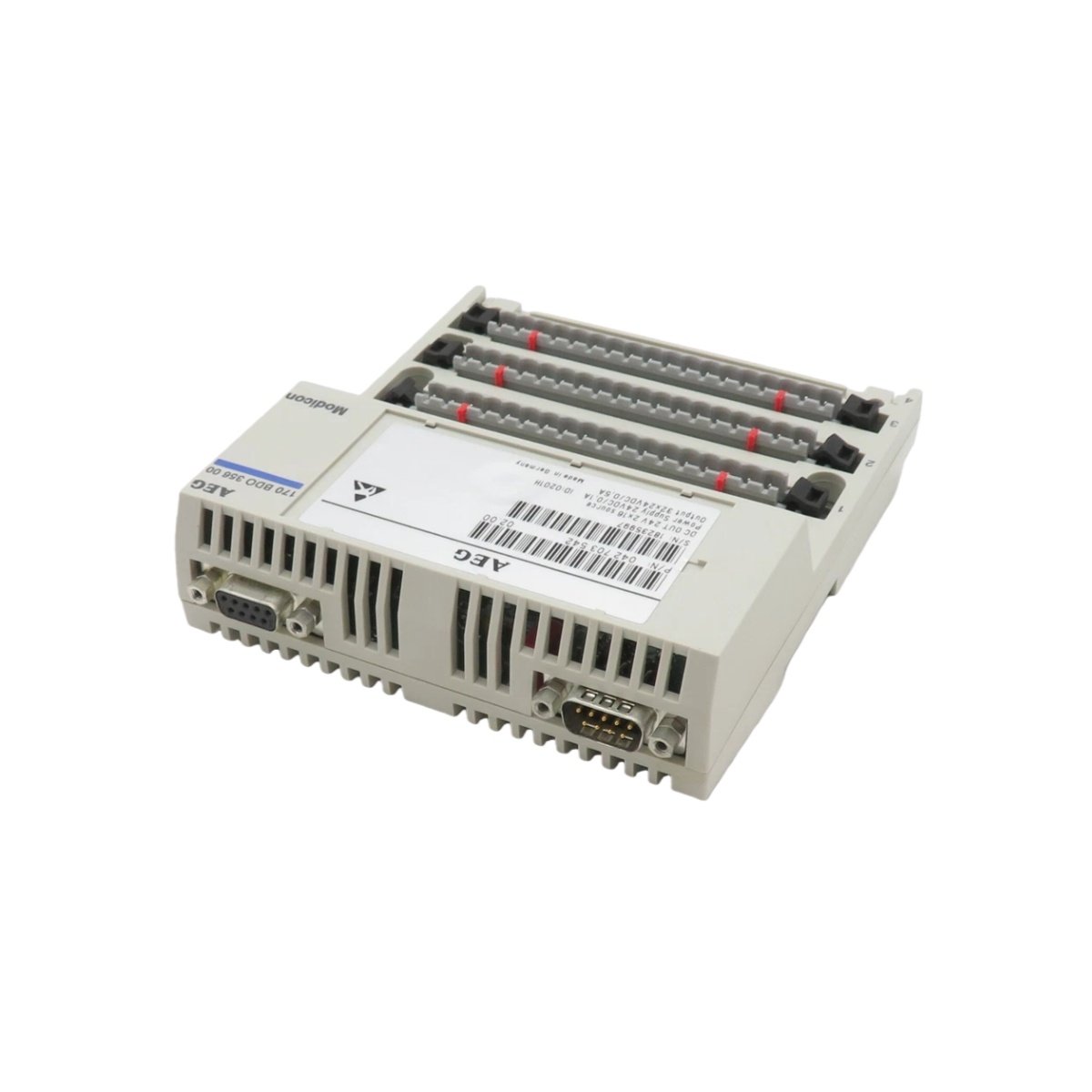

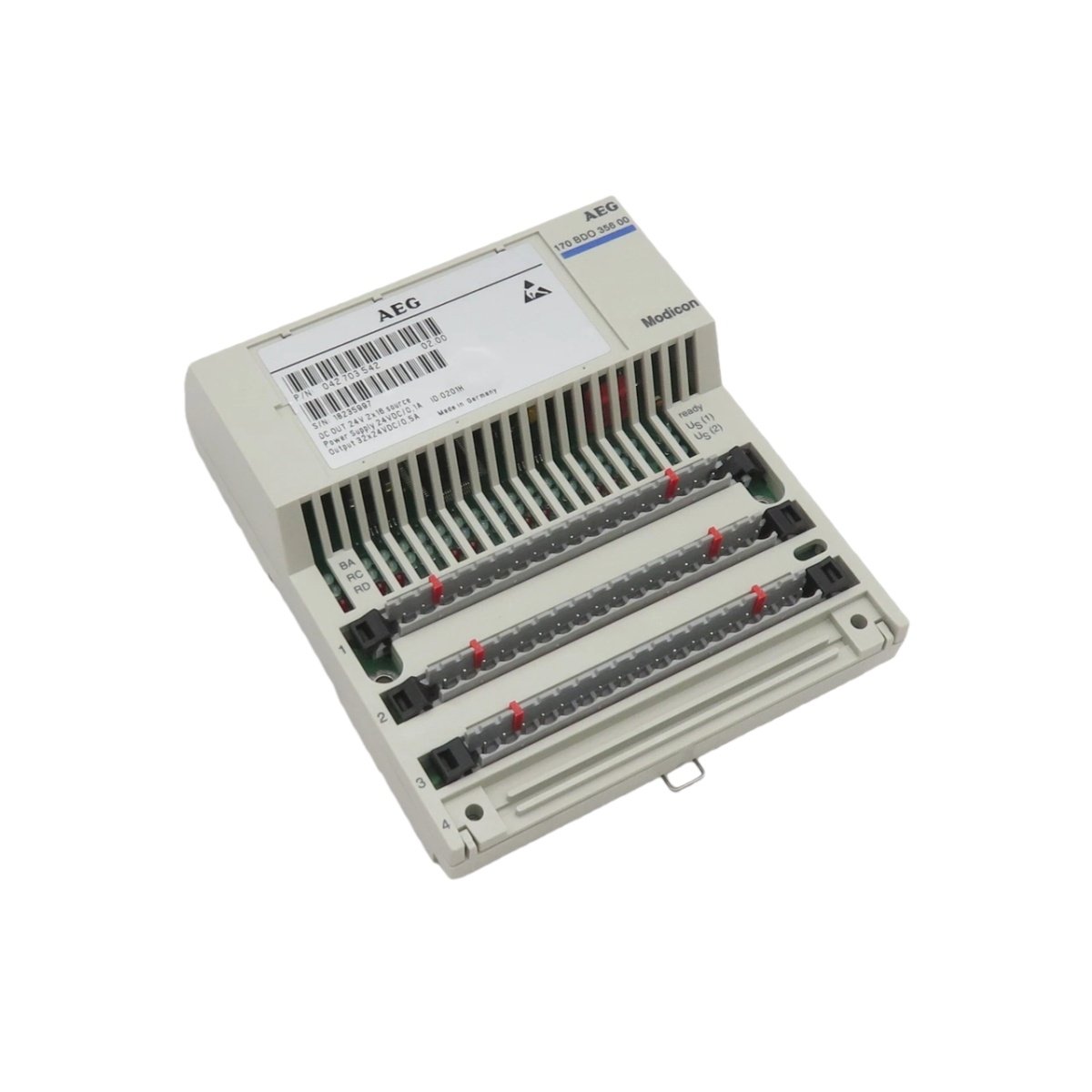

The Schneider 170 BDO 356 00 discrete output module provides 32 digital output channels for controlling field devices in Momentum automation systems. Each channel delivers 0.5A output current at 24V DC, suitable for driving solenoids, relays, and indicator lamps. This module features built-in short-circuit protection per channel, safeguarding the outputs from wiring faults. A common supply voltage of 24V DC powers all outputs, simplifying wiring and reducing terminal connections. Individual LED indicators display the ON/OFF status of each output channel for immediate visual feedback. Furthermore, the module’s design ensures fast switching speeds up to 1 kHz for demanding motion applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Output Module |
| Product Line | Momentum Series |
| Output Channels | 32 digital outputs (sourcing) |
| Output Voltage | 24V DC (range: 20.4-28.8V DC) |
| Output Current | 0.5A per channel (8A total) |
| Output Protection | Short-circuit and thermal protection |
| Switching Frequency | Up to 1 kHz (resistive load) |
| Supply Voltage | 24V DC ±20% |
| Power Consumption | 200 mA typical (without load) |
| Electrical Isolation | 500V between field and logic |
| Status Indicators | 32 green LEDs for output status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 100 x 70 x 62 mm |
| Weight | 0.35 kg |
| Mounting | DIN-rail |
| Wiring Type | 26-pin connector |
| Certifications | CE, UL, CSA |
| Product Origin | France |
Performance and Integration Benefits
The Schneider 170 BDO 356 00 allows precise and rapid control of various output devices in industrial environments. Engineers favor this module for applications requiring multiple discrete outputs, such as packaging machinery and conveyor sorting systems. Its capability of driving loads at 0.5A per point makes it versatile for controlling smaller actuators and signal lamps. The module’s configuration options include output default states for fail-safe operation during communication loss. Consequently, plant operators experience reduced downtime and simpler troubleshooting.
