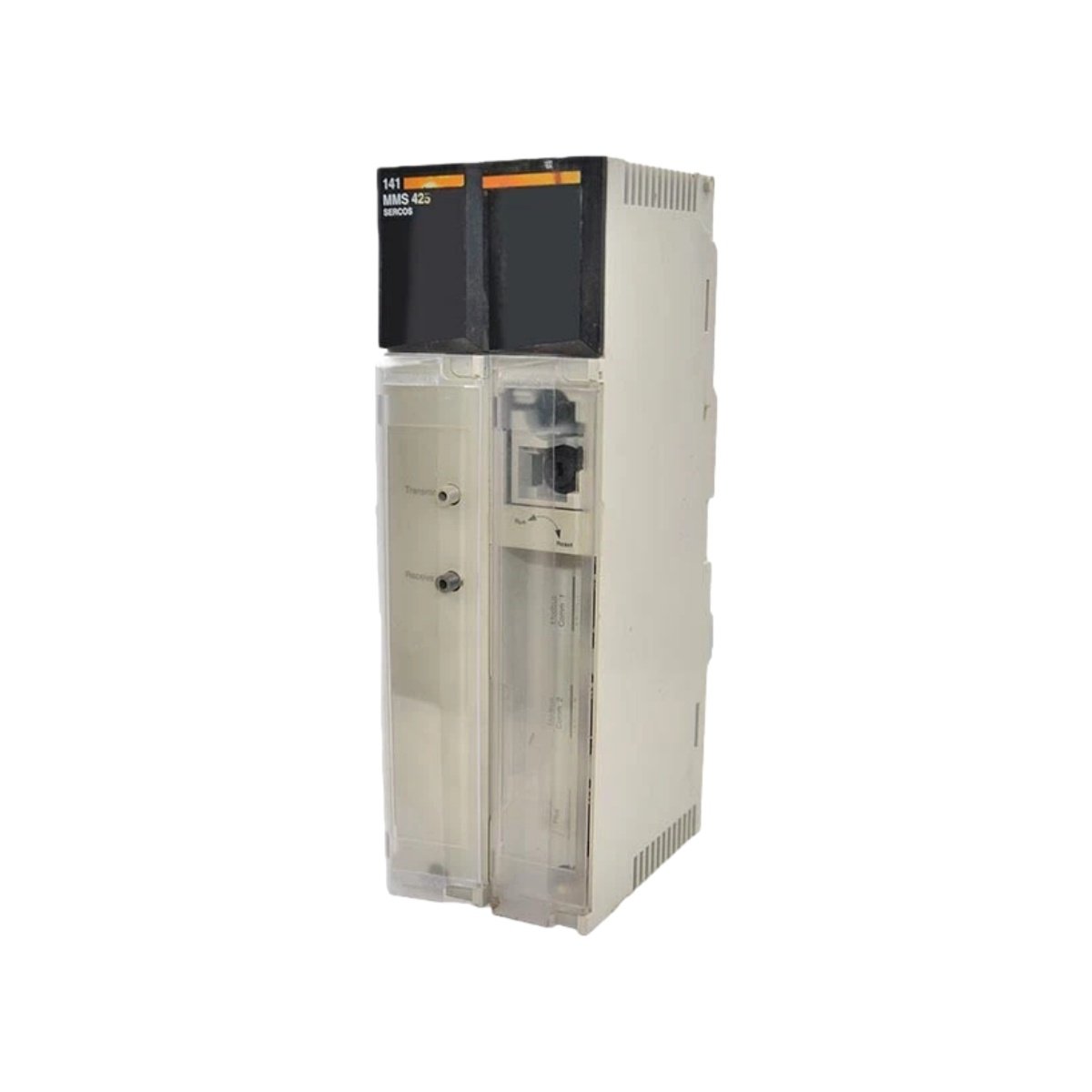

This Schneider servo controller delivers precise motion control for demanding automation applications. The SCHNEIDER 141MMS42501 manages position, speed, and torque with exceptional accuracy. Its advanced architecture ensures smooth operation across varying load conditions. This controller suits robotics, packaging, and machine tool applications.
Physical Dimensions and Mounting Specifications
The controller measures 310 mm in height and 80 mm in width. Its overall depth reaches 210 mm including the heatsink and connectors. This unit weighs approximately 3.2 kilograms for stable installation. The housing features a rugged metal casing with integrated cooling fins. The SCHNEIDER 141MMS42501 supports both DIN rail and panel mounting methods. A 26-pin front connector handles all signal and power wiring.
Power and Output Specifications
This controller delivers a continuous output current of 6 A at 480 V AC. Peak output current reaches 12 A for short-duration acceleration phases. The input voltage accepts 380 V AC to 480 V AC three-phase power. Input frequency ranges from 50 Hz to 60 Hz for global compatibility. The SCHNEIDER 141MMS42501 provides a rated output power of 2.4 kW for motor control. Internal 3000 µF capacitors provide energy storage for smooth power delivery.
Control Features and Communication Interfaces
This controller supports resolver feedback for precise rotor position detection. It accepts incremental encoder inputs with 5 V differential signals. The unit provides one CANopen port for fieldbus communication. A second RS-232 port supports programming and diagnostic connections. The SCHNEIDER 141MMS42501 includes eight digital inputs for safety and control signals. Four digital outputs report status and fault conditions. An analog input accepts 0 to 10 V for external speed reference.
Detailed Specification Table
| Parameter | Specification |
|---|---|
| Dimensions (H x W x D) | 310 mm x 80 mm x 210 mm |
| Weight | Approx. 3.2 kg |
| Input Voltage | 380 V AC to 480 V AC (3-phase) |
| Input Frequency | 50 Hz to 60 Hz |
| Continuous Output Current | 6 A |
| Peak Output Current | 12 A |
| Output Power | 2.4 kW |
| Feedback Types | Resolver, incremental encoder |
| Communication Ports | CANopen, RS-232 |
| Digital Inputs | 8 |
| Digital Outputs | 4 |
| Analog Input | 0 to 10 V |
| Energy Storage Capacitance | 3000 µF |
| Operating Temperature | 0°C to 50°C |
Application and Commissioning Guidelines
Mount this controller vertically in a clean, vibration-free cabinet location. Ensure adequate clearance around the heatsink for proper air circulation. Connect the motor cables to the designated output terminals securely. The SCHNEIDER 141MMS42501 operates effectively between 0°C and 50°C. Configure the feedback settings using the manufacturer’s software tools. Set the current limits according to the specific motor specifications. Connect the CANopen network for coordinated multi-axis operation. Monitor the status LEDs for fault indications during commissioning.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
