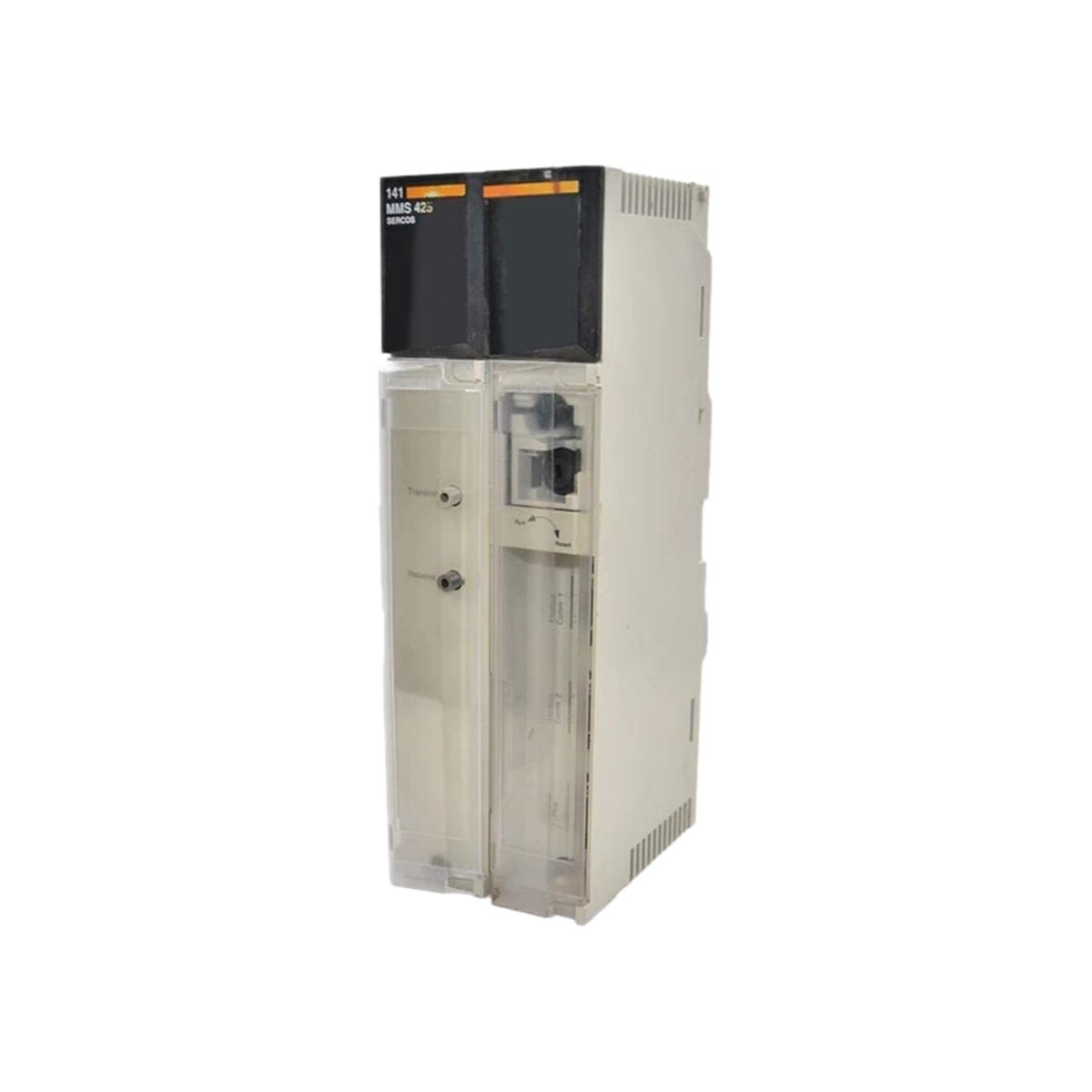

The Schneider 141MMS42500 integrates seamlessly into Modicon Quantum automation systems for motion control tasks. Engineers specify this module when coordinated axis movement must synchronize with process logic. Consequently, the unit delivers reliable positioning performance across continuous plant operations.
Physical Dimensions and Weight Data
Cabinet space often limits how technicians arrange motion hardware along the backplane. Therefore, this module keeps a compact profile while preserving full axis capacity. It weighs roughly 0.8 kg and measures 250 mm in length. Additionally, its width spans 100 mm with a depth of 120 mm.
Interfaces and Connectivity Features
Reliable motion control depends on secure terminations at every encoder and drive point. The unit provides screw terminals that accept wires up to 2.5 mm². Furthermore, front-panel LEDs let technicians verify axis and fault status instantly. The module mates directly with Quantum backplane connectors without additional adapters.
Component Count and Construction Details
Internal construction shapes both thermal behaviour and long-term reliability. This module carries more than 220 discrete components across its motion stages. Moreover, isolation barriers separate field circuits from internal logic. The housing material meets flame-retardant standards for industrial panels.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Motion module |
| Series | Modicon Quantum |
| Dimensions | 250 × 100 × 120 mm |
| Weight | 0.8 kg |
| Mounting | Backplane slot |
| Controlled Axes | 2 axes |
| Encoder Inputs | 2 channels |
| Component Count | 220+ discrete parts |
| Isolation Voltage | 1500 VDC |
| Hot-Swap Support | Yes |
| Operating Temperature | 0°C to 60°C |
| Update Rate | 1 ms per axis |
| Diagnostic Coverage | Over 99% |
Motion Performance and Compliance
Fast update rates directly influence overall positioning accuracy. The module completes typical axis updates within 1 ms. Meanwhile, isolation voltage reaches 1500 VDC between field wiring and internal logic. Diagnostic coverage exceeds 99%, which strengthens fault detection.
Industrial sites also demand strict safety certifications before deployment. The module complies with IEC and UL standards for industrial control equipment. In addition, it meets CE requirements for electromagnetic compatibility. These credentials support dependable operation in harsh plant environments.
