Technical Overview

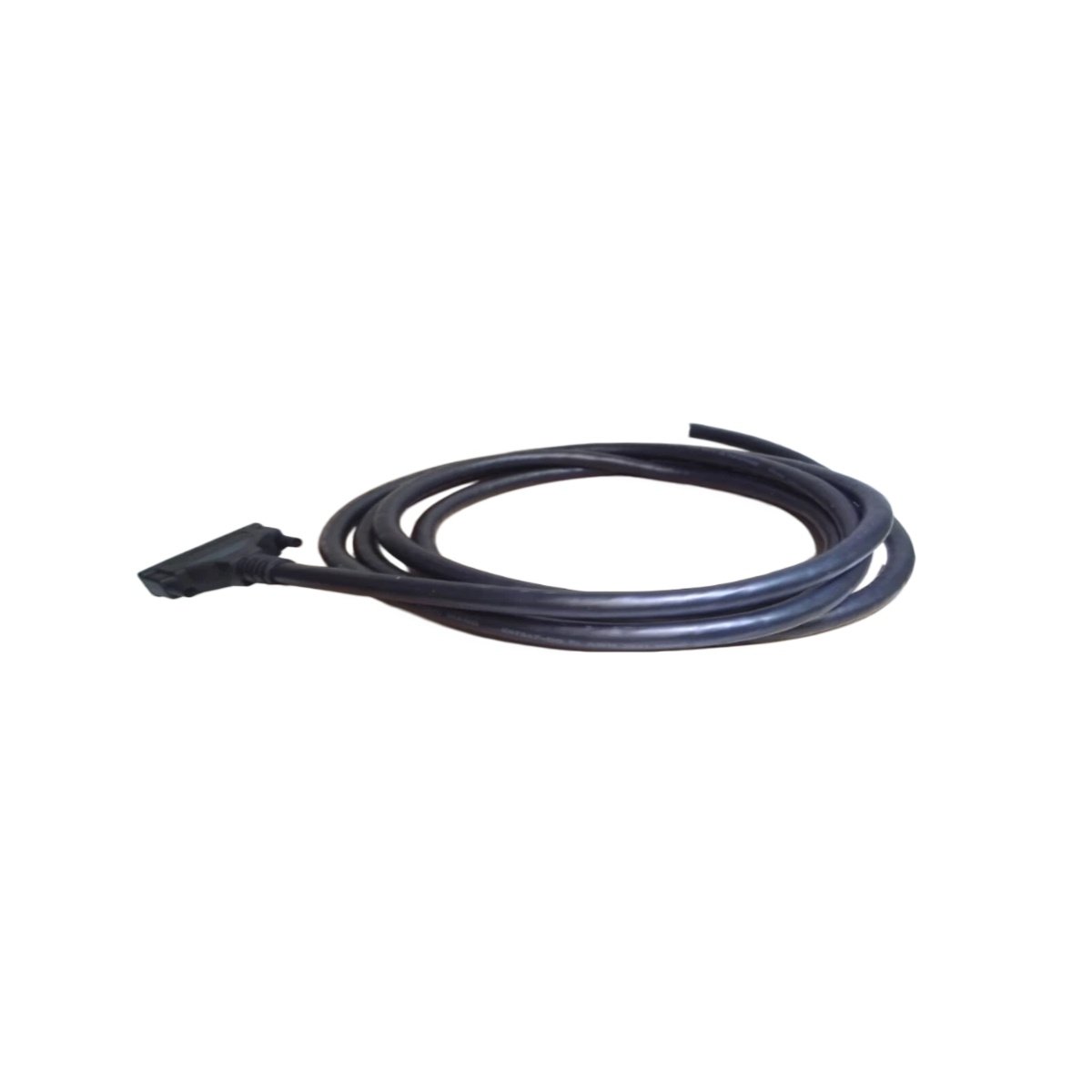

The Schneider 140XTS01212 belongs to the CableFast series of pre-wired system cables for Modicon Quantum automation systems. This cable provides a direct connection between I/O modules and remote terminal panels, significantly simplifying field wiring tasks. We can rely on this robust cable solution for demanding industrial environments due to its superior construction quality.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | CableFast Pre-Wired System Cable |
| Connector Type | 40-pin (Module Side) to 20-pin (Terminal Side) |
| Cable Length | 12 meters |
| Cable Color | Ivory / Off-white |
| Material | UL-rated, halogen-free, flame-retardant |
| Contact Material | Gold-plated contacts |
| Insulation Material | PVC |
| Temperature Range | 0°C to 60°C |
| Operating Voltage | 300 V |
| Current Rating | 2 A |
| Certifications | CE, CSA, UL |
| Warranty | 1 year |
| Weight | Approximately 1.5 kg |
Cable Architecture and Construction
The Schneider 140XTS01212 features gold-plated contacts that ensure reliable signal transmission and corrosion resistance over time. Furthermore, its halogen-free, flame-retardant outer jacket meets the strictest safety standards for industrial control systems.
Installation and Integration
The cable’s considerable 12-meter length offers substantial installation flexibility when positioning I/O racks and remote panels. This plug-and-play design reduces wiring time and minimizes the potential for human error.
Reliability and Performance
The Schneider 140XTS01212 significantly simplifies field wiring by eliminating the need for custom cable assembly. We recommend this cable for high-vibration settings, as its secure connector locking mechanism maintains connection integrity. Its 2A current rating adequately supports standard I/O signals, while the 300V isolation provides protection against electrical faults.
Details
| Weight | 0.03 kg |
|---|---|
| Dimensions | 45 × 65 × 8 mm |
