High-Integrity Wiring Solution for Modicon Quantum

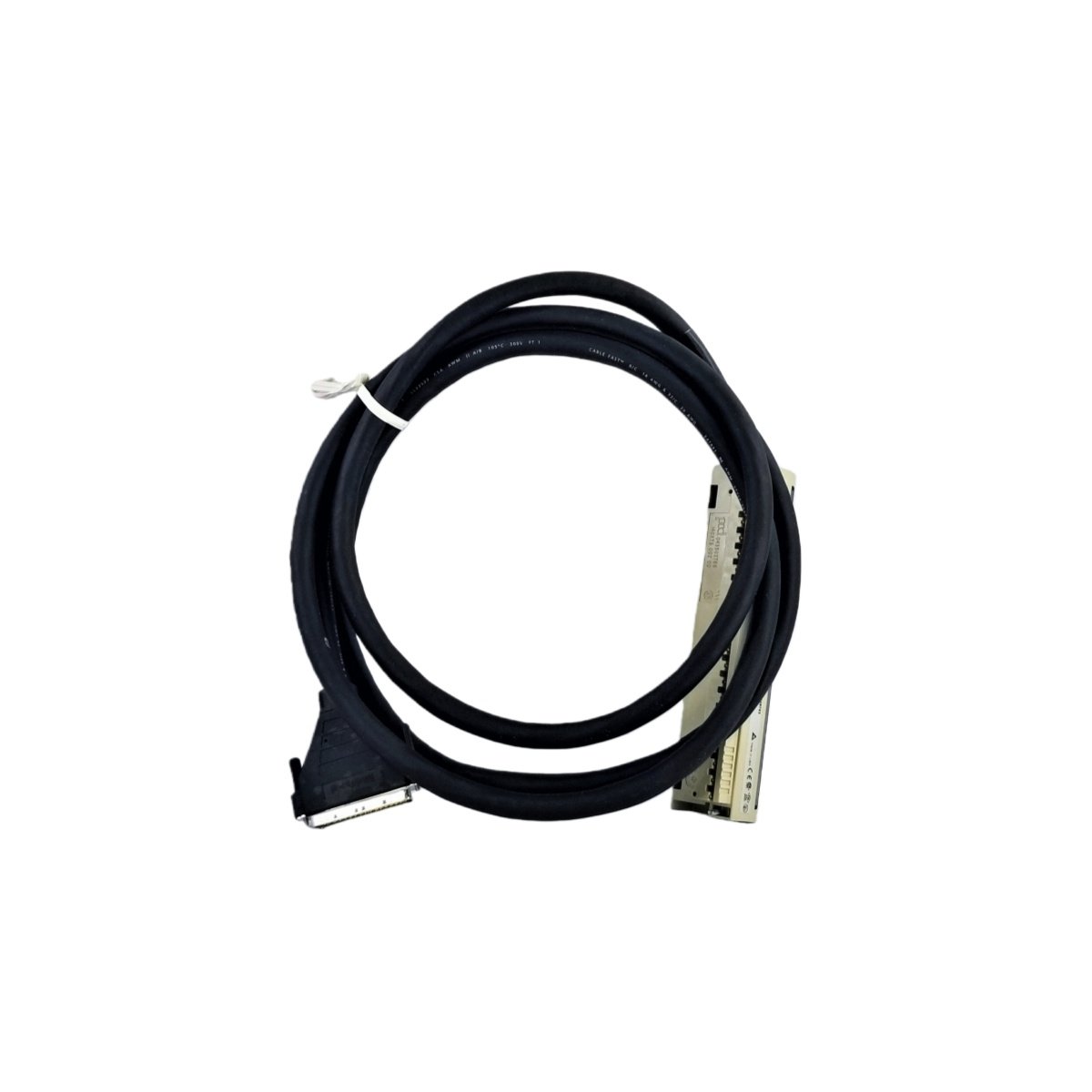

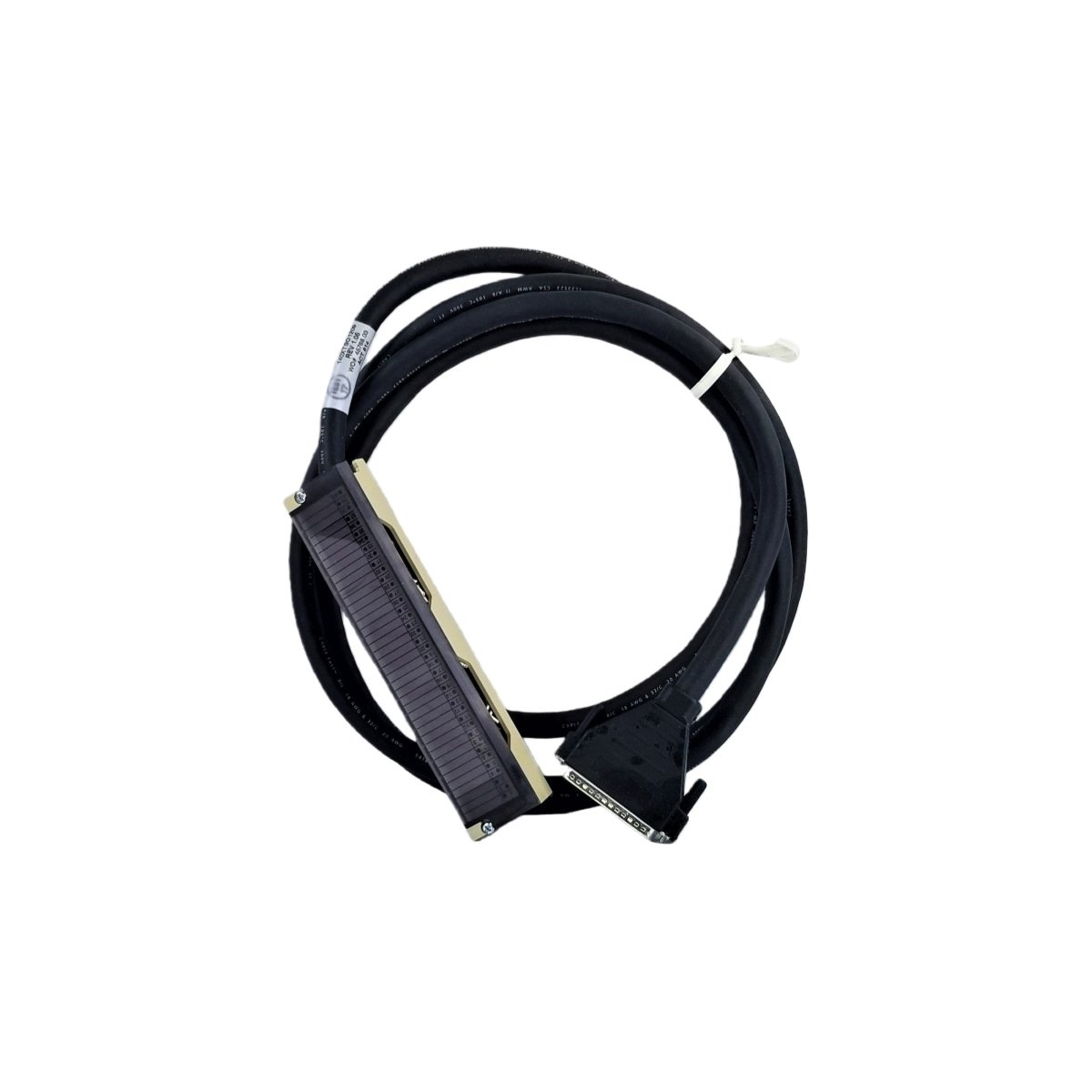

The Schneider 140XTS01209 delivers a pre-assembled CableFast system cable for simplifying field wiring in Modicon Quantum installations. This cable spans a length of 2.5 meters, providing sufficient reach between remote I/O racks and termination panels. Its robust construction includes 20 discrete conductors, each rated for 0.5 mm² cross-sectional area. The total cable assembly weighs approximately 0.8 kg, balancing durability with manageable handling during installation.

Both ends feature factory-molded connectors that eliminate the need for on-site soldering or crimping. The following table outlines the complete technical specifications for this CableFast solution:

Wiring Efficiency and System Integration

This cable dramatically reduces wiring time by replacing point-to-point terminations with a single plug-and-play harness. The braided copper shield effectively rejects electromagnetic interference, preserving signal integrity in noisy industrial environments. Compatible Quantum I/O modules include 140CRA31200, 140CRP31200, and other 140-series adapters. Engineers can therefore standardize on this cable across multiple racks to reduce spare parts inventory.

Mechanical Durability and Environmental Tolerance

The PVC insulation withstands continuous exposure to oils, coolants, and mild chemical agents commonly found on factory floors. Operating temperatures from -20°C to +70°C accommodate freezing warehouses and hot machinery enclosures alike. A minimum bend radius of 50 mm protects internal conductors during tight routing through cable ducts. This mechanical resilience ensures long-term reliability even under frequent reconfiguration or maintenance activities.

Installation Best Practices

Users should avoid sharp bends or excessive pulling force when routing this cable through conduit systems. Proper strain relief at both connector housings prevents conductor fatigue over time. Color-coded conductors simplify identification during troubleshooting and future expansions. The factory-molded connectors also maintain consistent impedance, reducing reflections and data errors on high-speed communication links.
