This versatile I/O module provides mixed signal capabilities for Modicon Quantum PLC systems. It handles discrete and analog signals within a single compact unit. Therefore, this component saves rack space while delivering comprehensive I/O functionality.

Physical Dimensions and Weight Specifications

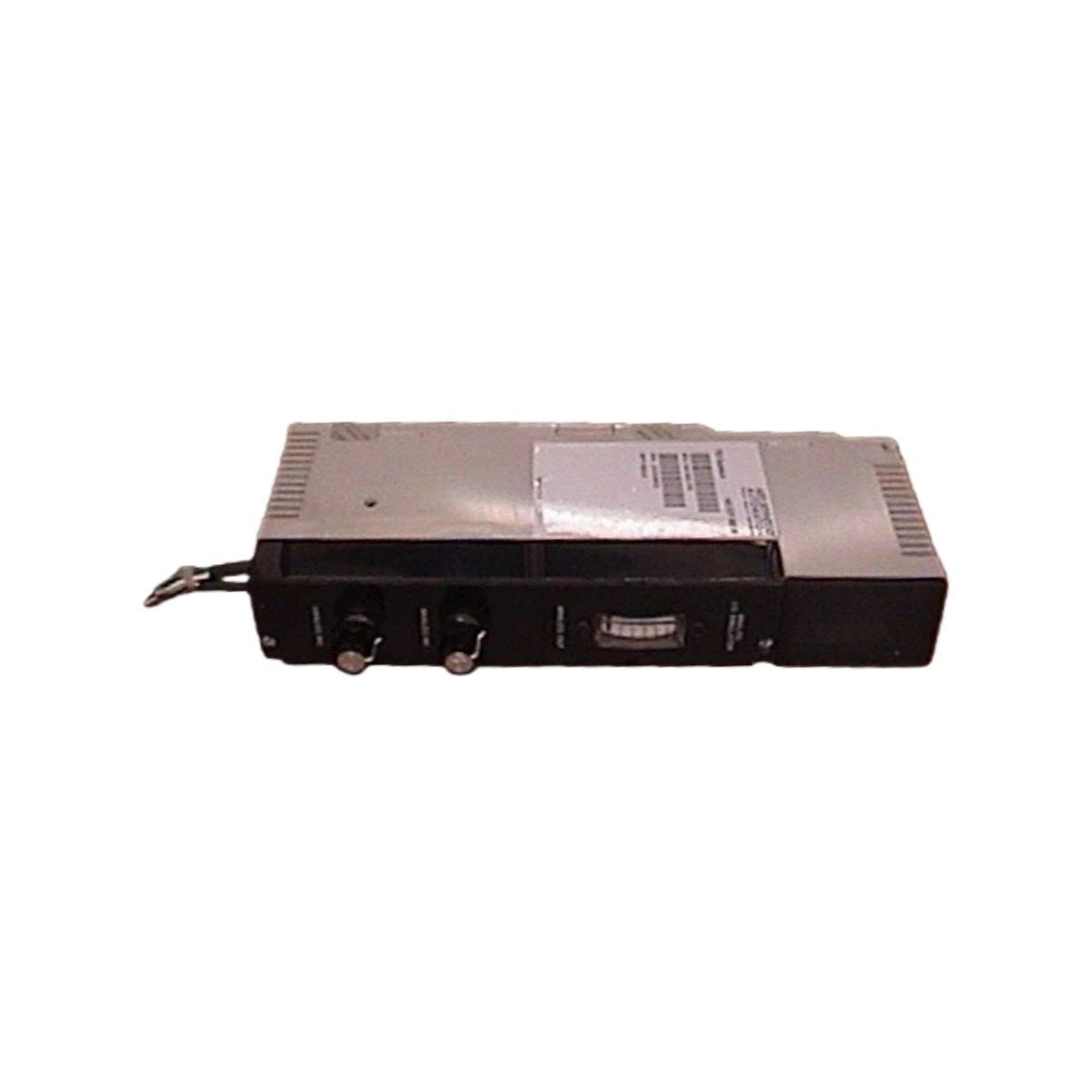

The Schneider 140XSM40010 occupies one standard slot in the Quantum rack. Its housing measures 235 mm in depth for backplane connectivity. The module weighs approximately 0.52 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Schneider 140XSM40010 provides a 48-pin front connector for field wiring. A 50-pin backplane connector supplies power and data from the CPU. The front panel carries LED indicators for each channel status. Hence, operators can monitor all signals at a quick glance.

Component Count and Channel Configuration

This I/O module contains one main board with mixed analog and digital circuits. The board holds 8 digital input channels for 24V DC sensors. You will also find 4 analog input channels and 4 digital outputs. An onboard microcontroller handles channel scanning and diagnostics.

Energy Storage and Power Consumption

The Schneider 140XSM40010 draws 150 mA from the 5V backplane supply. It also requires 120 mA from an external 24V supply for field circuits. A small capacitor bank filters noise on the analog power rails. This storage reduces measurement errors from power fluctuations.

Signal Processing and Application Flexibility

The module scans all inputs within a 5 ms cycle time. Users can configure analog ranges via software or jumpers. This flexibility supports mixed sensor types without multiple modules. Therefore, this I/O module reduces overall system cost and cabinet space.
