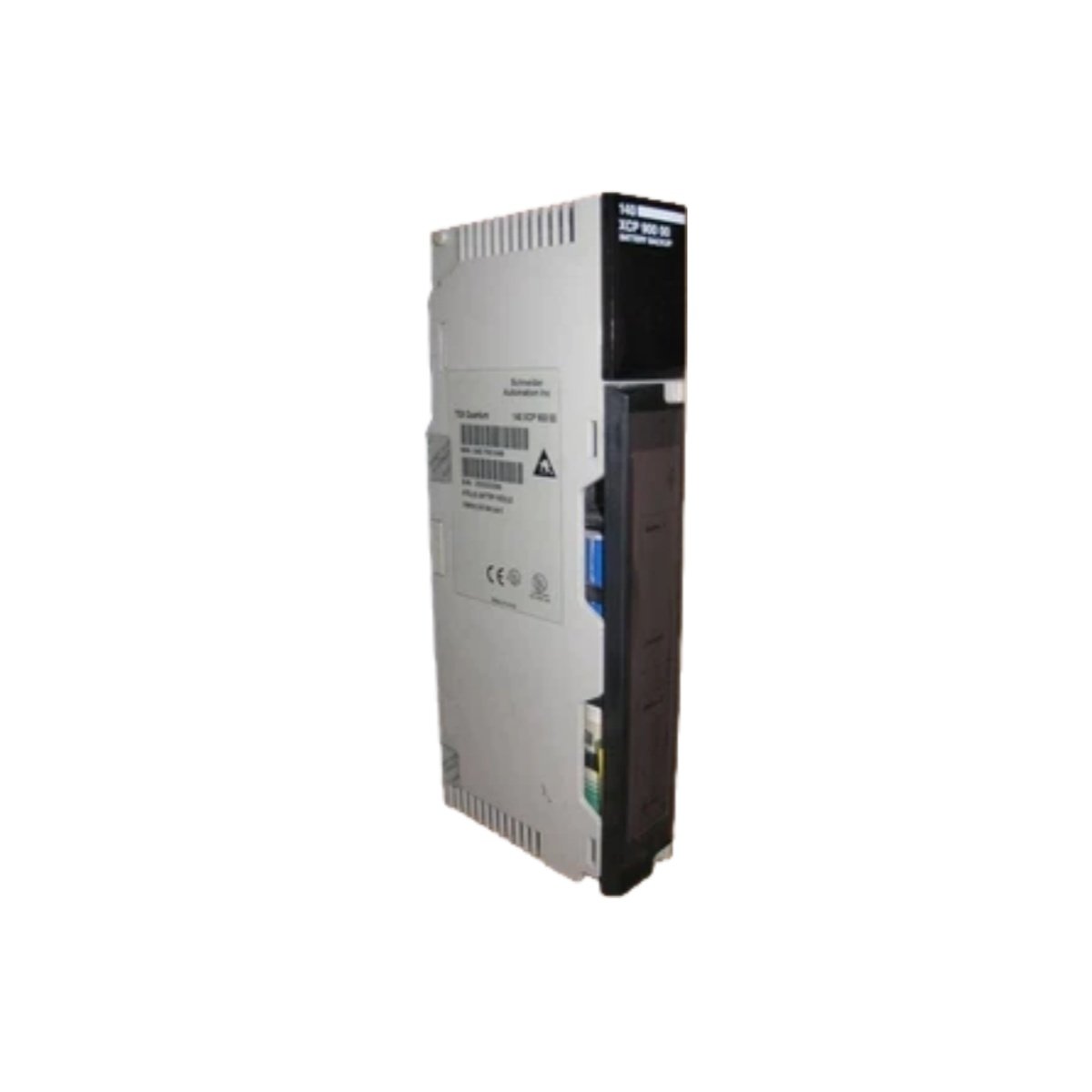

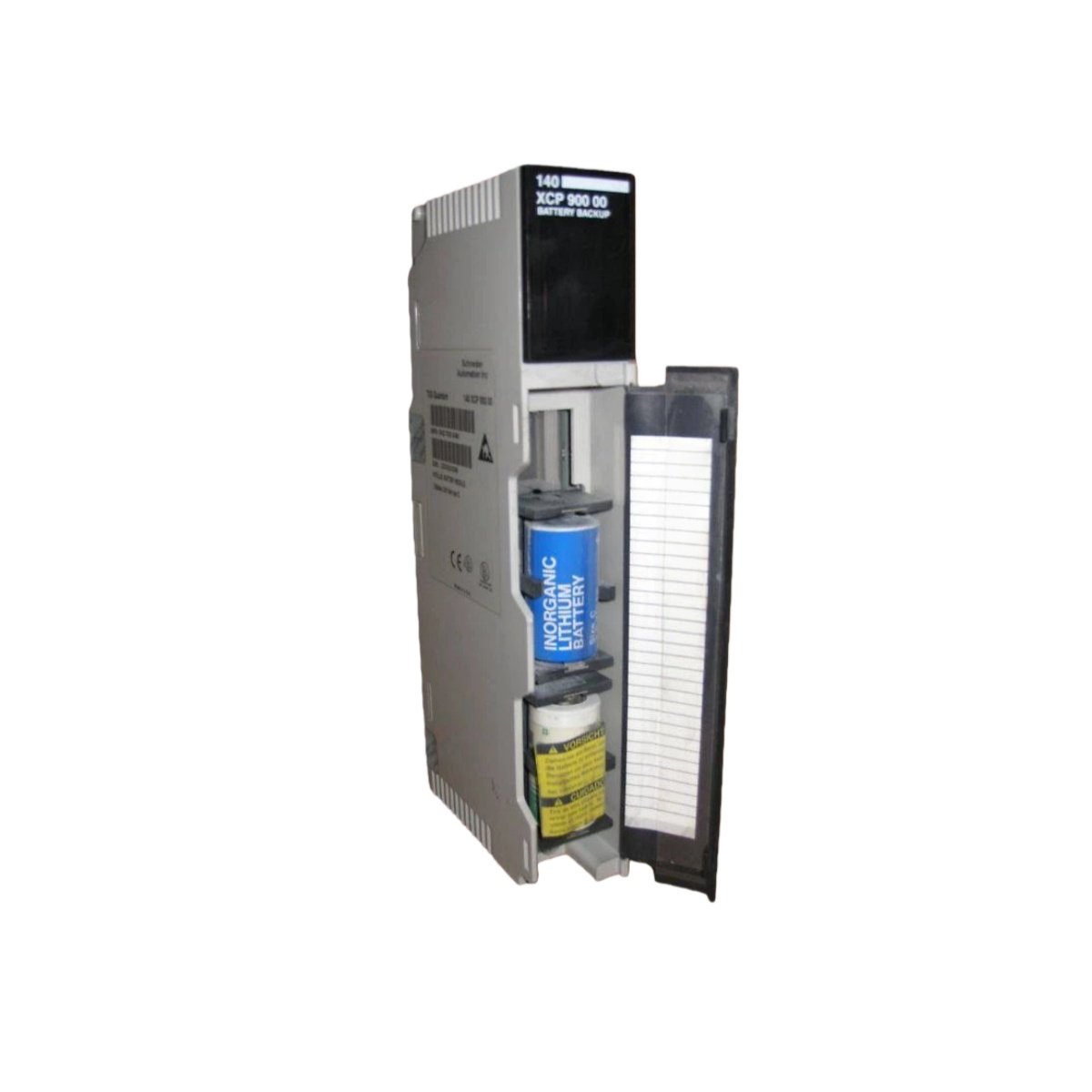

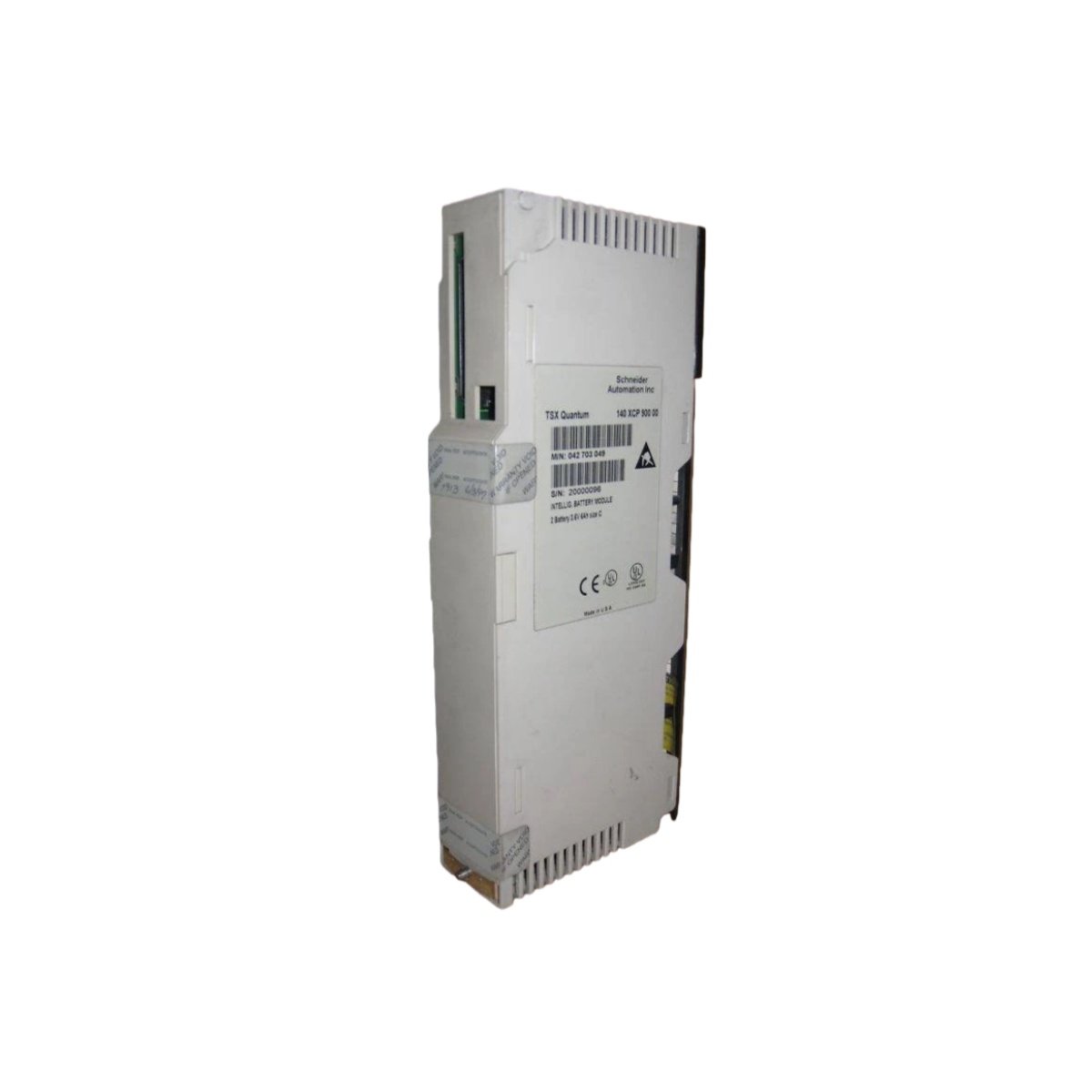

The Schneider 140XCP90000 is a backup battery holder module for the Modicon Quantum automation platform. This accessory preserves memory content during power interruptions. It provides a reliable power source for critical system data. The module is specifically compatible with multifunction input modules. It also serves as a separate part for various Quantum applications .

Technical Specifications

The Schneider 140XCP90000 uses standard lithium primary cells with a nominal voltage of 3.6 V DC. This battery offers a minimum capacity of 1200 mAh . It delivers up to 5 years of data retention for system memory. The module draws less than 10 μA in standby mode. Its maximum continuous load current is 50 mA . The module package weighs approximately 539 g and measures 31.5 x 16.5 x 5.0 cm .

Key Technical Data

Module Compatibility and Integration

This module plugs directly into compatible Quantum baseplates. Its primary compatibility lies with the 140ERT85410 multifunction input module series . The module provides a secure latch mechanism for battery installation. It includes reverse polarity protection for safe installation. It also features short-circuit protection on output circuits . An automatic switchover circuit instantly engages the backup power during a system power loss .

Environmental and Physical Design

The Schneider 140XCP90000 utilizes UL94 V-0 rated flame retardant plastic housing . Gold-plated phosphor bronze springs ensure reliable electrical contact. The module operates effectively across a wide temperature range from -40 °C to 85 °C. It also offers low self-discharge, at less than 1% per year at room temperature . This robust design guarantees stable performance in demanding industrial environments.

​
