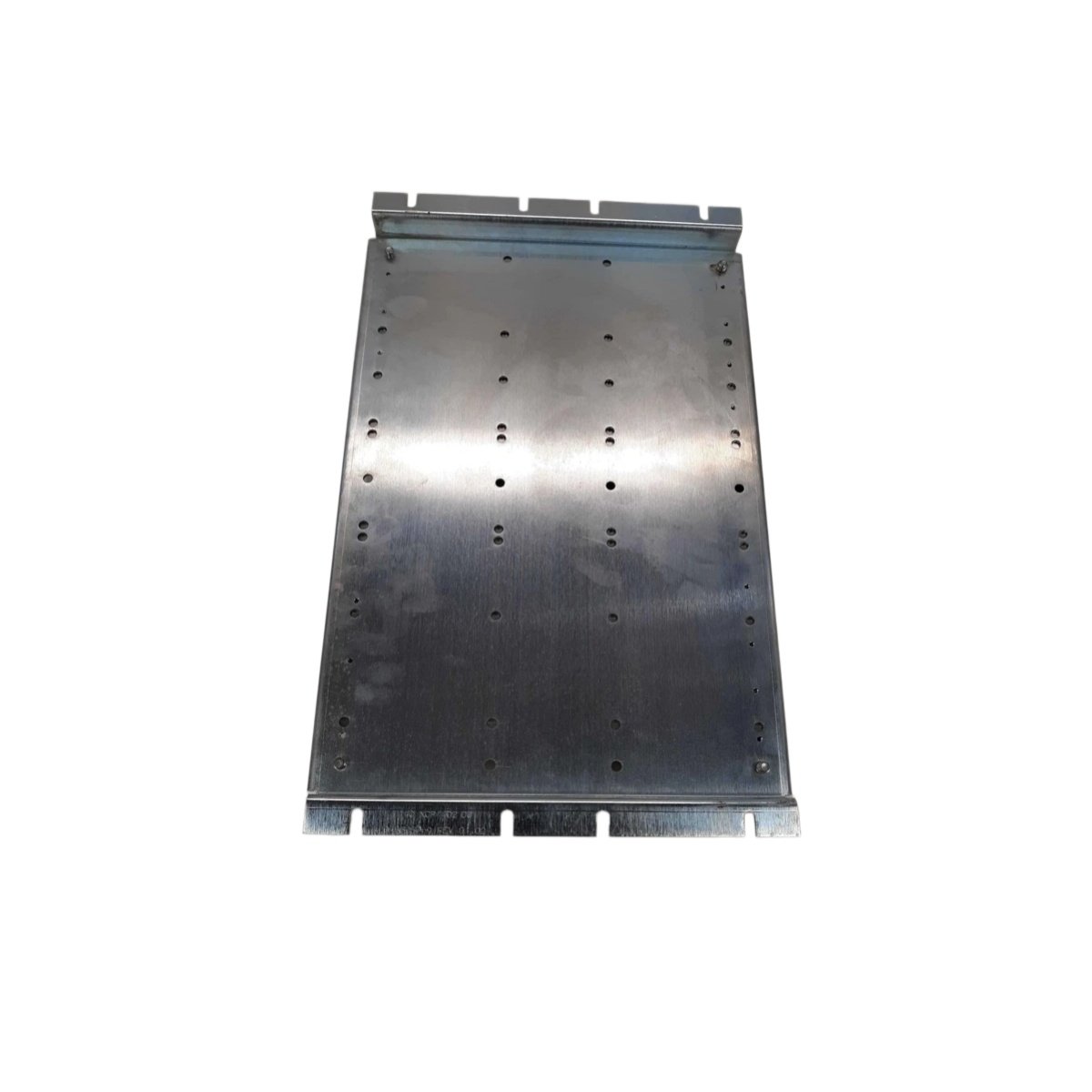

This Schneider Electric mounting bracket secures Modicon Quantum I/O racks to 19-inch cabinets. It provides sturdy support for chassis installation in industrial control panels. Engineers can use this bracket for both new system builds and field upgrades. Its precision design ensures proper alignment and stable rack positioning. The bracket simplifies mounting procedures for faster panel fabrication.
Physical Dimensions and Material Construction
The bracket measures 19.0 inches in width and 1.5 inches in depth. Its steel construction weighs approximately 2.0 pounds for robust panel support. A durable powder-coated finish resists corrosion and industrial contaminants effectively. The unit includes four mounting slots for M6 or 1/4-inch hardware. This design accommodates various cabinet configurations and installation requirements.
Mounting Configuration and Hole Patterns
The bracket features 8 pre-drilled mounting holes for flexible attachment options. Each hole accepts standard metric or imperial fasteners without modification. The unit provides adjustment slots for fine-tuning rack alignment during installation. The bracket pairs with matching Quantum chassis mounting flanges securely. This compatibility streamlines system assembly and panel integration.
Support Capacity and Load Ratings
The bracket supports a maximum load of 55 pounds for fully populated racks. This capacity accommodates multiple I/O modules and power supplies comfortably. The unit distributes weight evenly across the 19-inch mounting span. This distribution prevents stress concentrations on individual mounting points. The bracket maintains structural integrity under normal vibration conditions.
Installation Accessories and Hardware
The bracket includes four M6 x 16mm mounting screws with flat washers. It also provides four spring lock washers for vibration-resistant fastening. The unit ships with a comprehensive installation guide for quick reference. All hardware meets commercial-grade standards for industrial durability. This comprehensive package eliminates the need for additional fastener purchases.
Compatibility and System Integration
The bracket fits all Modicon Quantum 4-slot, 6-slot, and 10-slot racks. It also supports 2-slot and 3-slot chassis in smaller configurations. The unit works with standard 19-inch EIA racks and enclosures. This universal compatibility reduces the number of required spare parts. The bracket integrates seamlessly with existing Schneider Electric panel designs.
Environmental Ratings and Finish Durability
The bracket operates reliably from -25 to 70 degrees Celsius ambient temperature. Its powder-coated finish withstands 500 hours of salt spray testing. The unit resists chipping and scratching during normal installation procedures. This durable finish maintains appearance and protection throughout service life. The bracket meets RoHS requirements for restricted substance compliance.
Technical Specifications Overview
| Parameter | Detail |
|---|---|
| Model Number | 140XCP40200 |
| Type | 19-inch Rear Rail Mounting Bracket |
| Width | 19.0 inches (483 mm) |
| Depth | 1.5 inches (38 mm) |
| Material | Steel, powder-coated |
| Weight | 2.0 lbs (0.9 kg) |
| Max Load Capacity | 55 lbs (25 kg) |
| Mounting Holes | 8 pre-drilled plus adjustment slots |
| Hardware | 4 x M6 screws, washers included |
| Compatibility | Quantum 2, 3, 4, 6, 10-slot racks |
| Rack Standard | 19-inch EIA |
| Operating Temperature | -25 to 70 °C |
| Finish | Corrosion-resistant powder coat |
| Compliance | RoHS |
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
