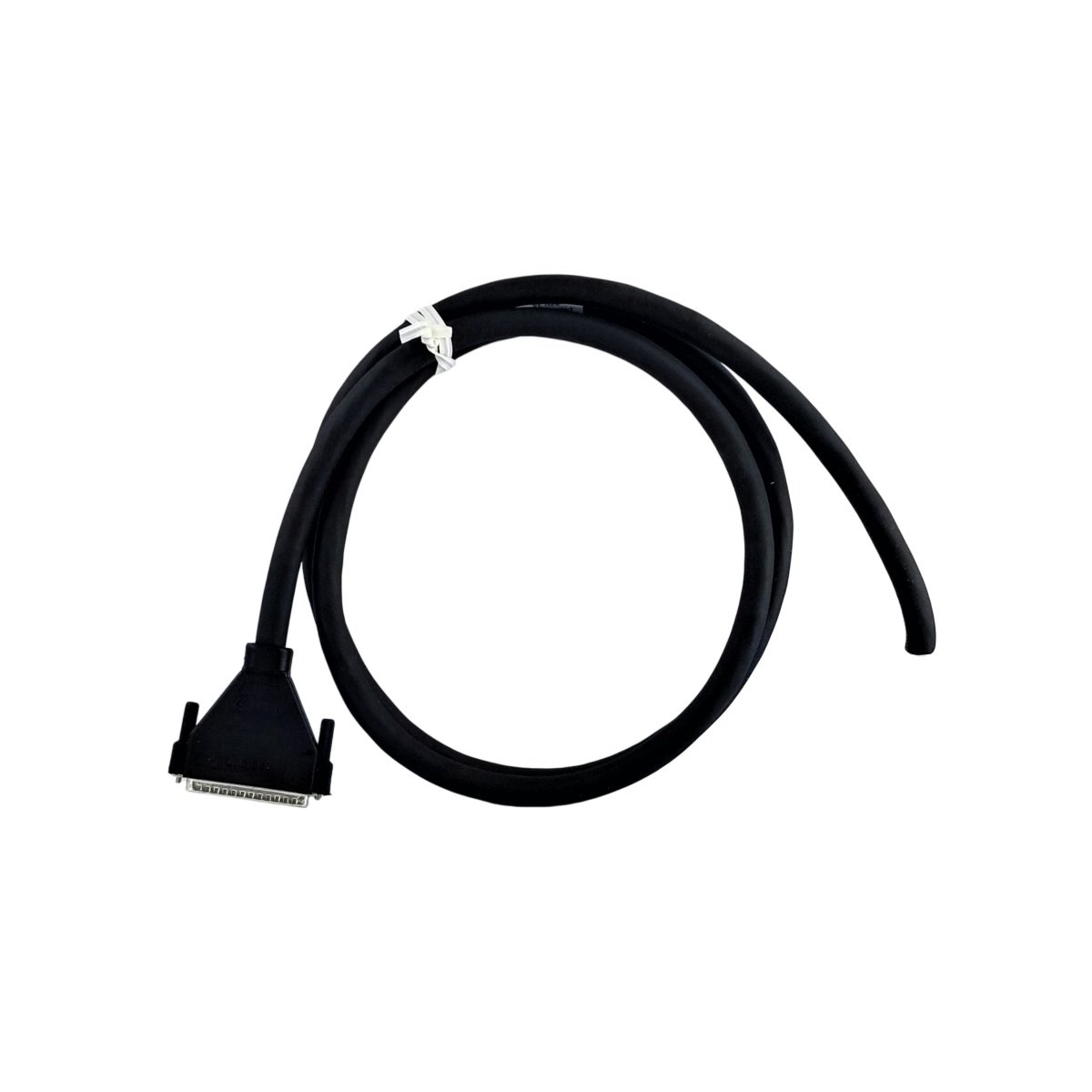

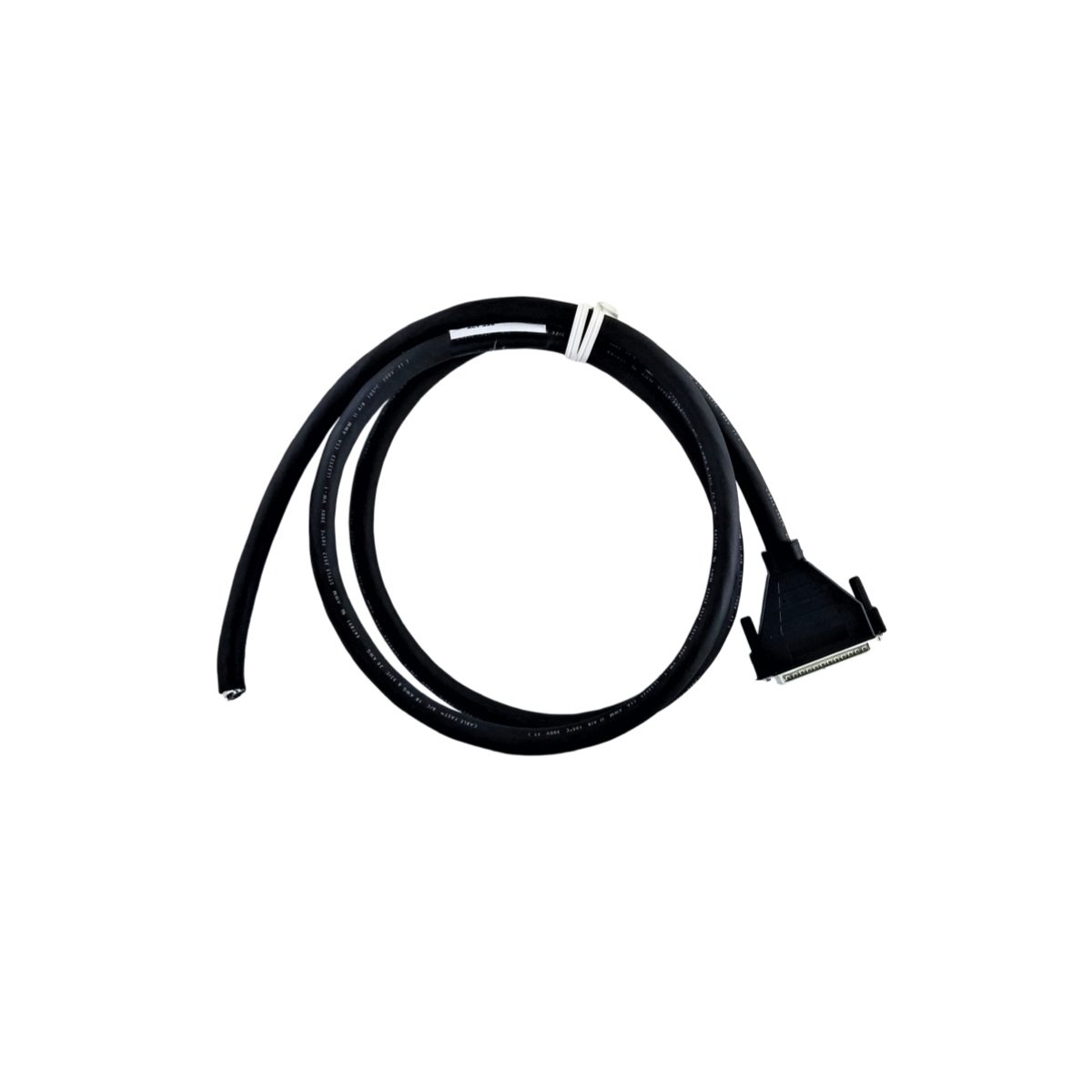

The 140XCA10206 cable assembly provides reliable connectivity for Modicon Quantum PLC installations. Schneider Electric designed this factory-assembled cable to simplify wiring between I/O modules and field devices. Engineers value its robust construction and straightforward installation process.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140XCA10206 |
| Product Line | Modicon Quantum |
| Cable Length | 1.8 meters (6 ft) |
| Connector Type | 50-pin D-Sub |
| Pigtail Leads | 40 color-coded leads |
| Cable Type | Shielded twisted pair |
| Conductor Material | Copper |
| Weight | 0.96 kg (2.13 lbs) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Certification | UL, CE |
Key Features and Benefits
This cable assembly features a 50-pin D-Sub connector with 40 distinct color-coded pigtail leads . The shielded twisted pair construction reduces electromagnetic interference significantly. Consequently, signal integrity remains stable even in electrically noisy industrial environments. Copper conductors ensure reliable electrical performance across demanding applications.
The 140XCA10206 supports power distribution to Quantum I/O modules and communication interfaces . Its pre-terminated design eliminates field wiring errors and reduces installation time. Additionally, the compact dimensions allow flexible routing within crowded control cabinets.
Compatible Applications
This assembly works seamlessly with Modicon Quantum automation platforms. It connects main racks to expansion racks or links I/O modules to communication interfaces. The cable handles high-current power applications while maintaining consistent performance.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
