Product Overview

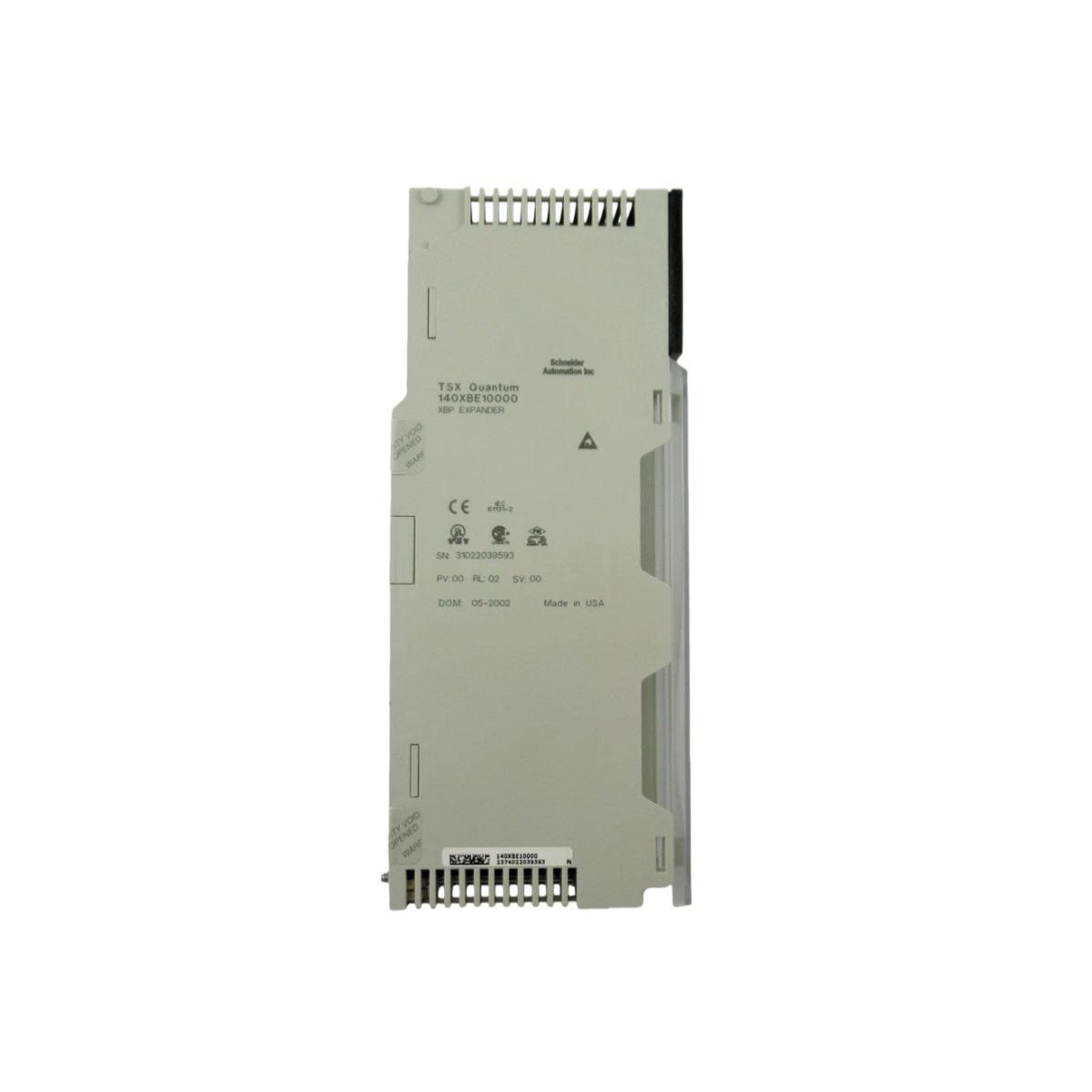

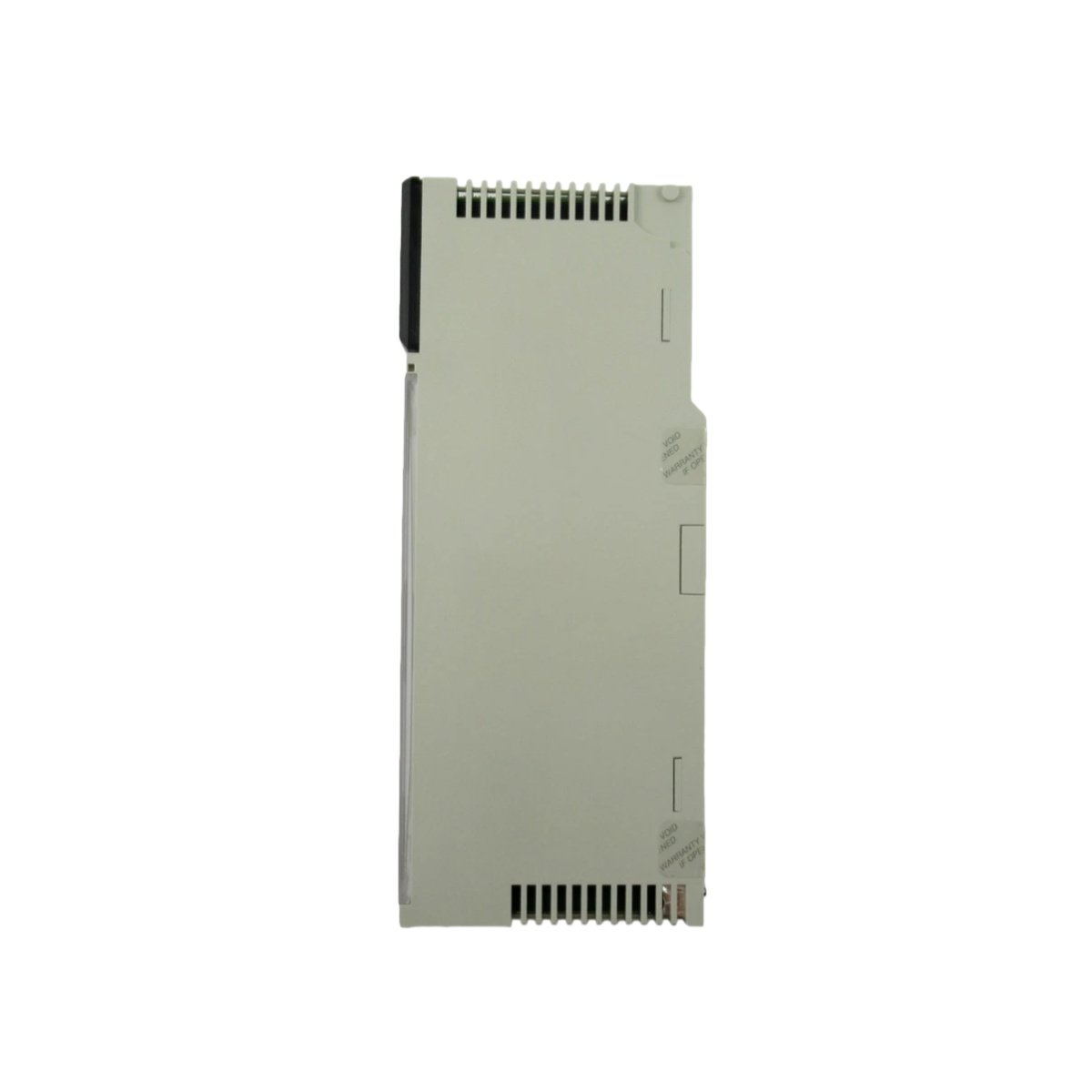

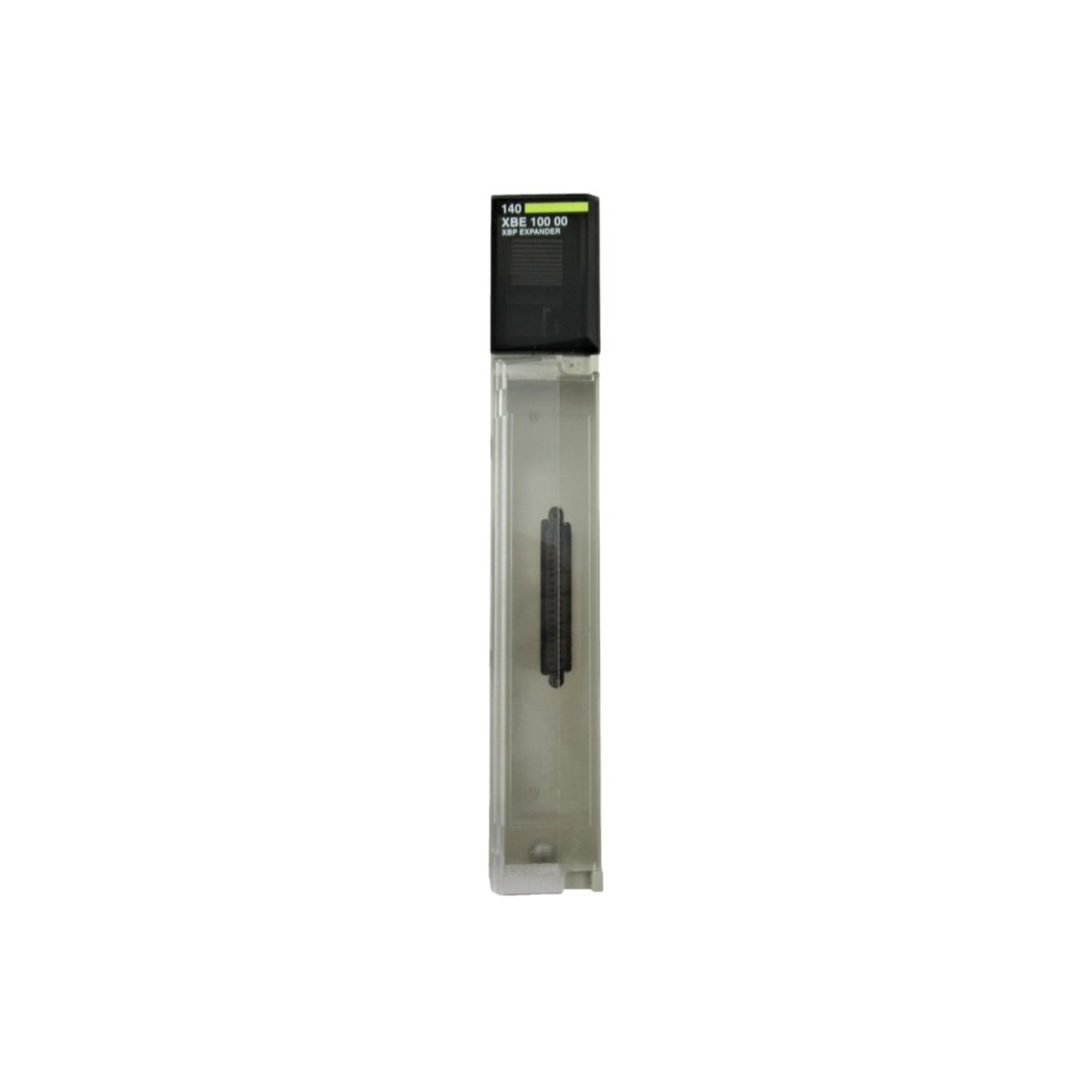

The 140XBE10000 backplane expander offers a reliable solution for increasing I/O capacity in Modicon Quantum automation systems. This module connects directly to the Quantum local rack and provides additional expansion slots for mounting extra I/O modules. It supports hot-swappable module insertion, which minimizes downtime during system maintenance or upgrades. Users can easily integrate this expander into existing architectures without modifying the original rack configuration.
Key Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Backplane Expander Module |
| Compatibility | Modicon Quantum PLC Series |
| Number of Slots | 10 expansion slots |
| Dimensions (H x W x D) | 260 mm x 80 mm x 145 mm |
| Weight | 1.2 kg |
| Current Consumption | 500 mA at 5 VDC |
| Backplane Current | 2.0 A maximum |
| Power Dissipation | 4.0 W typical |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % (non-condensing) |
| Protection Class | IP20 |
| Certifications | CE, UL, CSA |
Detailed Technical Features
The 140XBE10000 module communicates with the Quantum CPU through the X-bus backplane, ensuring high-speed data exchange between all connected devices. It features ten dedicated slots, each supporting standard Quantum I/O modules, specialty modules, or communication adapters. This expander draws a maximum current of 2.0 A from the backplane, while its onboard circuitry maintains stable power distribution across all slots. The compact form factor, weighing only 1.2 kg, simplifies installation in standard 19-inch racks or enclosures.
Installation and Integration
Mount the 140XBE10000 directly onto the Quantum rack using the supplied mounting hardware. Connect the expander to the local rack via the X-bus connector, ensuring proper alignment and secure fastening. The module automatically configures itself upon power-up, so no manual addressing or software setup is required. For optimal performance, install the expander in a well-ventilated area and maintain ambient temperatures below 60 °C. Additionally, verify that the total backplane current does not exceed the power supply’s rated capacity.
Reliability and Durability
This backplane expander operates reliably across a wide temperature range from 0 °C to 60 °C and withstands storage conditions from –40 °C to +85 °C. Its IP20 protection rating guards against solid objects larger than 12 mm, making it suitable for industrial control cabinets. The module also includes overcurrent protection and thermal shutdown features, which safeguard both the expander and connected modules from electrical faults.
Details
| Weight | 1.2 kg |
|---|---|
| Dimensions | 260 × 80 × 145 mm |
