Network Transceiver for Quantum Automation Systems
The 140NOL91100 serves as a dedicated LonWorks transceiver module within Schneider Electric’s Modicon Quantum platform. Engineers deploy this unit to connect Quantum controllers with devices on a Local Operating Network. Consequently, the module enables seamless data exchange across building automation and industrial control networks.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 140NOL91100 |
| Manufacturer | Schneider Electric |
| Series | Modicon Quantum |
| Product Type | LonWorks Network Transceiver |
| Network Protocol | LonWorks (FTT-10) |
| Interface | LON (Local Operating Network) |
| Data Rate | 78 kbit/s (TP/FTT-10) |
| Power Supply | 24V DC |
| Connector Type | Screw Terminal |
| Operating Temperature | 0°C to +60°C |
| Humidity Range | 10% to 95% RH (non-condensing) |
| Weight | 0.30 kg |
| Mounting | Quantum Backplane |
| Certifications | CE, UL, cUL |
Network Architecture
The module supports the TP/FTT-10 transceiver standard for free topology twisted pair networks. Data transfer operates at 78 kbit/s across the LonWorks segment. Therefore, the 140NOL91100 integrates Quantum systems with LonMark-compliant devices for distributed control.
System Integration

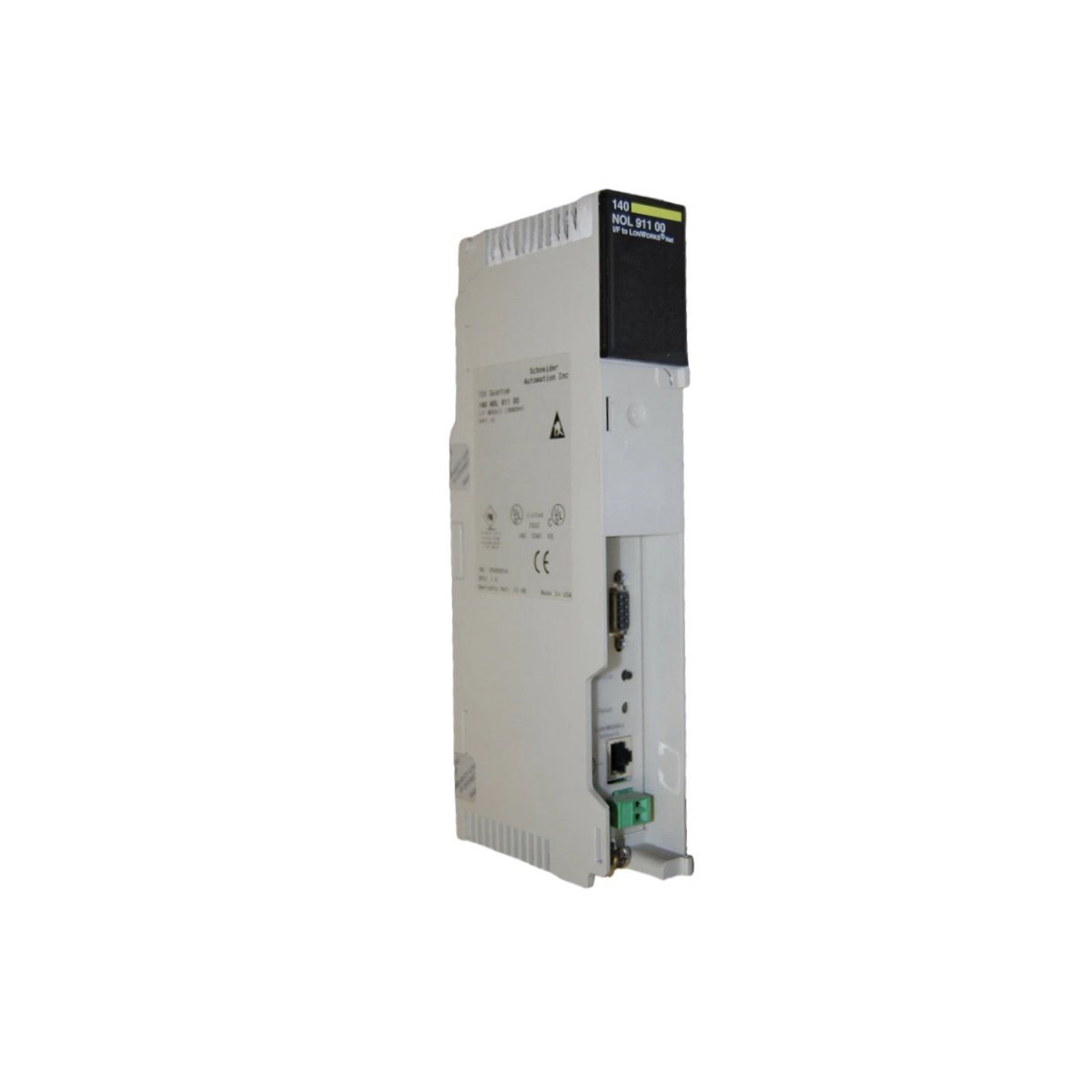

Engineers mount the module directly onto any available Quantum backplane slot. The unit provides both primary and auxiliary LonWorks ports wired in parallel for flexible wiring options. Additionally, the module supports up to 240 Standard Network Variable Types for versatile data mapping.Schneider 140NOL91100 Modicon Quantum LonWorks transceiver. FTT-10, 78 kbit/s, 24V DC, 0.30kg, CE/UL/cUL. Network interface module specifications.
