Core Technical Specifications

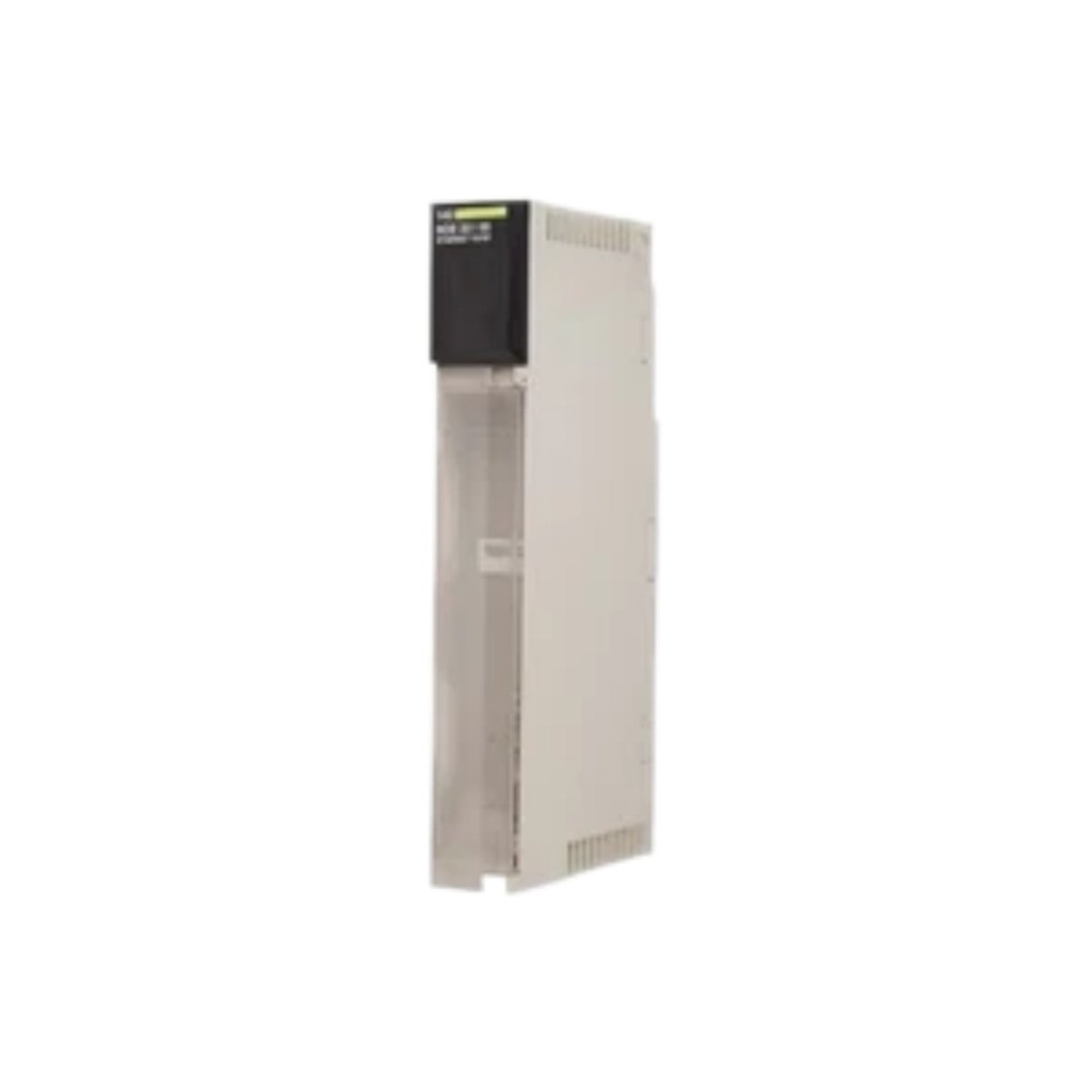

This Ethernet module connects your Quantum PLC to plant-wide networks for seamless data exchange. We engineered the 140NOE25100C to deliver reliable, high-bandwidth communication for modern industrial automation.
| Parameter | Specification |
|---|---|
| Product Type | Ethernet Communication Module |
| Dimensions | 130 mm x 100 mm x 85 mm (W x H x D) |
| Weight | 0.50 kg |
| Supply Voltage | 5 V DC (from backplane) |
| Power Consumption | 5 W typical |
| Network Interface | 1 x RJ-45 Ethernet port (10/100 Mbps) |
| Protocol Support | TCP/IP, UDP, Modbus TCP, SNMP, HTTP, FTP |
| Transmission Speed | 10/100 Mbps auto-negotiation |
| Cable Type | Category 5 or better (shielded recommended) |
| Max Cable Length | 100 meters (per segment) |
| Connections | Up to 64 simultaneous TCP sessions |
| Memory Buffer | 1 MB for data exchange and web pages |
| Web Server | Built-in with customizable HTML pages |
| Diagnostics | 4 LEDs (link, activity, status, fault) |
| Operating Temp. | 0 °C to 60 °C |
| Mounting | Rack-mounted via backplane connector |
| Certifications | CE, UL, CSA, and ATEX Zone 2 approved |
High-Performance Network Connectivity
The 140NOE25100C provides a 10/100 Mbps Ethernet port with auto-negotiation for optimal speed selection. This interface connects your Quantum PLC to plant-wide control networks and enterprise systems. The module supports up to 64 simultaneous TCP sessions for concurrent communication with multiple clients. Therefore, you can exchange data with HMIs, SCADA systems, and MES platforms simultaneously.
Comprehensive Protocol Support
This Ethernet module handles TCP/IP, UDP, Modbus TCP, SNMP, HTTP, and FTP protocols. The Modbus TCP support enables seamless integration with third-party controllers and I/O devices. The SNMP interface allows network management systems to monitor module health and traffic statistics. The built-in web server provides a convenient tool for remote diagnostics and status monitoring.
Web Server and Data Visualization
The 140NOE25100C includes an embedded web server for browser-based access to PLC data. You can create custom HTML pages with real-time process values, alarms, and system status. This feature enables remote monitoring from any device with a standard web browser. Additionally, the 1 MB memory buffer stores these web pages and temporary data for quick retrieval.
Reliable Data Exchange
This communication module moves data efficiently between the PLC processor and Ethernet network devices. The module handles message routing and protocol conversion without burdening the main CPU. The robust design maintains stable operation even under heavy network traffic. Consequently, the 140NOE25100C supports high-speed data logging and supervisory control applications.
Diagnostic and Monitoring Capabilities
The 140NOE25100C features four LEDs for instant visual feedback on network status. These indicators display link integrity, data activity, module health, and fault conditions. The module also supports SNMP traps for proactive fault notification to network management systems. This diagnostic visibility simplifies troubleshooting and reduces mean-time-to-repair for network issues.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 130 × 100 × 85 mm |
