Core Technical Specifications

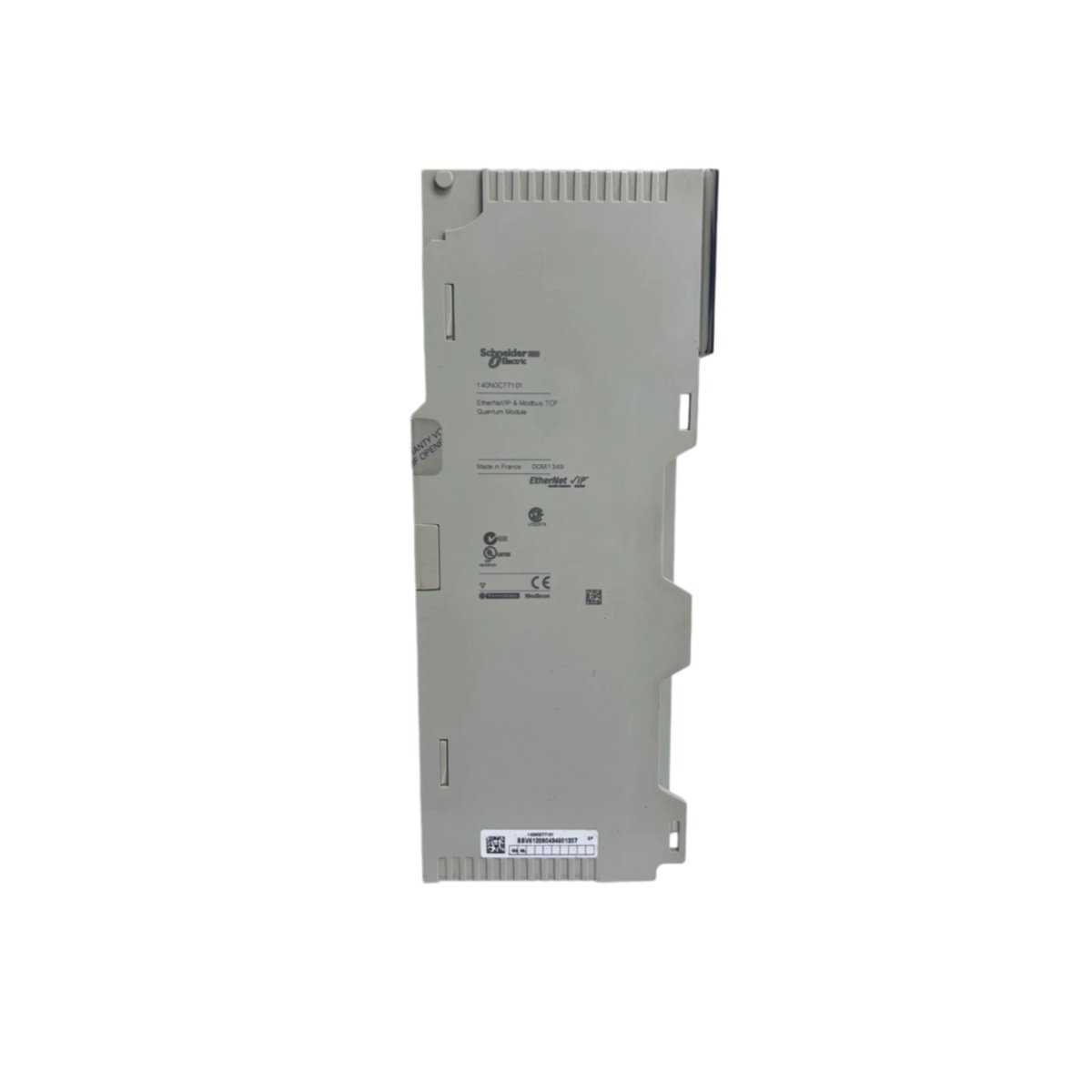

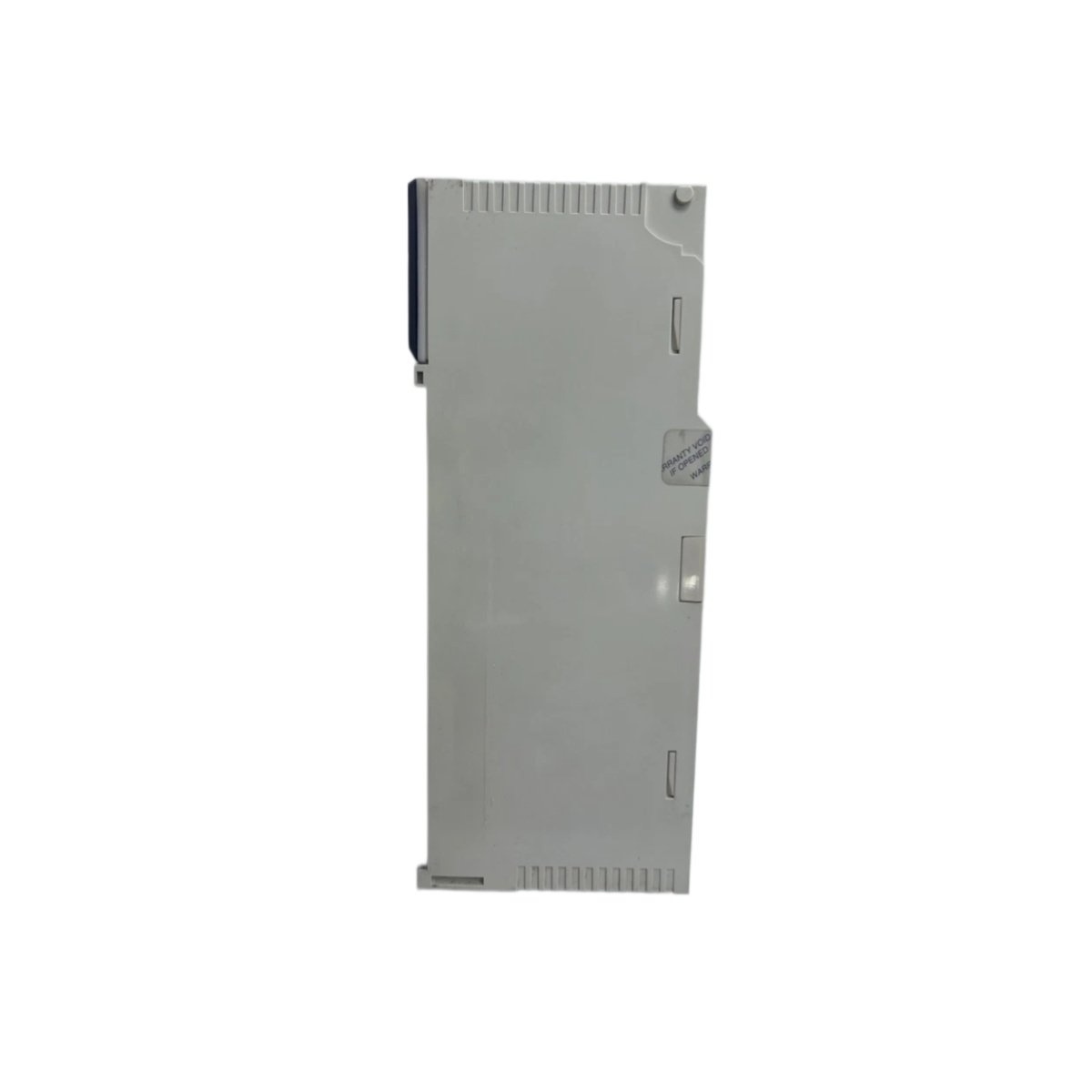

This Ethernet network module provides high-performance TCP/IP communication for your Quantum automation system. We engineered the 140NOC77101C to deliver reliable data exchange across plant-wide networks and enterprise systems.
| Parameter | Specification |
|---|---|
| Product Type | Ethernet TCP/IP Communication Module |
| Dimensions | 130 mm x 100 mm x 85 mm (W x H x D) |
| Weight | 0.52 kg |
| Supply Voltage | 5 V DC (from backplane) |
| Power Consumption | 5.5 W typical |
| Network Interface | 1 x RJ-45 Ethernet port (10/100Base-T) |
| Transmission Speed | 10/100 Mbps auto-negotiation |
| Protocol Support | TCP/IP, UDP, Modbus TCP, HTTP, FTP, SNMP, SMTP |
| Max Connections | 64 simultaneous TCP/IP sessions |
| Memory Buffer | 2 MB for data exchange and web pages |
| Email Alerts | Built-in SMTP client for alarm notifications |
| Web Server | Embedded with custom HTML page support |
| FTP Server | Built-in for remote file transfer and firmware updates |
| Cable Type | Category 5 or better (shielded recommended) |
| Max Cable Length | 100 meters (per segment) |
| Diagnostics | 5 LEDs (link, activity, status, fault, collision) |
| Operating Temp. | 0 °C to 60 °C |
| Mounting | Rack-mounted via backplane connector |
| Certifications | CE, UL, CSA, and ATEX Zone 2 approved |
High-Performance Network Connectivity

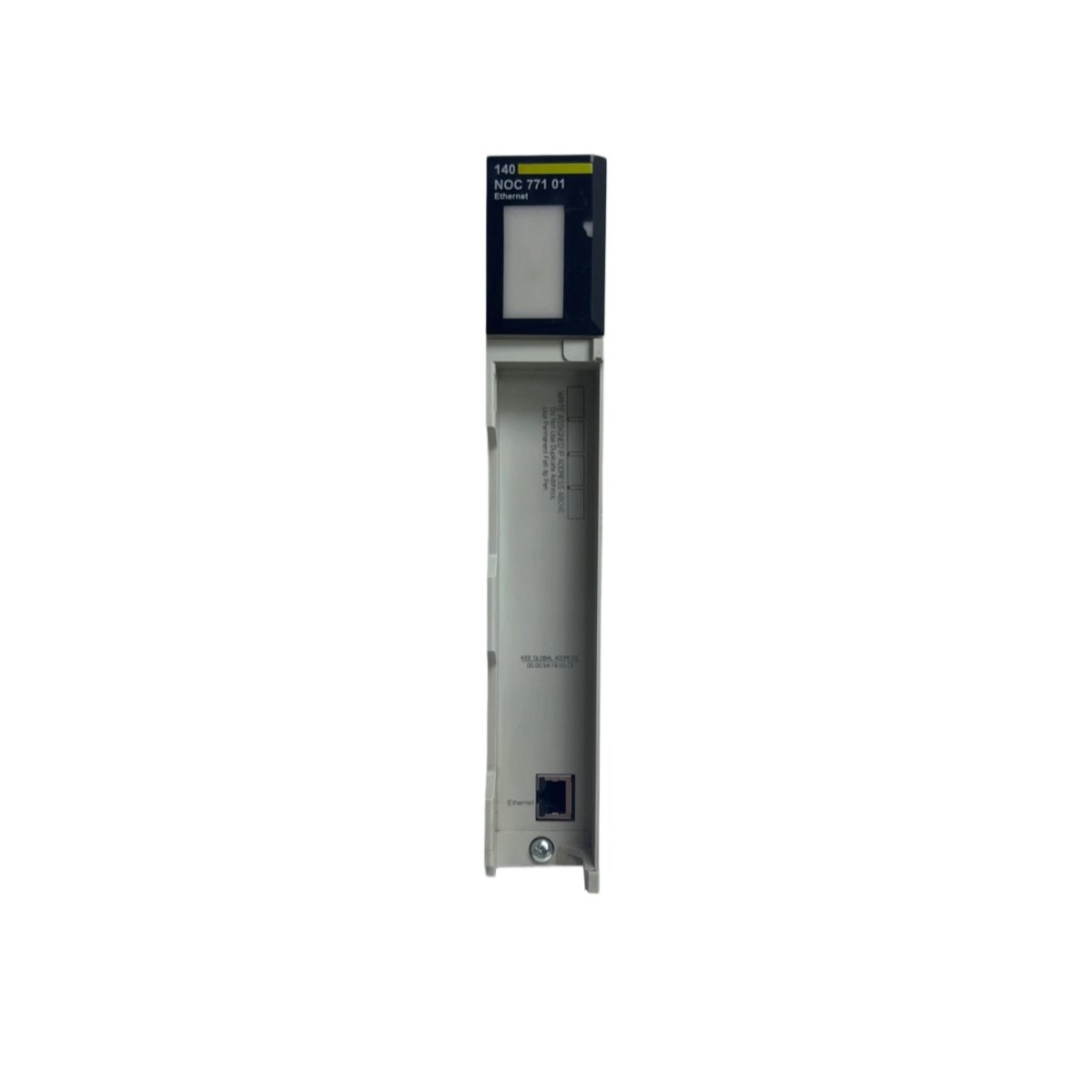

The 140NOC77101C provides a 10/100Base-T Ethernet port with auto-negotiation and auto-crossover. This interface connects your Quantum PLC to plant-wide control networks and enterprise information systems. The module supports up to 64 simultaneous TCP/IP sessions for concurrent multi-client communication. Therefore, you can exchange data with HMIs, SCADA, MES, and ERP systems simultaneously.
Comprehensive Protocol Suite
This Ethernet module supports TCP/IP, UDP, Modbus TCP, HTTP, FTP, SNMP, and SMTP protocols. The Modbus TCP enables seamless integration with third-party devices and I/O systems. The SNMP interface allows network management tools to monitor module status and traffic statistics. The SMTP client sends email alerts directly to operations and maintenance personnel.
Built-In Web and FTP Servers
The 140NOC77101C includes an embedded web server for browser-based access to PLC data. You can create custom HTML pages displaying real-time process values, alarms, and diagnostics. The built-in FTP server enables remote file transfers for data logging and firmware updates. This comprehensive feature set reduces the need for additional gateway devices.
Reliable Data Exchange and Memory Buffering
This communication module handles message routing and protocol conversion without burdening the main CPU. The 2 MB memory buffer stores web pages and temporary data for efficient retrieval. The module maintains stable operation even under heavy network traffic. Consequently, the 140NOC77101C supports demanding applications requiring high-speed data logging and supervisory control.
Advanced Diagnostic Capabilities
The 140NOC77101C features five LEDs providing instant visual feedback on network status. These indicators display link integrity, data activity, module health, faults, and collision detection. The module also supports SNMP traps for proactive fault notification to management systems. This diagnostic visibility simplifies troubleshooting and reduces mean-time-to-repair for network issues.
Details
| Weight | 0.52 kg |
|---|---|
| Dimensions | 130 × 100 × 85 mm |
