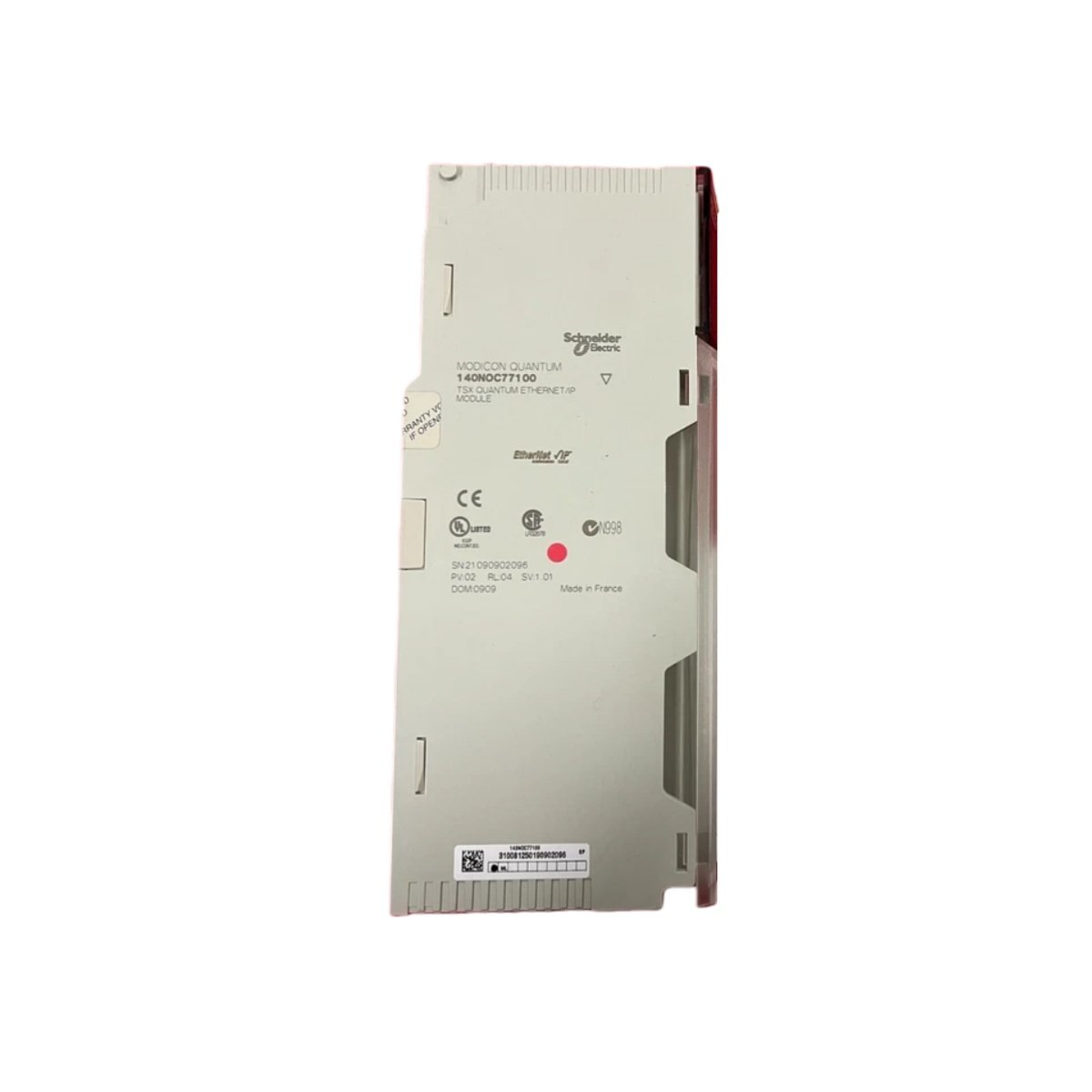

This Schneider Ethernet/IP network module connects Modicon Quantum PLCs to industrial networks. The SCHNEIDER 140NOC77100C enables high-speed data exchange between controllers and field devices. Its dedicated design supports real-time communication for demanding automation applications. This module suits distributed control and system integration projects.
Physical Dimensions and Mounting Specifications
The network module measures 230 mm in height and 25 mm in width. Its overall depth reaches 160 mm including the front connector. This unit weighs approximately 0.5 kilograms for stable rack installation. The housing supports standard DIN rail mounting in Quantum racks. The SCHNEIDER 140NOC77100C features an RJ45 connector for the Ethernet network interface. A 20-pin front connector handles additional signal wiring requirements.
Network and Communication Specifications
This module supports Ethernet/IP protocol for industrial automation communication. It handles data rates up to 100 Mbit/s for high-speed data transfer. The unit supports both implicit and explicit messaging for flexible communication. It manages up to 64 connections for extensive network integration. The SCHNEIDER 140NOC77100C provides 1024 bytes of input and 1024 bytes of output data. It supports DHCP and static IP addressing for flexible configuration. A built-in web server enables remote diagnostics via standard browsers.
Electrical Characteristics and Diagnostic Features

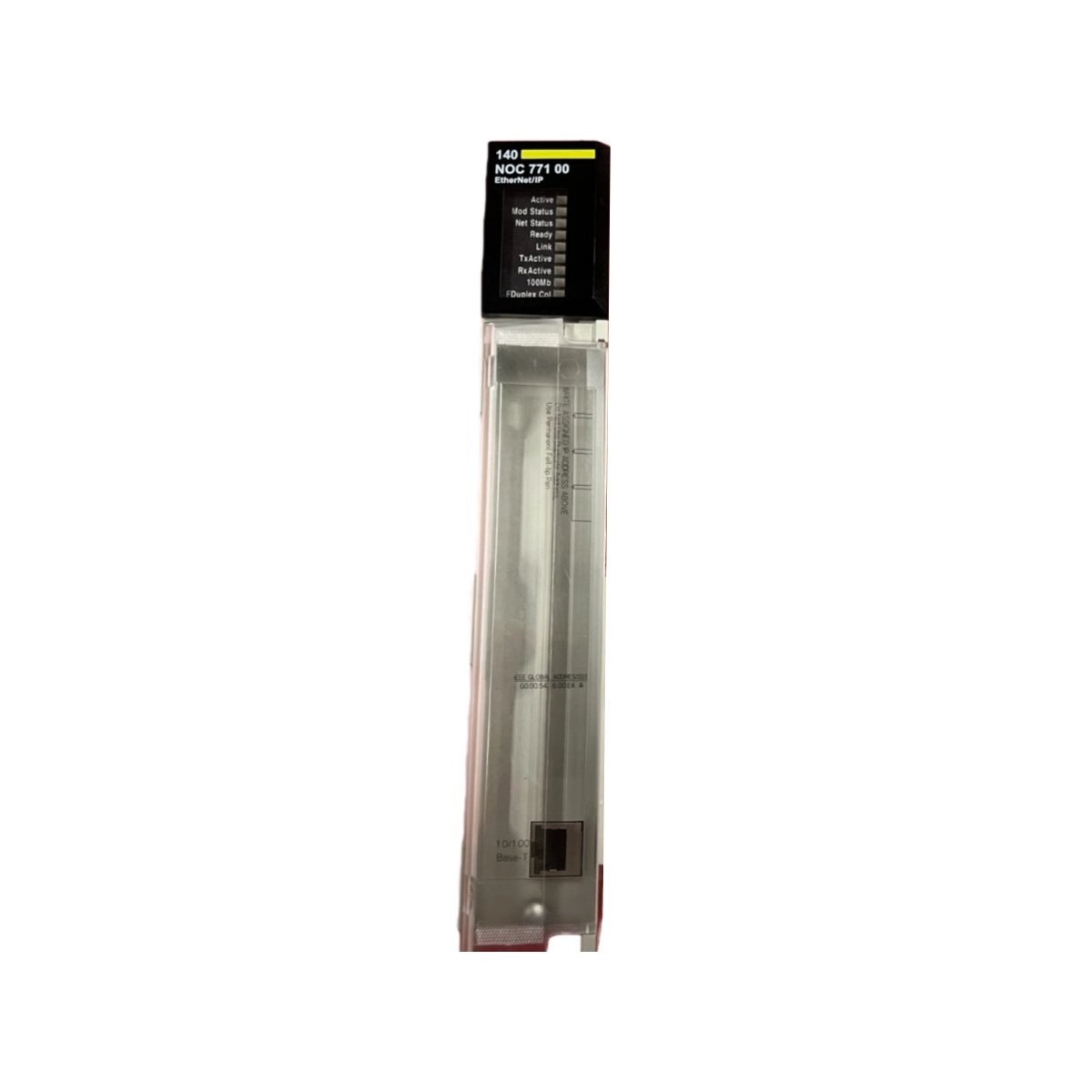

The unit draws a typical current of 250 mA from the 24 V DC supply. It includes a 220 µF capacitor for energy storage during brief interruptions. The SCHNEIDER 140NOC77100C features galvanic isolation for the Ethernet interface. This isolation withstands 1500 V for surge protection. Front panel LEDs indicate network status, activity, and fault conditions. Diagnostic functions monitor connection health and error statistics.
Detailed Specification Table
| Parameter | Specification |
|---|---|
| Dimensions (H x W x D) | 230 mm x 25 mm x 160 mm |
| Weight | Approx. 0.5 kg |
| Network Protocol | Ethernet/IP |
| Data Rate | 100 Mbit/s |
| Messaging Types | Implicit and explicit |
| Maximum Connections | 64 |
| Input Data Capacity | 1024 bytes |
| Output Data Capacity | 1024 bytes |
| IP Addressing | DHCP, static |
| Diagnostic Interface | Built-in web server |
| Supply Voltage | 24 V DC |
| Current Consumption | 250 mA (typical) |
| Energy Storage Capacitance | 220 µF |
| Isolation Voltage | 1500 V |
| Network Interface | RJ45 |
| Operating Temperature | 0°C to 60°C |
Application and Commissioning Guidelines
Mount this module in any available slot of the Quantum rack system. Connect the Ethernet cable to the RJ45 connector securely. Assign the IP address using the configuration software. The SCHNEIDER 140NOC77100C operates effectively between 0°C and 60°C. Configure the communication parameters using the manufacturer’s software tools. Select the appropriate IP address for network compatibility. Monitor the LEDs to verify network connectivity and data exchange.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
