Core Technical Specifications

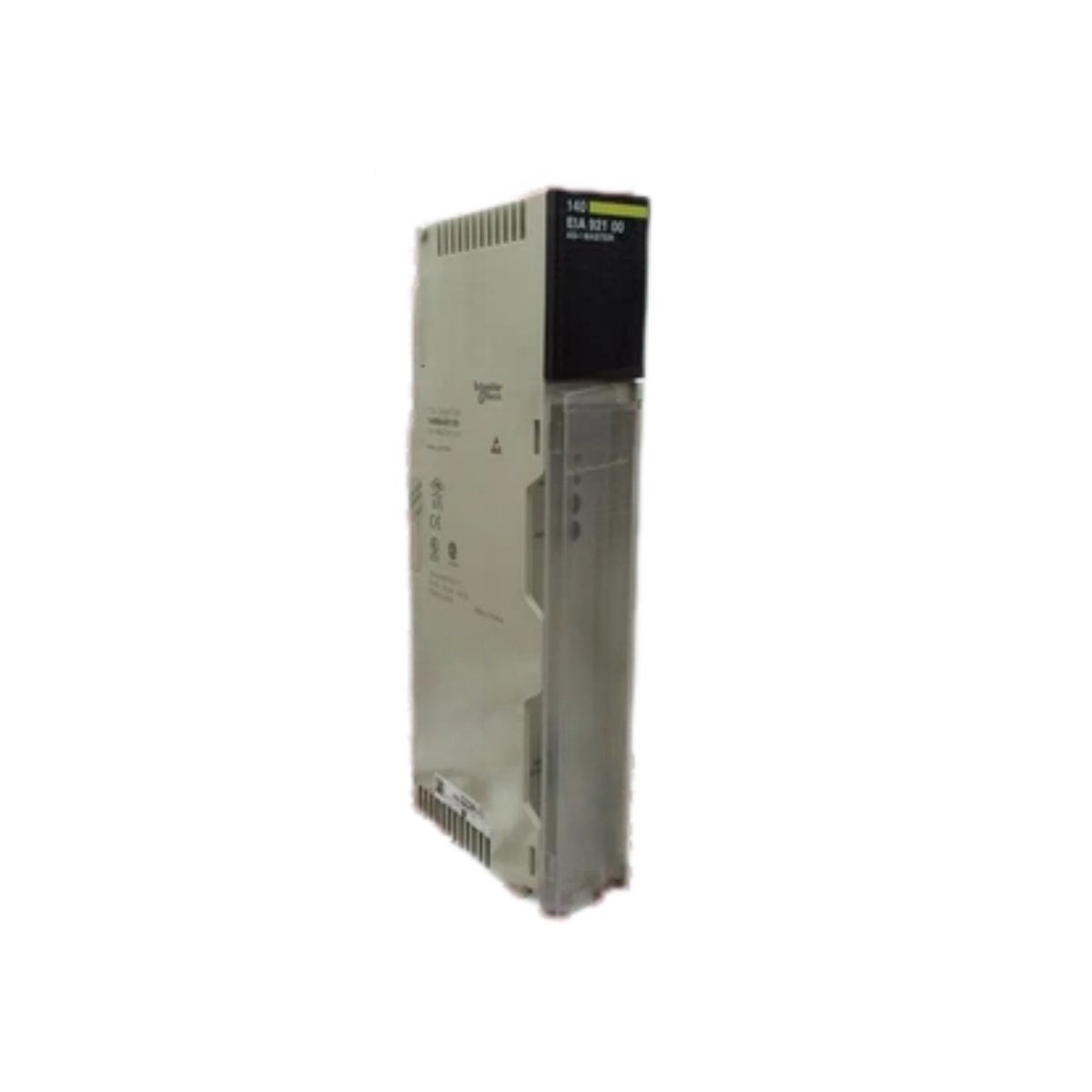

The 140EIA92100 belongs to the Schneider Modicon Quantum family and functions as an AS-Interface master module. It manages communication between the Quantum PLC and up to 62 AS-i slave devices. Therefore, system integrators rely on this module for simplified wiring in distributed I/O networks.
Full Parameter Table
| Parameter | Specification |
|---|---|
| Model | 140EIA92100 |
| Series | Modicon Quantum |
| Function | AS-Interface Master Module |
| Maximum Slaves | 62 per network |
| Cycle Time | 5 ms typical for 31 slaves |
| Communication Standard | AS-Interface V2.1 |
| Backplane Current | 600 mA at 5 VDC |
| Isolation | 500 VAC channel-to-bus |
| Network Cable | Unshielded two-wire flat cable |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Weight | Approximately 0.45 kg |
| Dimensions | 160 mm × 100 mm × 40 mm |
Physical Design and Interface Features
The 140EIA92100 uses a rugged plug-in housing that fits standard Quantum backplanes. Its front panel carries status LEDs for network health and fault conditions. Furthermore, the module provides an integrated AS-i power supply connection point. Meanwhile, hot swap replacement lets technicians service the module without stopping the line.
System Integration Notes
This master module works together with Quantum CPUs and AS-i compatible sensors and actuators. Consequently, it fits seamlessly into existing Modicon architectures. Engineers configure the network through standard Schneider programming software. However, users should always verify slave addressing before commissioning a new segment.
