The Schneider 140EDK77100 Modicon Quantum Ethernet Kit provides a comprehensive connectivity solution for industrial networks. This kit includes everything for establishing reliable Ethernet communication in Quantum control systems. The package measures 320 mm in length, 240 mm in width, and 70 mm in height.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | 140EDK77100 |
| Category | Ethernet Kit / Communication Accessory |
| Kit Components | 1 × 140NOE77100 module, 1 × CAT5e cable (2 m), 1 × CD-ROM (software/drivers) |
| Module Type | 140NOE77100 (Ethernet communication module) |
| Communication Protocol | Modbus TCP/IP |
| Ethernet Ports | 1 × RJ45 (10/100 Mbps) |
| Supported Services | Web server, SNMP, email alerts |
| Cable Type | Shielded CAT5e (2 m) |
| Connector Type | RJ45 (both ends) |
| Software Media | CD-ROM (drivers, configuration tools) |
| Software Compatibility | Unity Pro, Concept, ProWORX |
| Power Supply (module) | 5 V DC (backplane) |
| Power Consumption (module) | 3.2 W |
| Module Dimensions (H×W×D) | 140 × 40 × 130 mm |
| Module Weight | 0.48 kg |
| Total Kit Weight | 0.85 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Component Count | 3 main items (module, cable, CD) |
Ethernet Module and Communication Features

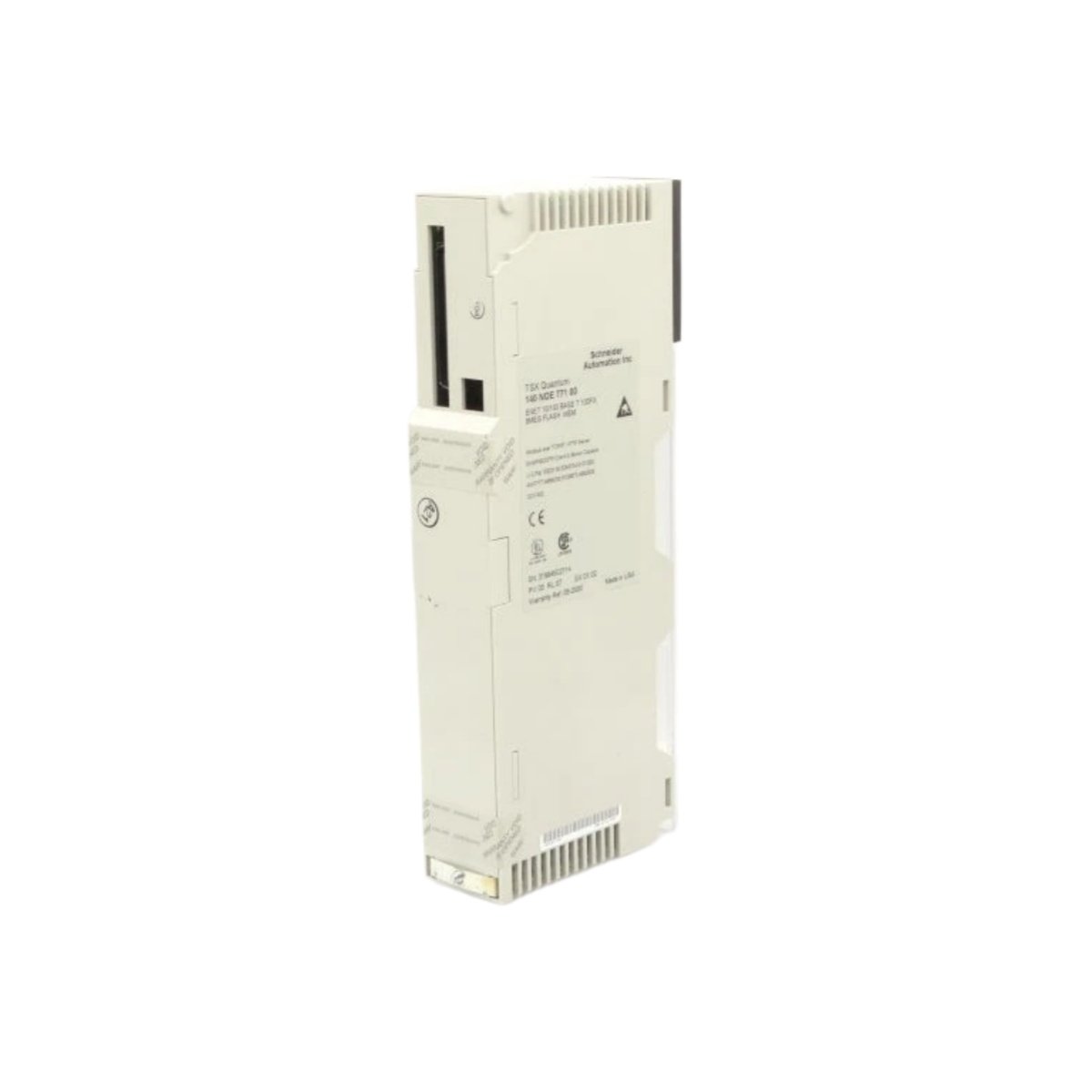

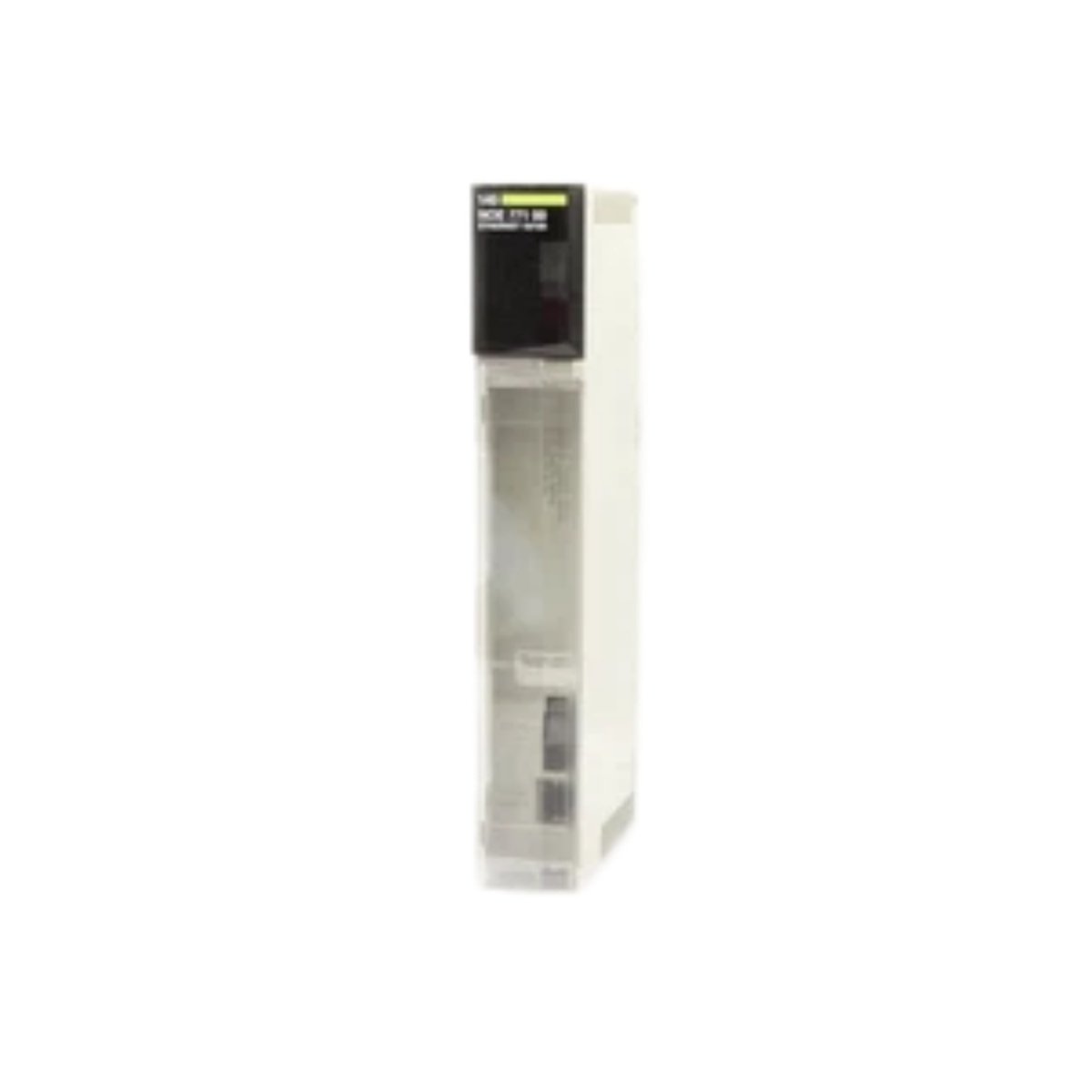

The Schneider 140EDK77100 includes the 140NOE77100 Ethernet module for Quantum backplane installation. This module supports Modbus TCP/IP for seamless connectivity to plant networks. The 10/100 Mbps auto-negotiating port ensures compatibility with existing infrastructure. The module includes a web server for remote diagnostics and status monitoring.
Network Services and Remote Access
The Ethernet module provides SNMP support for network management and performance monitoring. Email alert functionality notifies engineers of fault conditions automatically. Users can access process data through standard web browsers for remote visibility. These services simplify system maintenance and reduce response times to plant events.
Software and Configuration Support
The included CD-ROM contains drivers and configuration tools for Unity Pro and Concept environments. The software simplifies IP addressing and communication parameter setup. Engineers can integrate the module into new or existing applications efficiently. The kit supports ProWORX for legacy system integration and migration projects.
Cable and Physical Connectivity
The 2-meter shielded CAT5e cable provides a reliable physical connection to network switches. The cable reduces electromagnetic interference in industrial environments. RJ45 connectors on both ends ensure universal compatibility with standard network hardware. The cable length suits typical cabinet installations with nearby network outlets.
Installation and Module Mounting
Insert the Schneider 140EDK77100 module into a free slot in the Modicon Quantum rack. Secure the module with the retaining clips for vibration-resistant installation. Connect the CAT5e cable from the module’s RJ45 port to the network switch. The complete kit simplifies the ordering and installation process for engineers.
Power Supply and Backplane Integration
The Ethernet module draws 3.2 W from the 5 V backplane supply during normal operation. The module operates without a separate field power supply. This low consumption suits typical Quantum power budgets. The backplane integration ensures deterministic communication with the CPU.
Details
| Weight | 0.25 kg |
|---|---|
| Dimensions | 130 × 100 × 20 mm |
