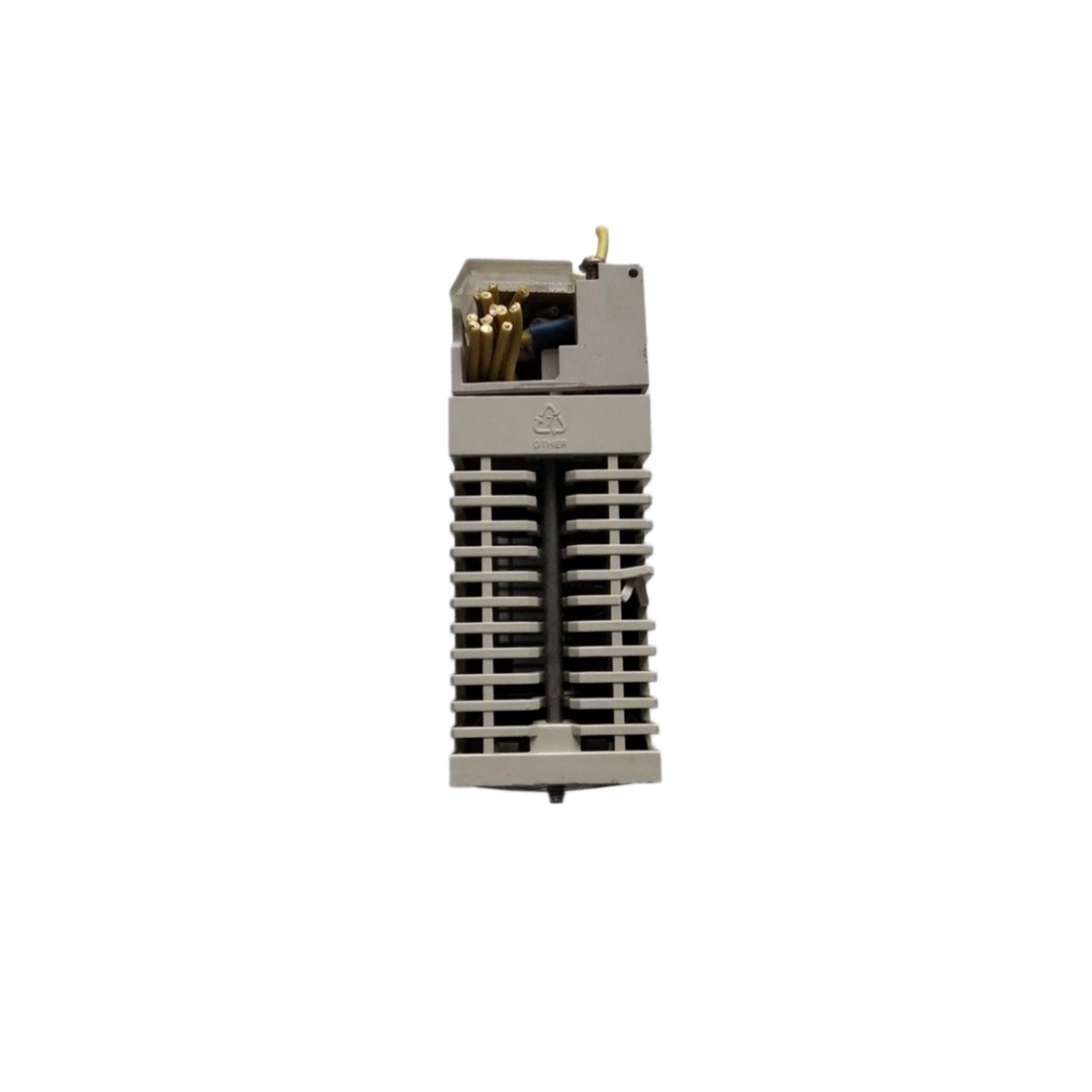

The Schneider 140DSI35300C discrete input module captures digital field signals for industrial automation systems. Engineers select this unit for dependable status monitoring across manufacturing environments. Moreover, its rugged housing supports straightforward integration into existing control panels.

Interface and Connectivity

The module links to the backplane connector for high-speed data exchange. Additionally, it provides thirty-two input points for discrete field devices. These terminals accept 24 VDC signals, therefore covering common industrial wiring standards. Field wiring uses screw-terminal blocks that reduce installation time considerably.

Physical Dimensions and Weight

The unit measures 40 mm in width, 125 mm in height, and 110 mm in depth. Furthermore, it weighs approximately 180 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.

Component Count and Energy Storage

The 140DSI35300C integrates thirty-two optocoupler isolation circuits for channel protection. It also contains one filtering capacitor rated at 220 µF for stable readings. Therefore, this energy storage element suppresses ripple during rapid signal changes. The board carries roughly 200 discrete components for dependable operation.

Technical Specifications Table

Why This Module Suits Industrial Applications

System integrators value the 140DSI35300C for its stable signal acquisition and simple wiring. Meanwhile, the optocoupler isolation protects sensitive circuits from voltage spikes. As a result, system reliability improves while maintenance costs decrease.
