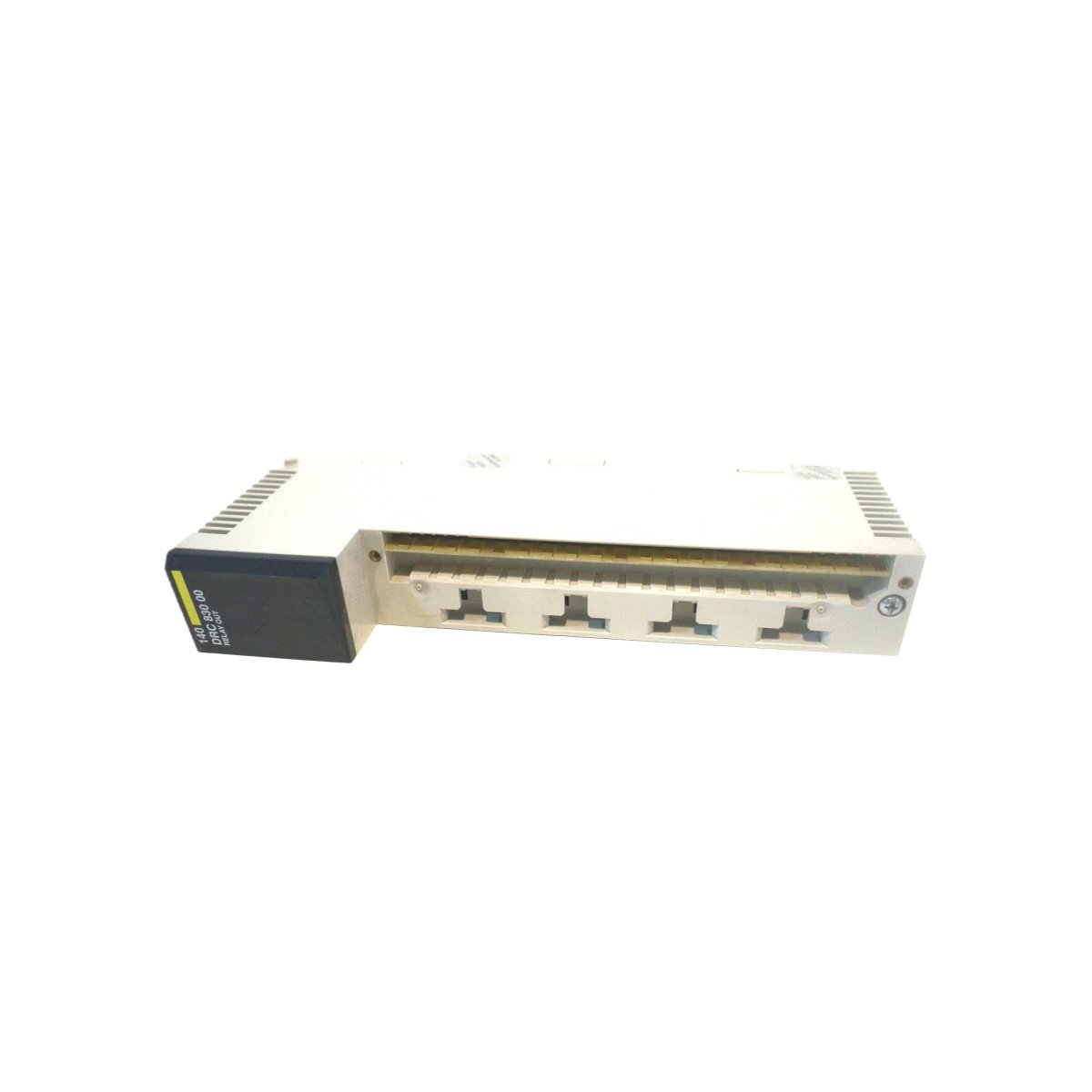

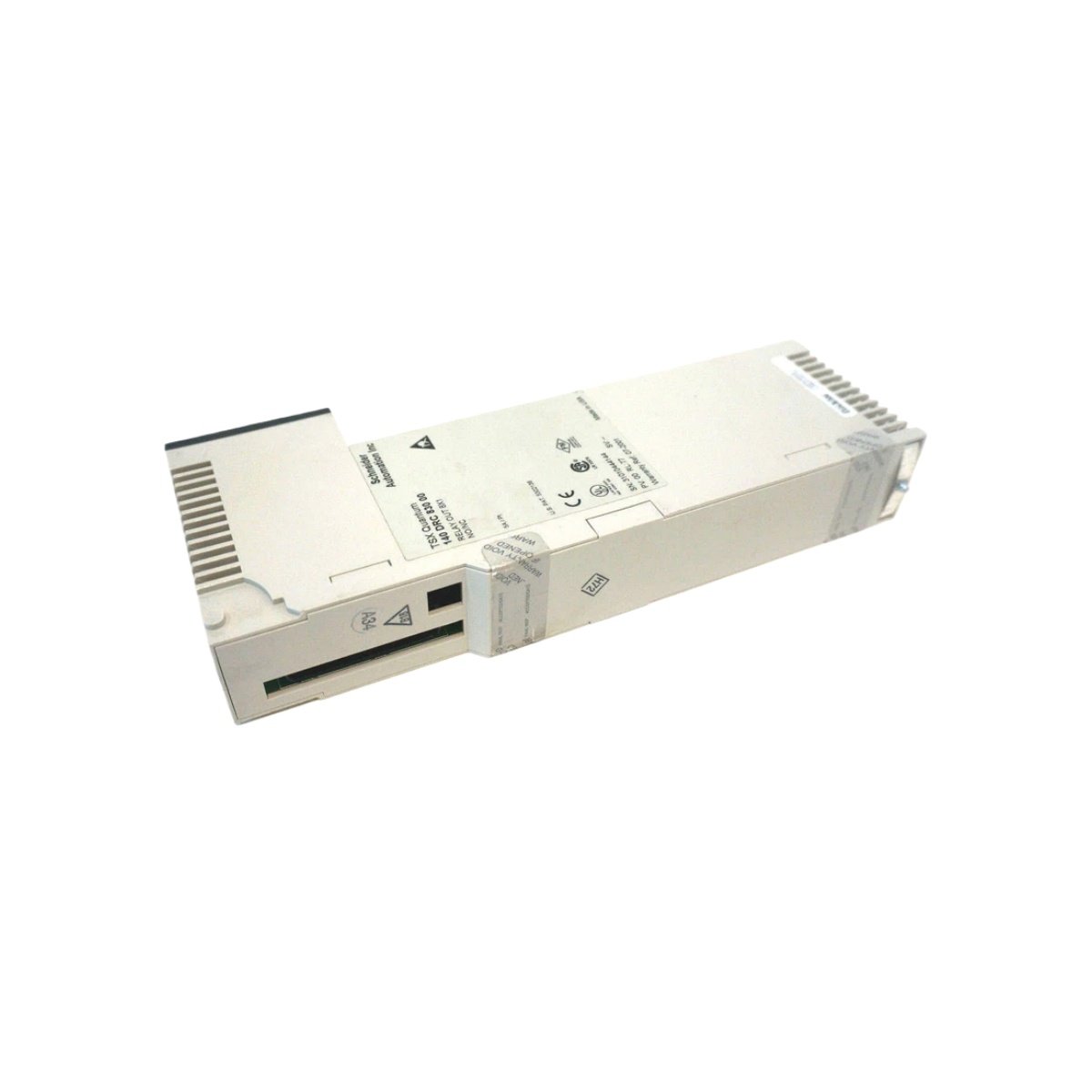

This Schneider discrete output module provides reliable actuator control for Modicon PLC systems. The SCHNEIDER 140DRC83000C drives up to 32 output channels for demanding applications. Its robust design ensures dependable switching under continuous industrial use. This module suits conveyor systems, packaging lines, and process control applications.

Physical Dimensions and Mounting Specifications

The module measures 230 mm in height and 25 mm in width. Its overall depth reaches 160 mm including the front connector. This unit weighs approximately 0.55 kilograms for stable rack installation. The housing supports standard DIN rail mounting in Modicon racks. The SCHNEIDER 140DRC83000C features a 48-pin front connector for all output wiring. This connector accepts conductor cross-sections from 0.5 mm² to 2.5 mm².

Output Specifications and Electrical Characteristics

Each output channel provides a switching capacity of 0.5 A at 24 V DC. The total current per module reaches 8 A across all active channels. Output voltage ranges from 20.4 V to 28.8 V DC for reliable operation. The module draws a typical current of 180 mA from the backplane supply. The SCHNEIDER 140DRC83000C includes internal flyback diodes for inductive load protection. Each channel features short-circuit protection with automatic current limiting. An LED indicator shows the status of each individual output channel.

Isolation and Diagnostic Features

Optocoupler isolation separates the logic circuits from the output field wiring. This isolation withstands 500 V AC between the backplane and outputs. A common alarm output signals fault conditions for system monitoring. The module provides thermal protection against overload conditions. The SCHNEIDER 140DRC83000C includes diagnostic read-back for output verification. Output turn-on delay measures approximately 0.5 milliseconds for fast response. Turn-off delay reaches 1 millisecond for consistent switching performance.

Detailed Specification Table

Application and Wiring Guidelines

Mount this module in any available slot of the Modicon rack system. Connect the output devices to the designated terminals on the front connector. Use twisted-pair cables for long-distance wiring to reduce interference. The SCHNEIDER 140DRC83000C operates effectively between 0°C and 60°C. Ensure adequate clearance around the module for proper heat dissipation. Wire the common return line to the 24 V DC ground terminal. Install suppression diodes across inductive loads for extended contact life. Monitor the diagnostic LEDs to confirm proper output activation.
