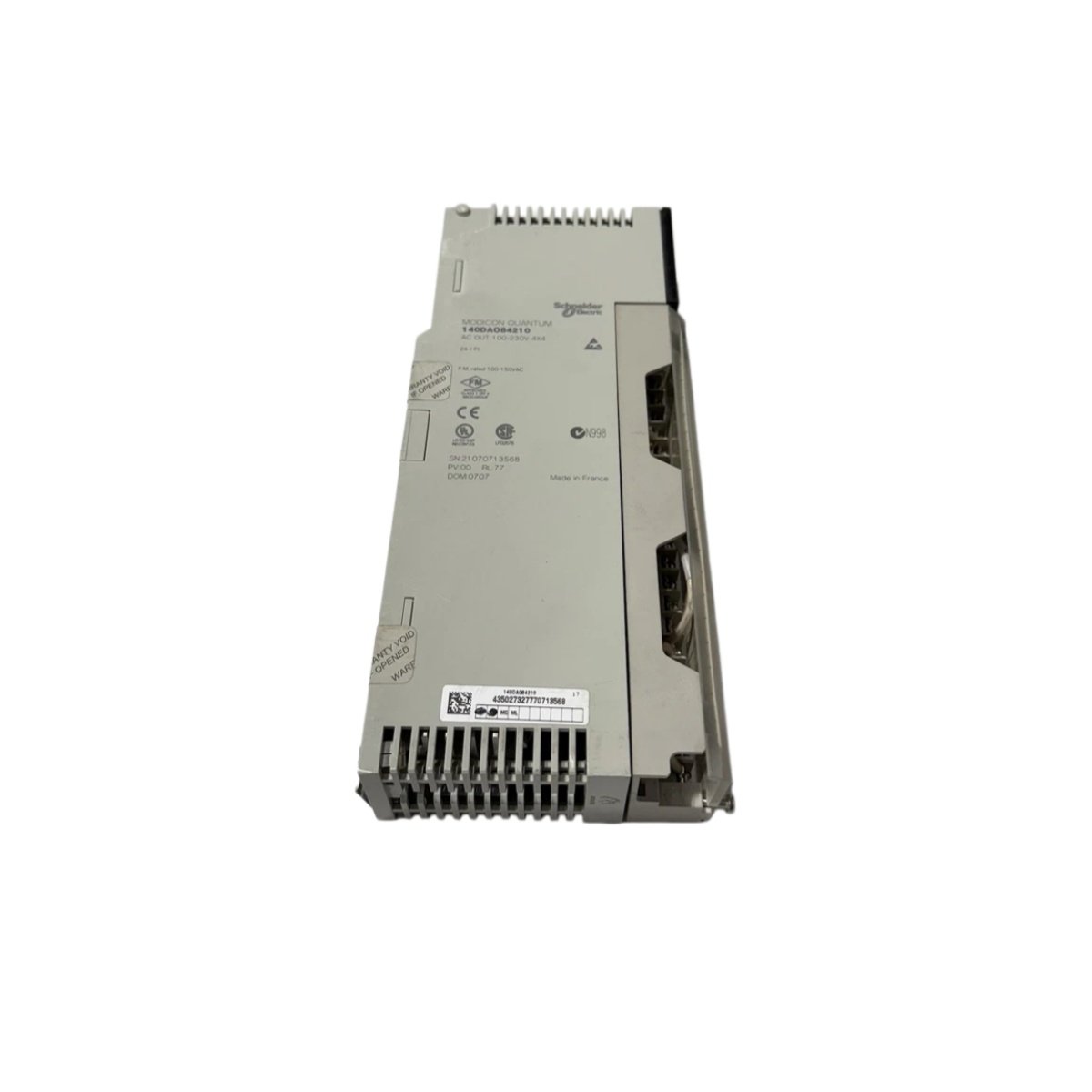

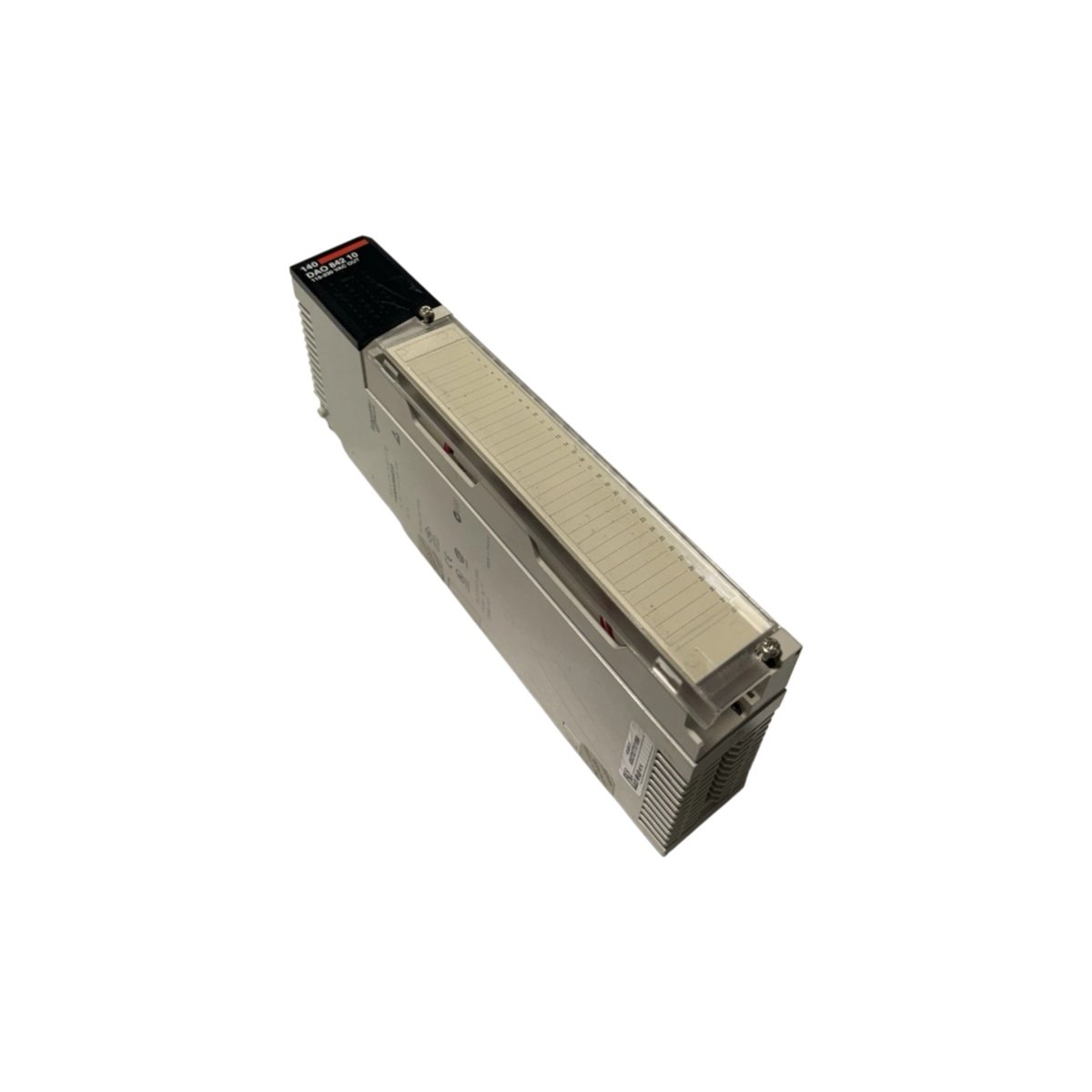

The Schneider 140DAO84010C discrete output module drives field devices for industrial automation systems. Engineers select this unit for dependable switching across manufacturing environments. Moreover, its rugged housing supports straightforward integration into existing Modicon racks.
Interface and Connectivity
The module links to the backplane connector for high-speed data exchange. Additionally, it provides sixteen output points for relays, solenoids, and indicators. These terminals handle 24 VDC signals, therefore covering common industrial switching requirements. Field wiring uses screw-terminal blocks that reduce installation time considerably.
Physical Dimensions and Weight
The unit measures 40 mm in width, 125 mm in height, and 110 mm in depth. Furthermore, it weighs approximately 180 grams, which reduces panel load. Consequently, technicians mount it easily on standard DIN rails.
Component Count and Energy Storage
The 140DAO84010C integrates sixteen optocoupler isolation circuits for output protection. It also contains one filtering capacitor rated at 220 µF for stable switching. Therefore, this energy storage element suppresses ripple during rapid load changes. The board carries roughly 150 discrete components for dependable operation.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Model | 140DAO84010C |
| Category | Discrete Output Module |
| Output Points | 16 |
| Rated Voltage | 24 VDC |
| Dimensions (W×H×D) | 40 × 125 × 110 mm |
| Weight | ~180 g |
| Connector Type | Backplane / Screw Terminal |
| Energy Storage | 220 µF Capacitor |
| Operating Temperature | 0°C to 60°C |
Why This Module Suits Industrial Applications
System integrators value the 140DAO84010C for its stable switching and simple wiring. Meanwhile, the optocoupler isolation protects sensitive circuits from voltage spikes. As a result, system reliability improves while maintenance costs decrease.
