32-Channel Digital Input Module for Quantum Systems

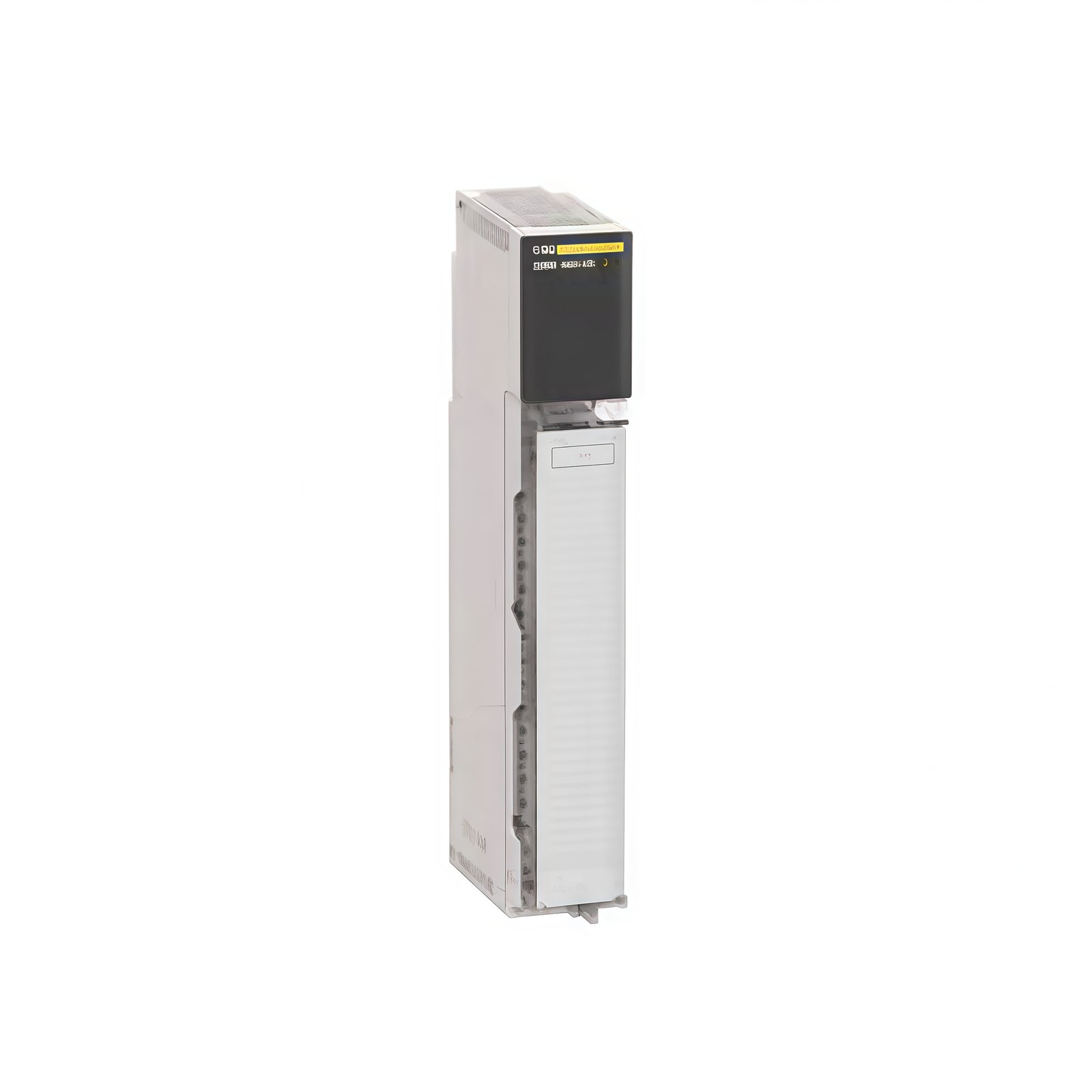

The Schneider 140DAI75300C functions as a discrete input module within the Modicon Quantum automation platform. This module interfaces with field sensors, pushbuttons, and limit switches. Its 32-channel design supports high-density digital signal acquisition for industrial control applications.

Channel Configuration and Input Specifications

This discrete input module features 32 channels with a 24 VDC nominal voltage rating. Each channel provides optical isolation to protect the backplane from field-side interference. The module supports both source and sink input configurations for flexible wiring. Furthermore, the built-in filters suppress electrical noise for reliable signal acquisition. Consequently, this module ensures stable readings from field devices.

Hardware Integration and Physical Specifications

The 140DAI75300C mounts directly on the Quantum backplane via the X-bus interface. Its dimensions fit standard Quantum rack slots for straightforward installation. The module draws 300 mA from the backplane supply for normal operation. Additionally, front-panel LEDs display individual channel status and module health. For this reason, maintenance personnel can quickly troubleshoot field wiring issues.

Environmental Ratings and System Compatibility

This discrete input module operates reliably from 0 °C to 60 °C ambient temperature. Its robust construction withstands vibration and humidity in industrial settings. The module integrates seamlessly with Quantum processors and power supplies. Furthermore, the module supports hot-swapping for minimal system downtime. Consequently, this module provides a dependable input interface for Quantum-based systems.
