Product Overview

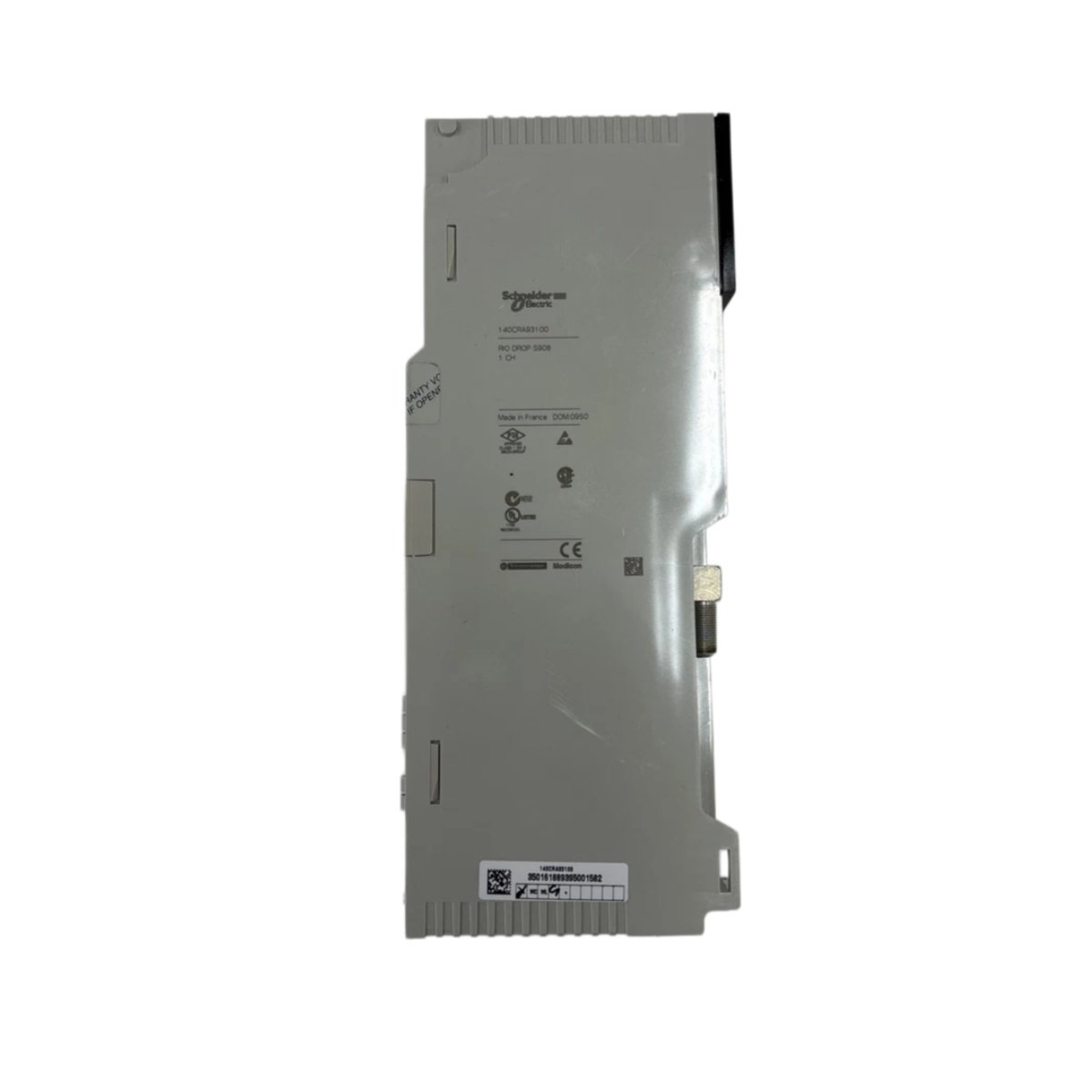

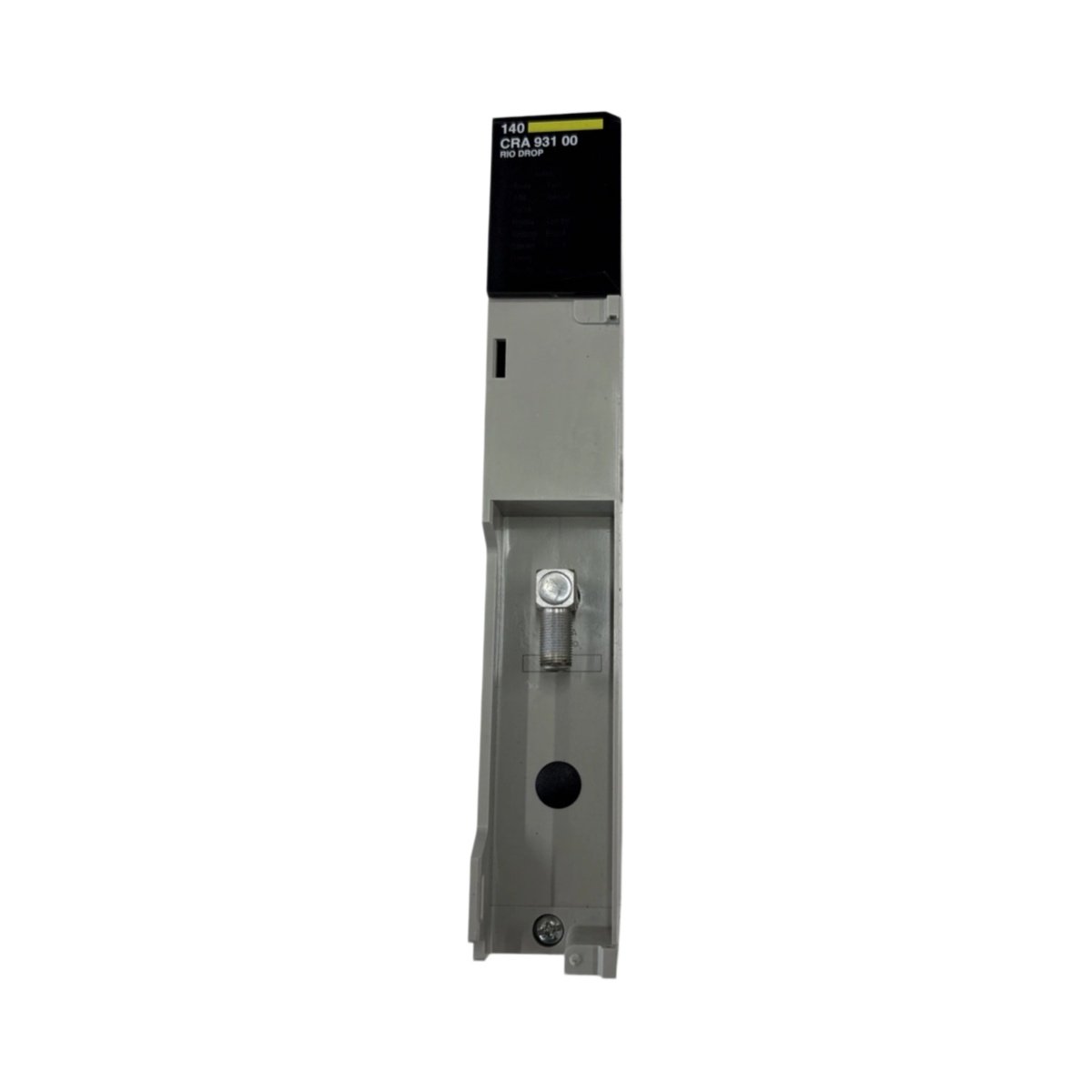

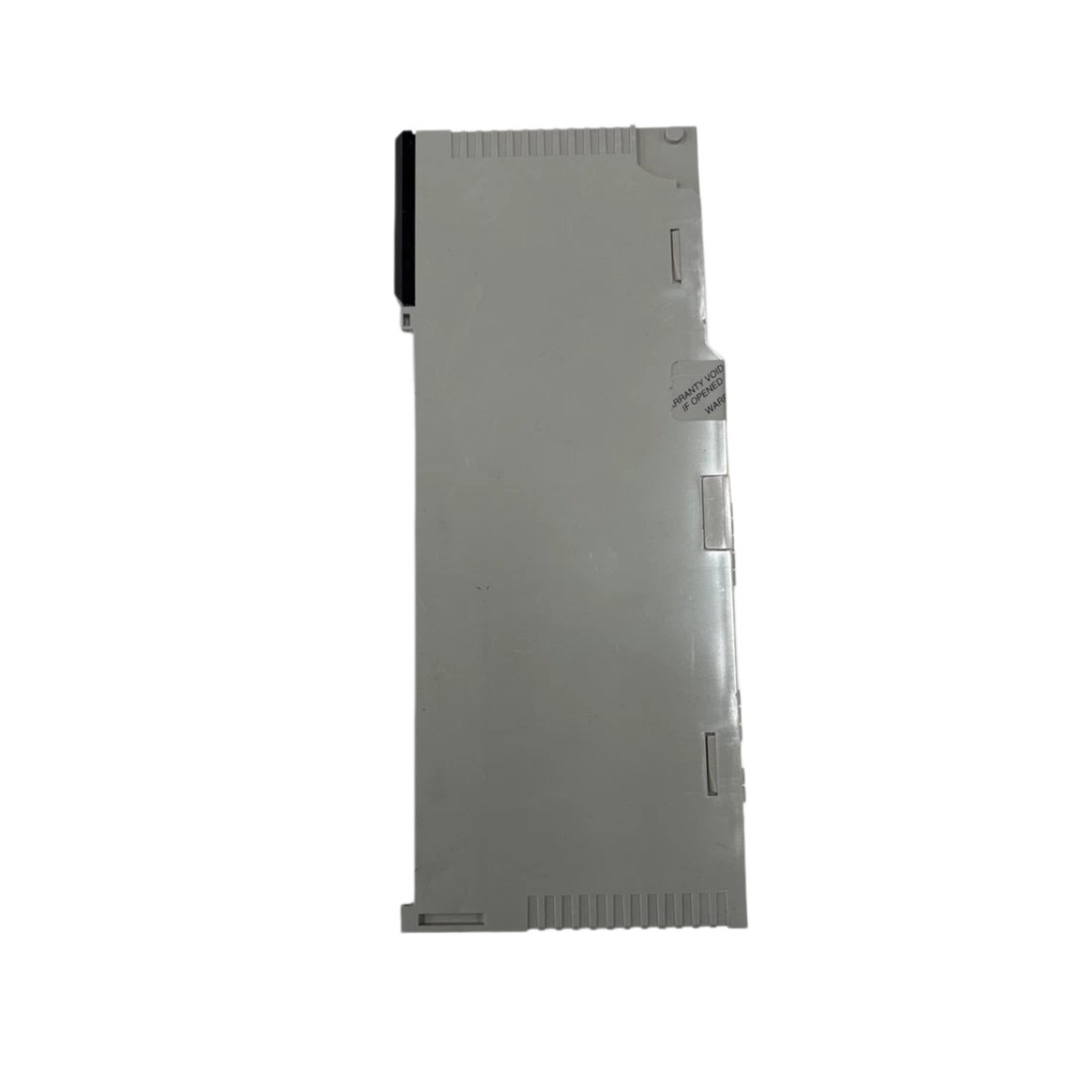

This remote I/O drop adapter connects distributed field devices to the Modicon Quantum controller. It enables seamless communication between the main processor and remote I/O stations. The 140CRA93101C serves as the interface between the RIO network and local I/O modules. Its compact design fits directly into Quantum I/O racks without additional hardware. This adapter significantly reduces cabling costs in large distributed control systems.

Technical Specifications

The 140CRA93101C measures 23.5 cm in height, 9.8 cm in width, and 14.5 cm in depth. It weighs approximately 1.1 kg, including all mounting brackets and connectors. This adapter draws 420 mA from the +5 VDC backplane supply during normal operation. It features one RIO communication port for connecting to the main controller or upstream devices. The unit also includes a second RIO port for daisy-chaining additional drop adapters. Its onboard memory stores up to 64 I/O words for data buffering purposes. The adapter supports data transfer rates of 1.544 Mbps on the RIO network. It provides optical isolation of 2500 VAC between the network and backplane circuits. The front panel includes LED indicators for power, communication, and fault status. The unit also features diagnostic LEDs for each I/O module in the rack.

Network Architecture and Drop Configuration

This adapter functions as a drop on the remote I/O highway, supporting up to 31 drops per network. It automatically synchronizes data with the main controller during each scan cycle. The 140CRA93101C handles both input and output data transfers simultaneously. Users can configure the drop address through rotary switches on the front panel. The adapter also supports hot-insertion of I/O modules without system interruption.

Physical and Electrical Parameters

Installation and Network Setup

Install the 140CRA93101C into any available slot within the Quantum I/O rack. Connect the RIO cable from the main controller to the first port on this adapter. Set the drop address using the front-panel rotary switches before powering up. The adapter automatically establishes communication with the controller upon system startup. Connect additional drops through the second port for network expansion. Monitor the LED indicators to verify proper network operation and data exchange.

Typical Applications

This adapter serves large industrial facilities with geographically distributed I/O points. It connects field devices in remote substations, tank farms, and conveyor systems. The 140CRA93101C also supports water treatment plants and material handling operations. Its network architecture suits applications requiring centralized control with distributed I/O.
