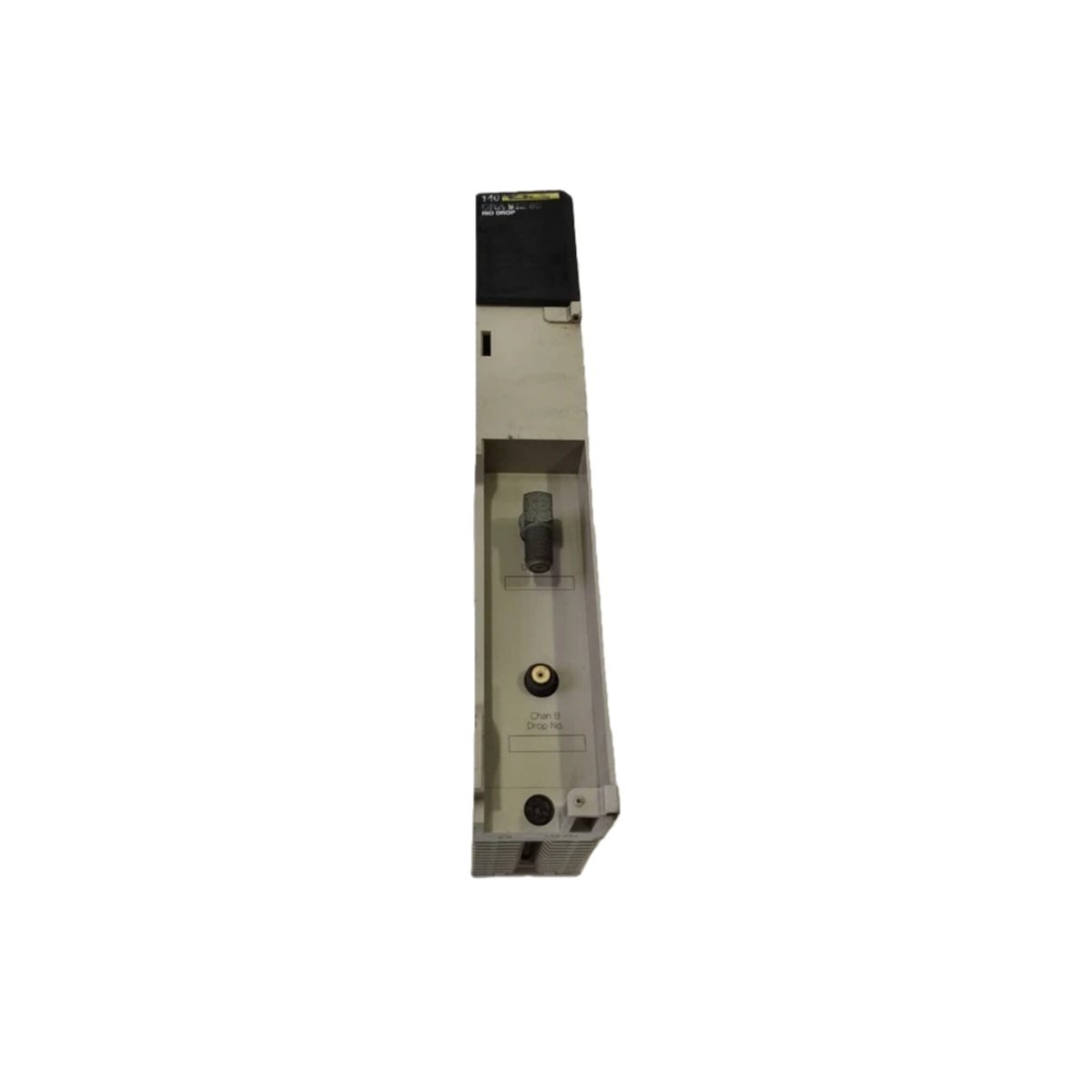

This I/O module provides remote device connectivity for Modicon Quantum PLC systems. It transfers digital and analog signals between field devices and the main controller. Therefore, this component suits distributed automation architectures in large facilities.

Physical Dimensions and Weight Specifications

The Schneider 140CRA21100C occupies one standard slot in the Quantum rack. Its housing measures 235 mm in depth for backplane connectivity. The module weighs approximately 0.48 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Schneider 140CRA21100C provides a 12-pin terminal block for field wiring. A 50-pin backplane connector supplies power and data from the CPU. The front panel carries LED indicators for network and module status. Hence, operators can verify communication health at a quick glance.

Component Count and Channel Architecture

This I/O module contains one main board with a dedicated communication processor. The board holds 32 digital input channels for 24V DC sensors. You will also find 32 digital output channels for actuator control. An onboard isolation barrier separates the field side from the backplane.

Energy Storage and Power Consumption

The Schneider 140CRA21100C draws 250 mA from the 5V backplane supply. It also requires 150 mA from an external 24V supply for field circuits. A small capacitor bank filters noise on the output power rails. This storage prevents false triggering from voltage transients.

Network Performance and Diagnostics

The module handles up to 2000 I/O words per second on the network. It includes built-in watchdog timers for communication supervision. Users can read detailed diagnostics via the PLC programming software. This feature reduces downtime during field device troubleshooting.
