Core Technical Specifications

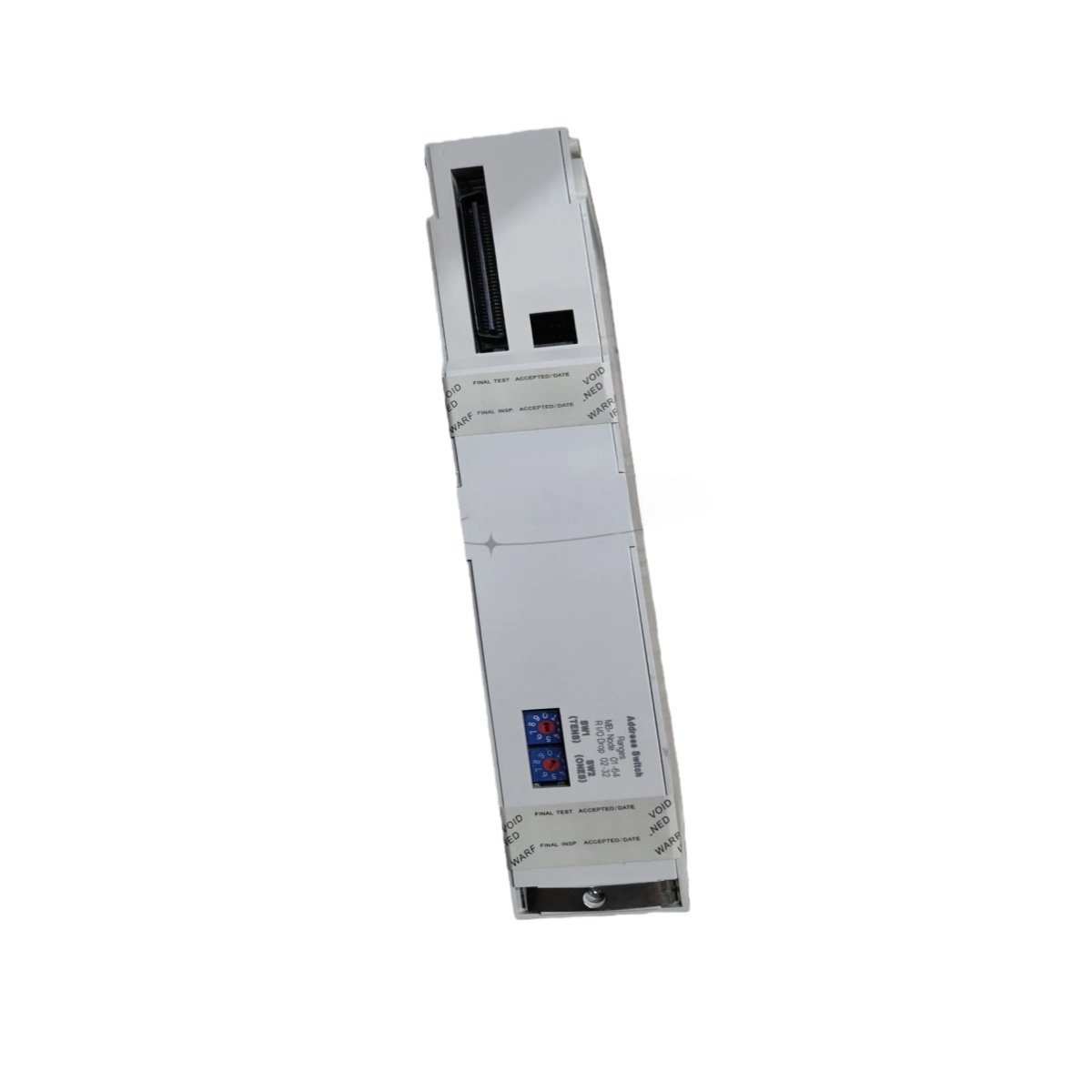

The 140CPU53414AC processor module functions as the central controller for Modicon Quantum automation systems. This unit measures 140 millimeters in height, 40 millimeters in width, and 150 millimeters in depth, with a total weight of approximately 0.58 kilograms. The processor incorporates a 32-bit microcontroller operating at 66 MHz for fast program execution. It provides 2 megabytes of battery-backed RAM for user applications and 1 megabyte of flash memory for firmware storage.

Processing Power and Program Execution

The 140CPU53414AC executes user logic programs at a typical speed of 0.2 milliseconds per 1,000 instructions. It supports all five IEC 61131-3 programming languages for maximum application flexibility. This processor handles up to 1024 discrete I/O points and 128 analog channels through the backplane bus. It utilizes a lithium 3-volt backup battery to retain application code and data during power outages. The battery maintains memory content for a minimum of 10 years under normal operating conditions.

Communication and Connectivity Features

This processor includes one RS-232 serial port for programming terminal connections and system diagnostics. It also provides one RS-485 port supporting Modbus protocol for communication with remote devices. The 140CPU53414AC exchanges data with I/O modules through the high-speed backplane bus at 10 megabytes per second. It supports both local and remote I/O configurations for distributed control architectures. The front panel features LED indicators for run, stop, fault, and battery status monitoring.

Memory Architecture and Expansion Options

The processor stores user programs and configuration data in 2 megabytes of battery-backed SRAM. It also contains 1 megabyte of flash memory for storing firmware and operating system code. The 140CPU53414AC includes a PCMCIA Type I/II slot for memory expansion or application storage. Users can insert additional memory cards for program backup or data logging purposes. This slot also supports firmware upgrades without requiring a complete system replacement.

Installation and Physical Characteristics

You can install this processor into any standard Quantum backplane using its single-slot form factor. Its compact 40-millimeter width allows high-density configurations in space-constrained control cabinets. The unit includes a locking mechanism for secure attachment to the backplane connector. The front face provides easy access to programming ports and PCMCIA card slot. Its robust metal housing provides adequate shielding against electromagnetic interference in industrial environments.

Integration and Operational Flexibility

The 140CPU53414AC supports hot-swapping of I/O modules without disrupting ongoing program execution. You can download or modify application programs through the serial programming port during normal operation. This processor allows you to configure task priorities for time-critical control loops and background processing. It also provides built-in self-diagnostic routines that verify hardware integrity on every power-up cycle. The module also supports remote troubleshooting through the Modbus communication port.
