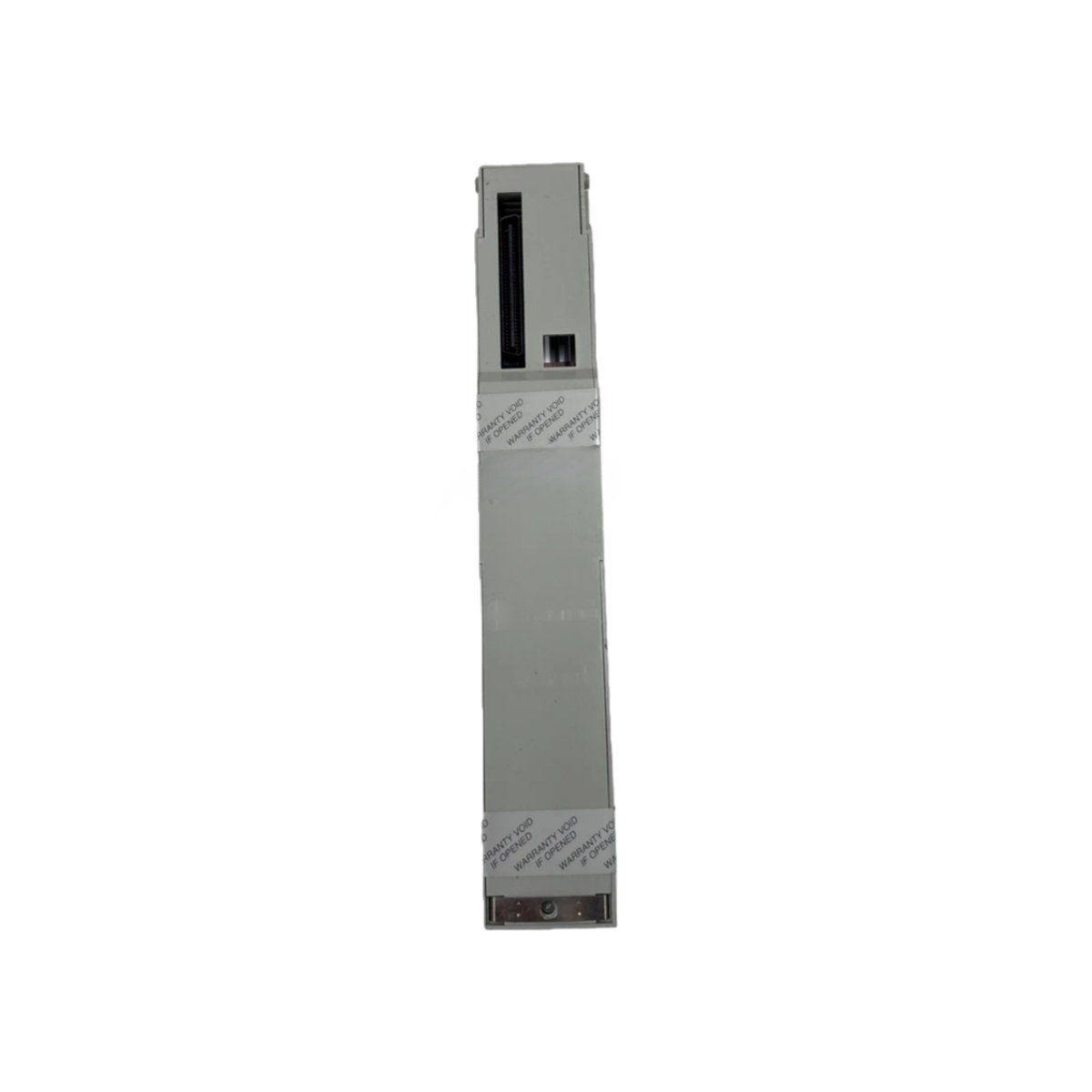

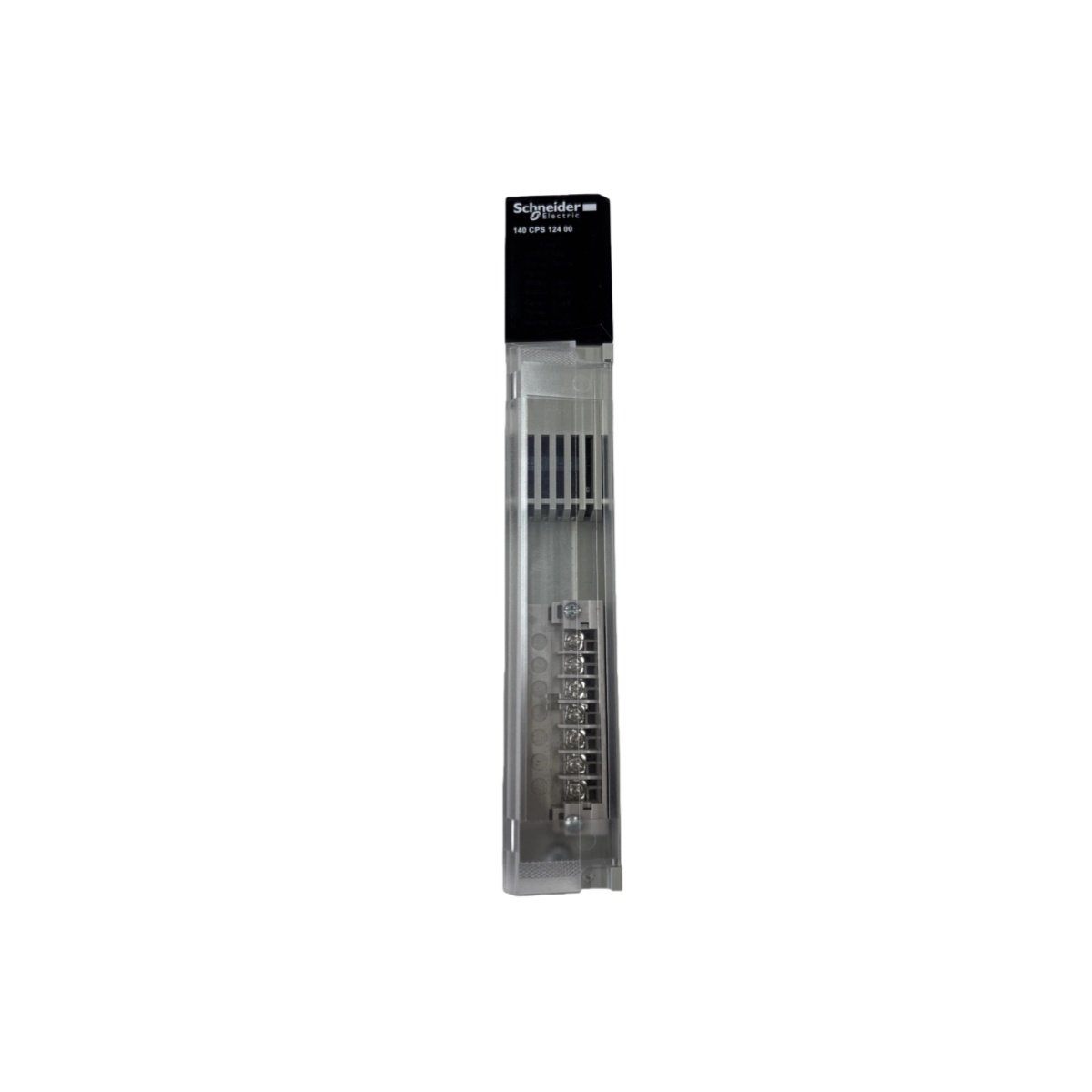

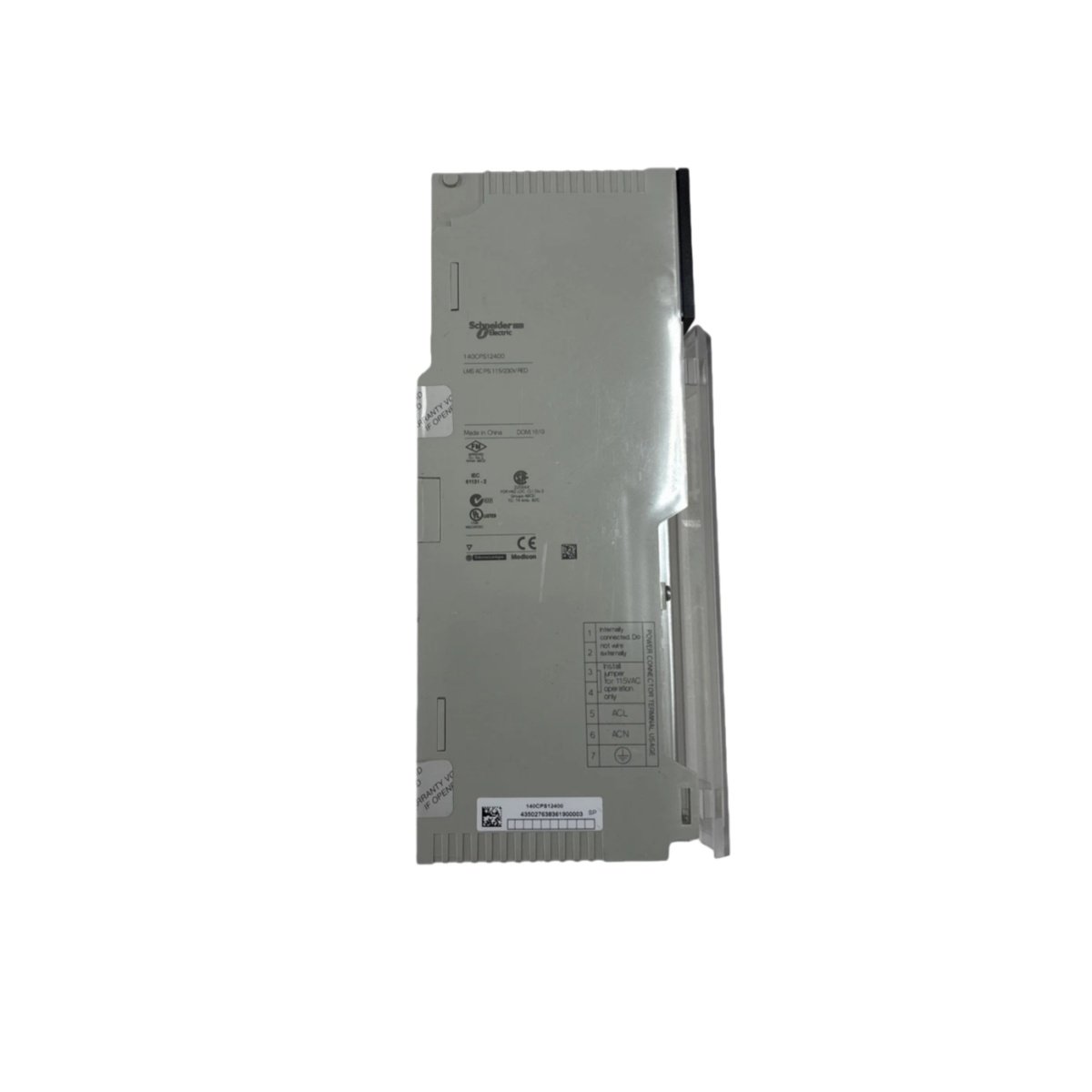

This power supply module delivers stable DC voltage to the entire Quantum backplane. It converts 115/230 V AC input into regulated 5 V and 24 V outputs. The unit supports hot-swapping for minimal downtime during maintenance. Users can replace it without powering down the entire chassis.

Input Voltage Range and Power Conversion Efficiency

This module accepts a wide AC input range from 85 V to 264 V for global compatibility. It also accommodates 110 V to 300 V DC input for industrial battery-backed systems. The conversion efficiency reaches 85% under typical load conditions. This high efficiency reduces heat generation inside the control cabinet. Consequently, the unit extends the service life of nearby electronic components.

Backplane Power Distribution and Capacity

The 140CPS42400C supplies 24 A at 5 V DC for all logic and I/O modules in the rack. It also provides 2.5 A at 24 V DC for field devices and output relays. The total combined output power reaches 180 W under continuous operation. This capacity comfortably supports a fully populated Quantum chassis. Moreover, the module includes internal current limiting for each output rail. This protection prevents damage from accidental overloads or short circuits.

Energy Storage and Ride-Through Performance

This power supply features a hold-up time of 20 ms at full load with 115 V AC input. During momentary voltage dips, the module maintains output regulation without interruption. This ride-through capability prevents processor resets during brief power disturbances. The unit also incorporates a built-in bleeder resistor for safe discharge after power-down. Consequently, technicians can safely remove modules after shutting off the supply.

Cooling Design and Environmental Durability

The module uses natural convection cooling without any internal fans. This design eliminates mechanical failure points for higher reliability. The operating temperature ranges from 0 °C to 60 °C for most industrial environments. Humidity tolerance spans 10% to 95% without condensation issues. Furthermore, the module carries an IP20 rating for protection against solid objects. Its rugged construction suits automotive assembly and process control applications.

Diagnostic Indicators and Status Monitoring

Three front-panel LEDs provide clear visual status feedback for operators. A green “PWR” LED confirms the presence of both output voltages. An “OK” LED signals normal operation and proper regulation. A red “Fault” LED illuminates during overvoltage or overtemperature events. These indicators simplify troubleshooting without external measurement tools.
