Technical Overview

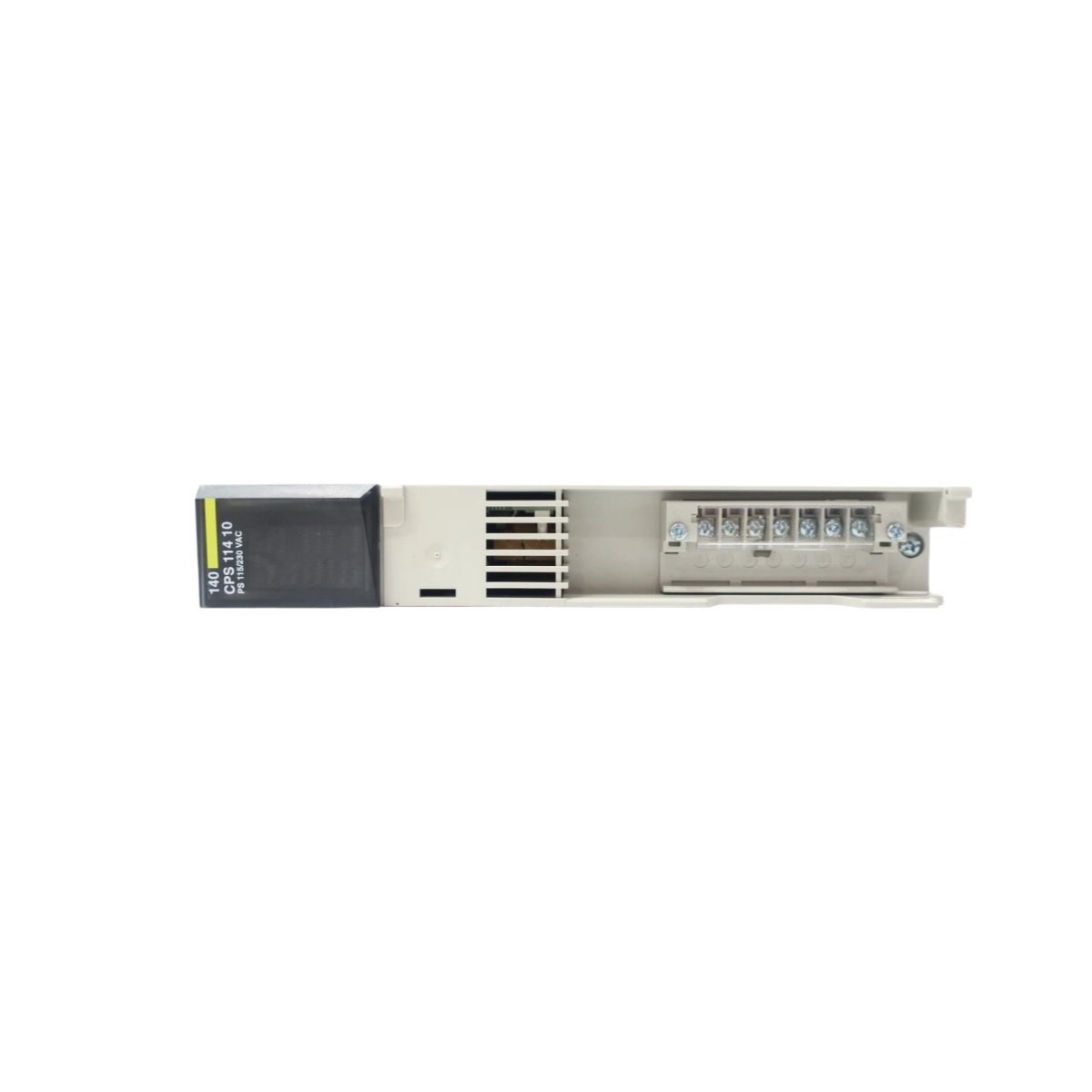

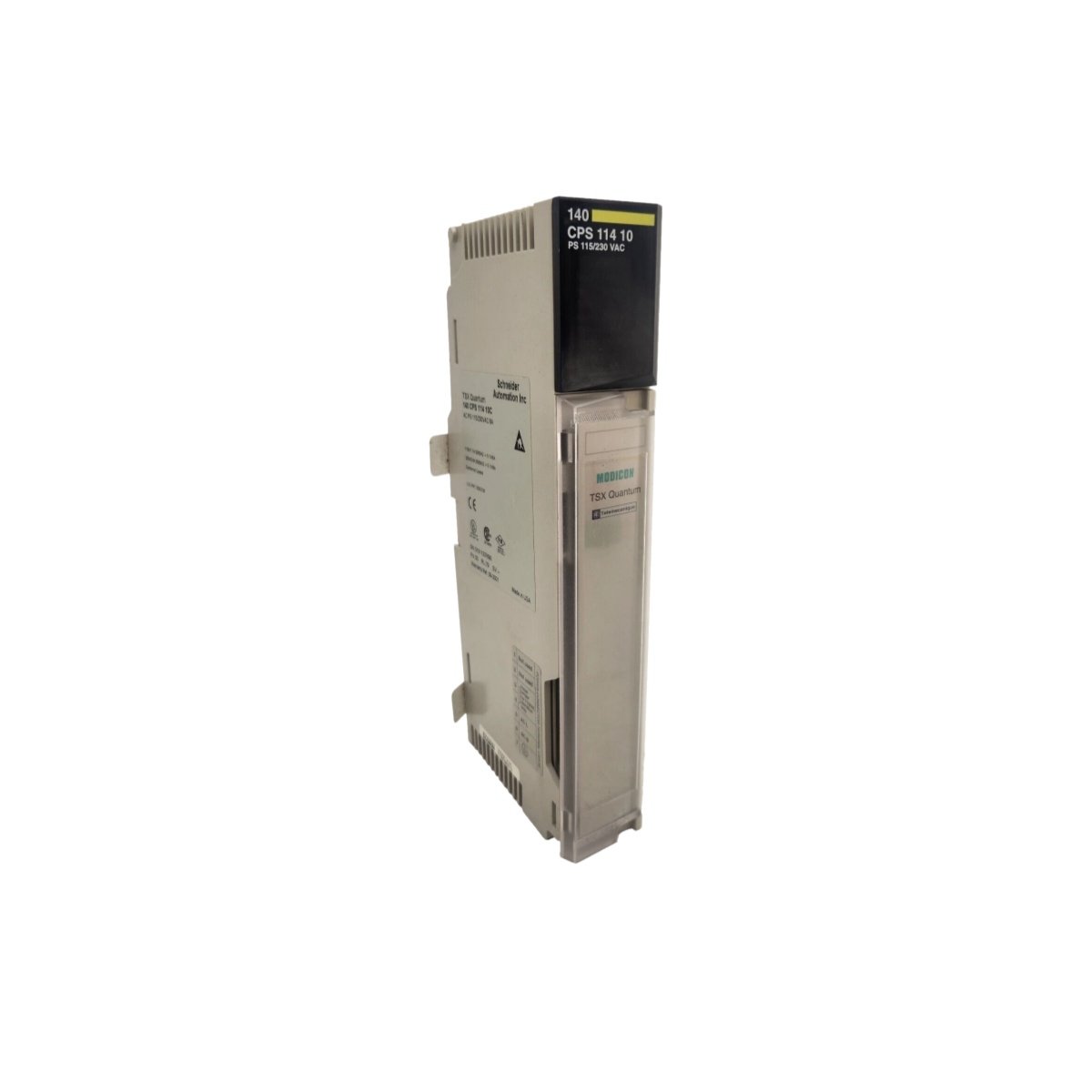

The Schneider 140CPS11410 serves as a robust AC power supply module for the Modicon Quantum automation platform. This module converts 115/230 VAC input into regulated DC power for the Quantum backplane. Its summable design allows parallel operation with other units for expanded capacity or redundant configurations. The 140CPS11410 delivers reliable energy to CPUs, communication modules, and I/O devices in demanding industrial environments.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | AC Power Supply Module |
| Input Voltage | 115/230 VAC (100–250 VAC range) |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 VDC / 5.1 VDC (regulated) |
| Output Current | 8 A continuous |
| Typical Efficiency | 90% |
| Power Dissipation | Approximately 20 W |
| Inrush Current | ≤ 20–30 A (at 230 VAC) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 95% (non-condensing) |
| Dimensions (H x W x D) | 4.0 × 10.0 × 25.0 cm |
| Weight | 0.56–0.91 kg |
Protection and Diagnostic Features
The 140CPS11410 integrates comprehensive protection mechanisms, including overvoltage, overcurrent, and short-circuit safeguards. Its LED indicators deliver immediate visual feedback for power status and fault conditions. These diagnostics enable operators to quickly identify issues during system operation. Furthermore, this module complies with CE, UL, and CSA international safety standards.
Integration and Compatibility
This module fits into standard Quantum backplane slots and supports hot-swapping in redundant configurations. It maintains full compatibility with the Modicon Quantum series, including the 140CPS11420 and 140CPS21400. Consequently, integrators can rely on this power supply module for manufacturing, energy, and process automation applications.
Details
| Weight | 0.56 kg |
|---|---|
| Dimensions | 40 × 100 × 25 mm |
