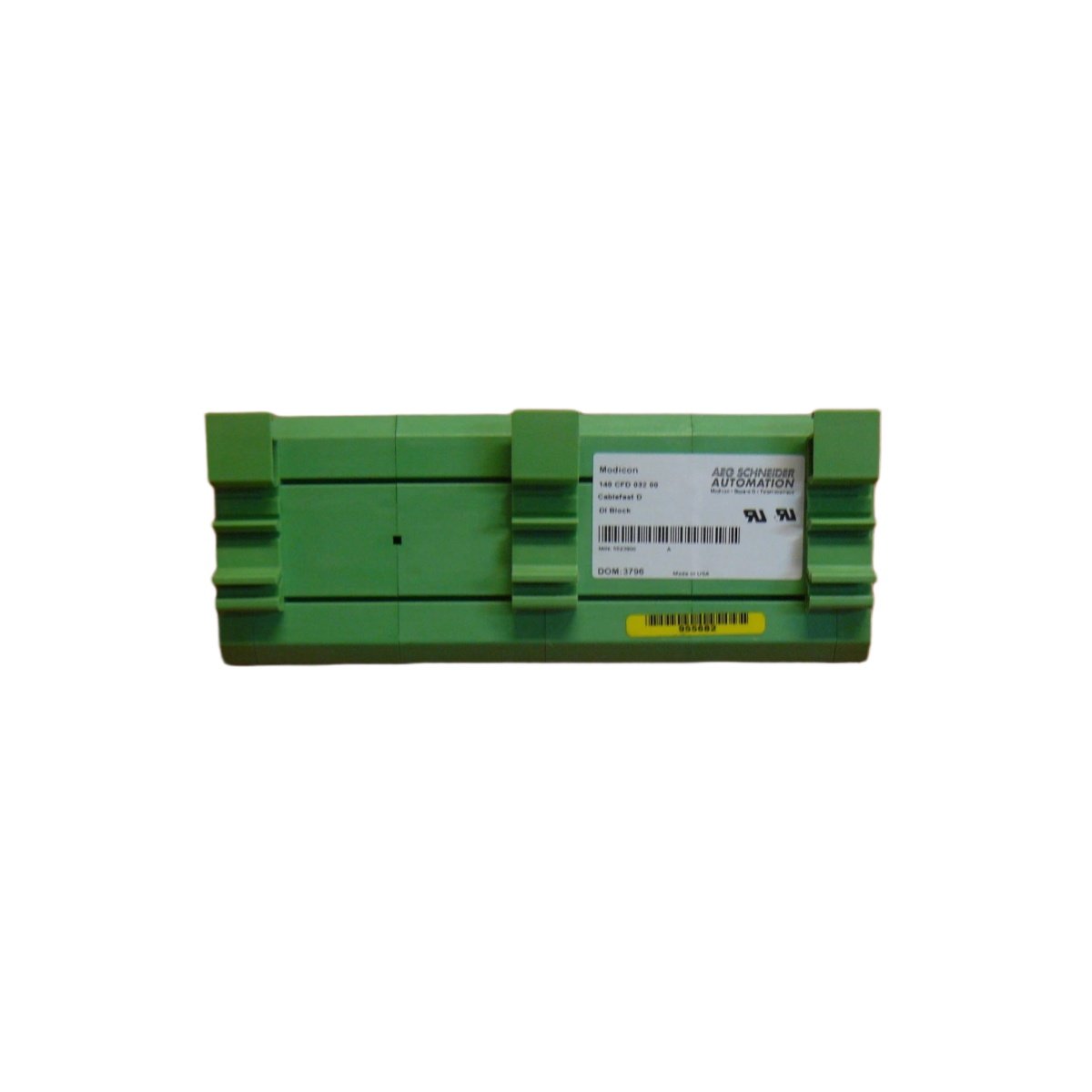

The Schneider 140CFD03200 CableFast terminal block connects field wiring to I/O modules within Modicon Quantum platforms. Engineers install this unit to simplify cable termination and reduce commissioning time. Consequently, it serves manufacturing lines, process plants, and utility control rooms.

Technical Specifications and Hardware Details

This terminal block mounts directly onto compatible Quantum I/O modules. It measures roughly 120 mm long, 40 mm wide, and 50 mm thick, while it weighs about 0.2 kg. Moreover, the housing carries numbered terminals and a locking mechanism.

Functional Capabilities and System Integration

The block routes field signals while it secures each conductor with numbered terminals. Meanwhile, the locking mechanism holds the block firmly against vibration. Pre-wired CableFast assemblies speed installation, therefore technicians complete wiring quickly during commissioning.

Additionally, the design allows module replacement without disturbing field wiring. As a result, maintenance crews swap I/O boards in minutes and minimize downtime. Clear terminal numbering helps technicians trace circuits during troubleshooting. The compact housing also fits crowded cabinet layouts.

Installation and Maintenance Guidelines

Technicians should verify terminal assignments before they connect field wiring to the 140CFD03200 block. Afterward, checking the locking mechanism confirms a secure mechanical connection. Periodic inspection of terminal torque prevents loose contacts and signal faults. Finally, consult Schneider documentation for compatible I/O modules and wiring diagrams.
