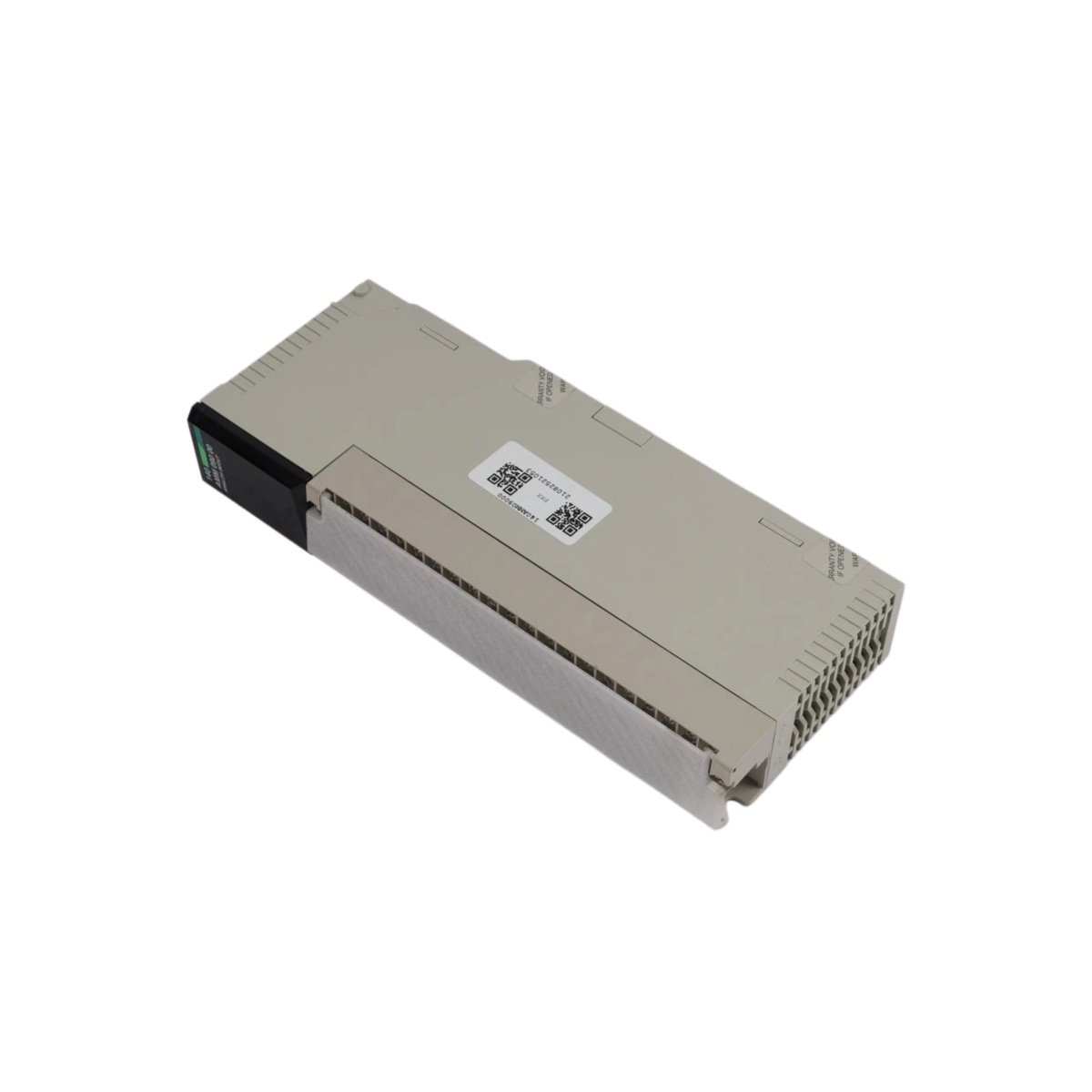

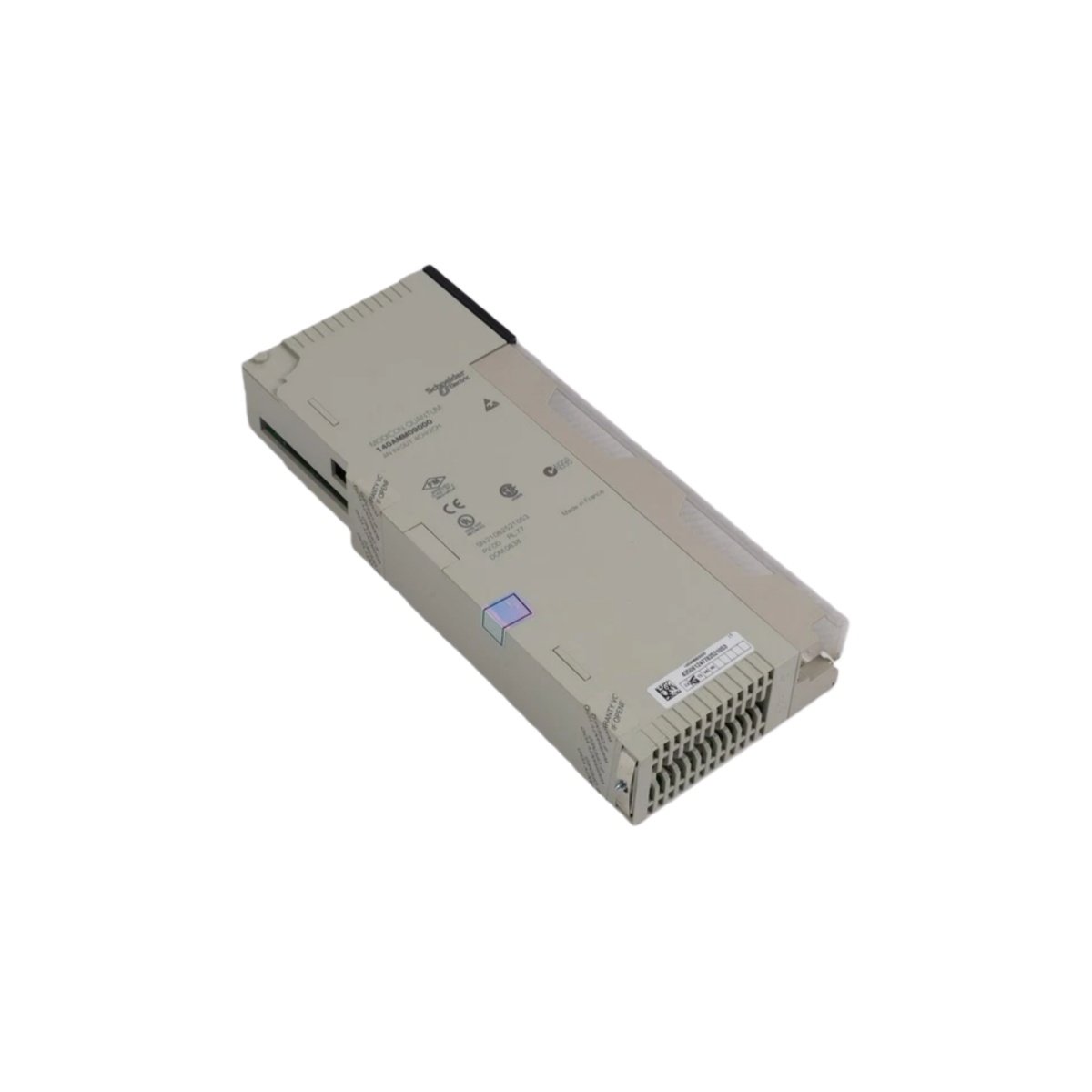

Modicon Quantum Analog I/O Module
The 140AMM09000C provides analog input and output functionality for the Schneider Modicon Quantum platform. This module offers both measurement and control capabilities for field devices. It interfaces directly with the Quantum backplane for data exchange. The unit also includes comprehensive configuration options for various applications.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | 140AMM09000C |
| Category | Analog Input Output Module |
| System Compatibility | Modicon Quantum Series |
| Input Channels | Offers 4 differential analog inputs |
| Input Type | Accepts 4-20 mA or 0-10 Vdc signals |
| Input Resolution | Provides 12-bit conversion |
| Output Channels | Offers 2 analog output channels |
| Output Type | Provides 4-20 mA current outputs |
| Output Resolution | Delivers 11-bit conversion |
| Power Supply | Draws +5 Vdc from the backplane |
| Backplane Current | Consumes 250 mA typical |
| Isolation | Provides 1500 Vac isolation |
| Operating Temperature | Functions from 0°C to +60°C |
| Storage Temperature | Withstands -40°C to +85°C |
| Dimensions | Measures 128.0 mm x 85.0 mm x 30.0 mm |
| Weight | Weighs approximately 0.35 kg |
| Mounting | Plugs into Quantum rack slots |
| Compliance | Meets CE, UL, and CSA standards |
Integrated Analog I/O Capabilities
This module combines both analog input and output functions in a single unit. It reads field sensor signals and converts them into digital values. Simultaneously, it generates control signals for actuators and valves. The module also handles signal conditioning to ensure measurement accuracy. Its compact design conserves valuable rack space in the Quantum chassis.
Installation and Configuration
First, insert the 140AMM09000C into an available slot within the Quantum rack. Ensure the module seats fully into the backplane connector. Next, connect the field wiring to the designated input and output terminals. After that, apply power and observe the module status indicators. You can then configure the I/O parameters using the programming software.
Maintenance and Operational Reliability
This module offers reliable operation with minimal maintenance requirements. However, you should periodically verify the accuracy of both input and output channels. We recommend you inspect the terminal connections for tightness regularly. You should also monitor the status LEDs for any indication of faults.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 128 × 85 × 30 mm |
