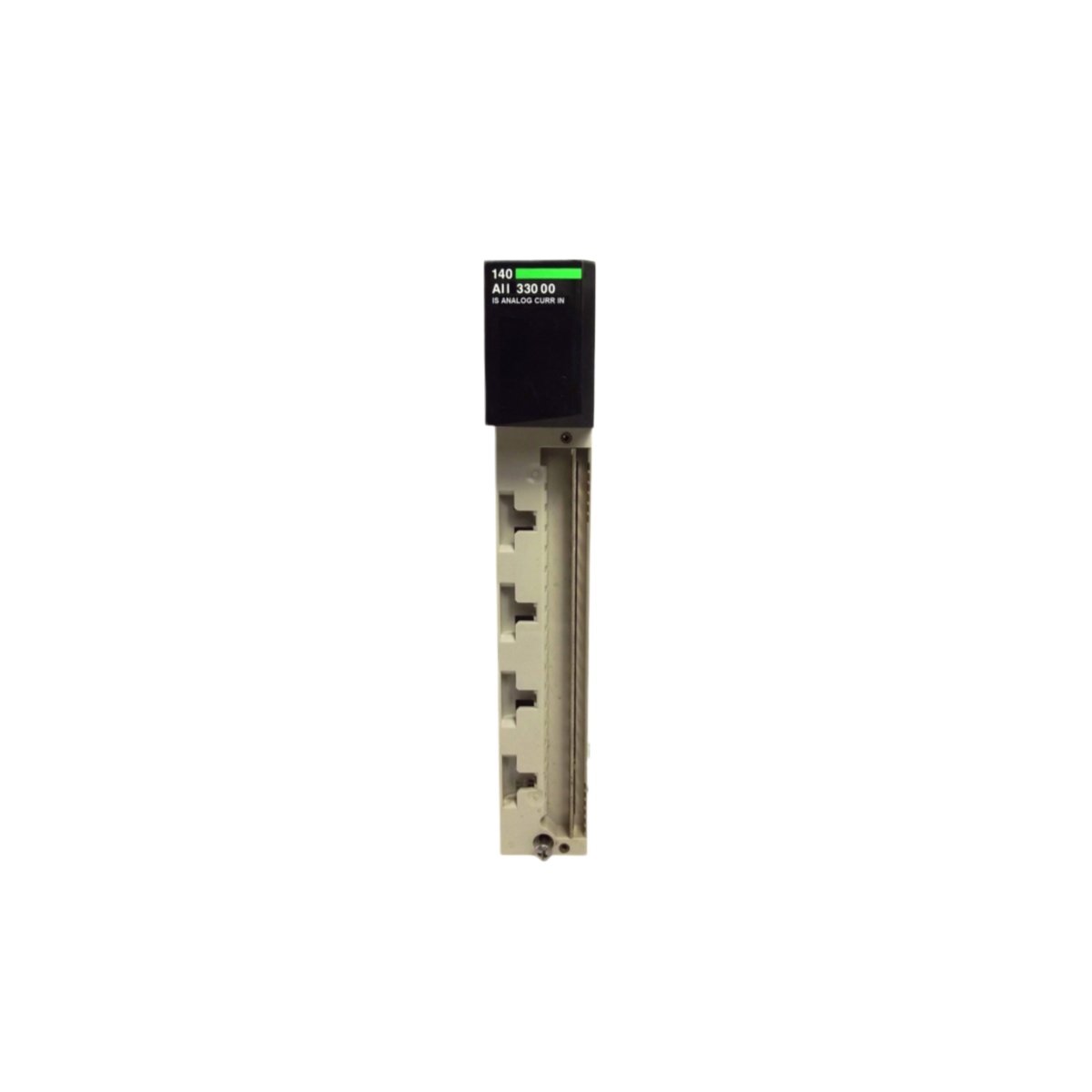

High-Density Analog Input Module for Quantum Systems
The Schneider 140AII33000C functions as an analog input module within the Modicon Quantum automation platform. This module converts analog signals from field sensors into digital values for the processor. Its 8-channel design offers a balanced solution for analog monitoring in industrial applications.
This analog input module accepts 0 to 10 VDC and 4 to 20 mA signals with 12-bit resolution. A built-in filter minimizes electrical noise and stabilizes readings for accurate process control. The module connects to the Quantum backplane via the standard X-bus interface.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 140AII33000C |
| Type | Analog Input Module |
| Platform | Modicon Quantum |
| Number of Channels | 8 (single-ended) |
| Input Ranges | 0 to 10 VDC, 4 to 20 mA |
| Resolution | 12-bit |
| Update Time | 10 ms per channel |
| Filtering | Hardware and software |
| Backplane Interface | Quantum X-bus |
| Isolation | 1500 VDC (channel to bus) |
| Power Consumption | 250 mA (from backplane) |
| Dimensions | 249.4 x 70 x 112 mm |
| Weight | 0.35 kg (approx.) |
| Operating Temp | 0 °C to 60 °C |
| Compliance | UL, CSA, CE |
The 140AII33000C offers eight channels for flexible analog signal acquisition. Its 12-bit resolution delivers accurate conversion for process variables. The hardware filter reduces noise and enhances measurement stability.
This analog input module accepts both voltage and current signals. Its 1500 VDC isolation protects the backplane from electrical interference. The module supports hot-swapping for minimal production downtime.
The 140AII33000C integrates with Quantum processors and power supplies seamlessly. Its robust design operates reliably across industrial temperature ranges. Therefore, this module provides a dependable analog input solution for Quantum systems.
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 249.4 × 70 × 112 mm |
