Core Technical Specifications

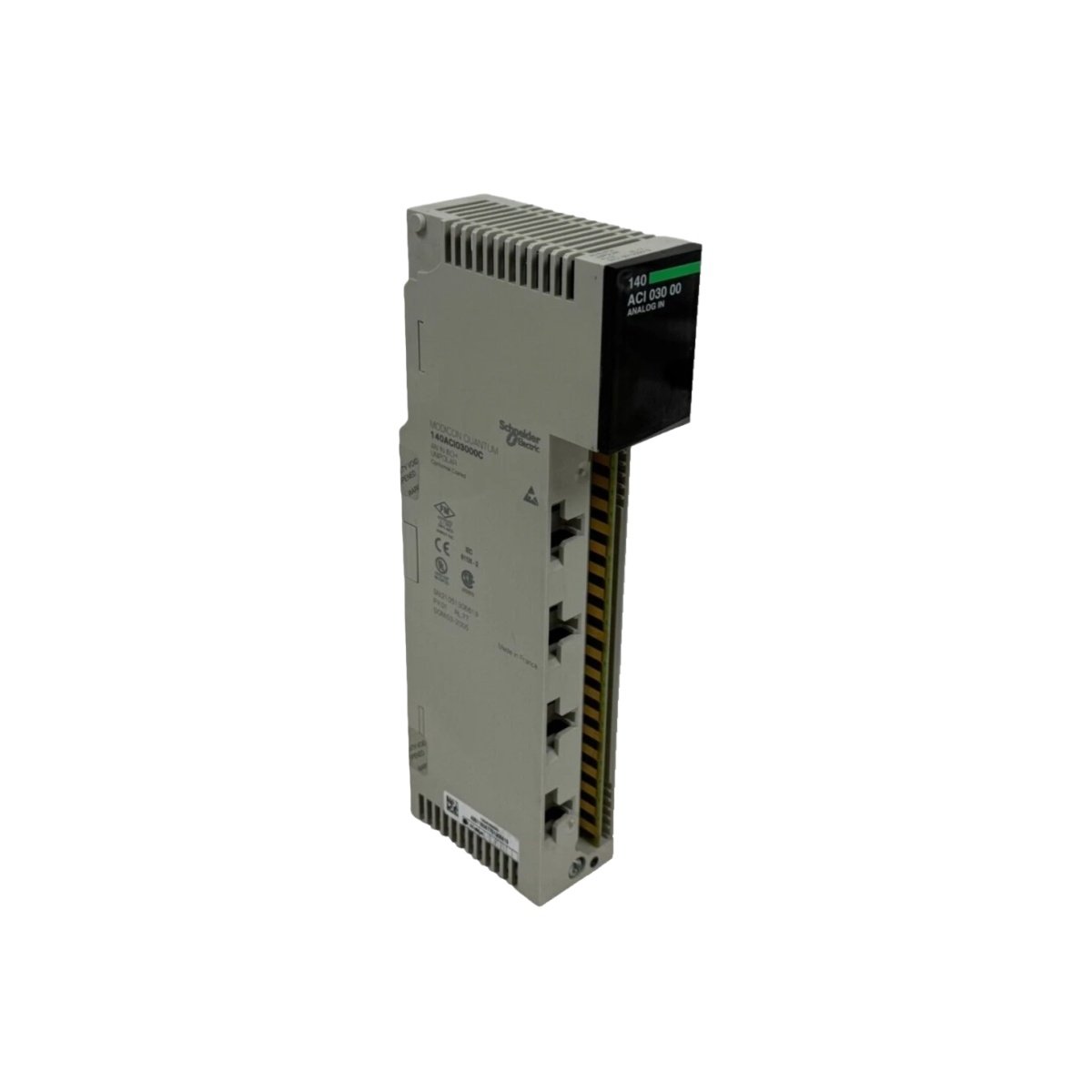

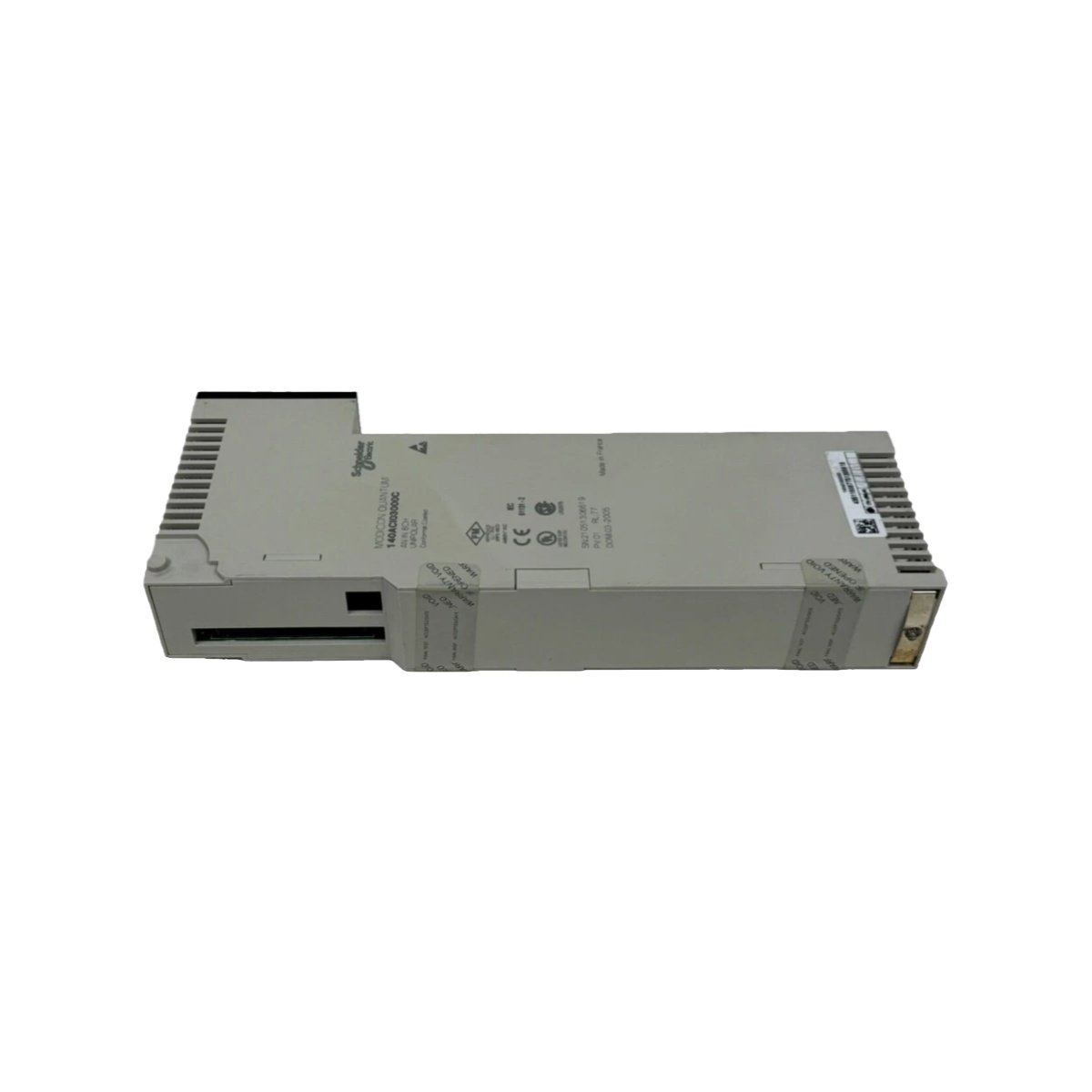

The 140ACI03000C analog input module accepts eight differential or sixteen single-ended analog channels. This unit measures 140 millimeters in height, 40 millimeters in width, and 140 millimeters in depth. The module weighs approximately 0.35 kilograms for easy installation in standard racks. It supports input voltage ranges from 0 to 10 volts DC and 4 to 20 milliamps current signals. The module includes a 12-bit analog-to-digital converter with a resolution of 5 millivolts per count. It stores calibration data using 2 kilobytes of onboard EEPROM memory.

Input Handling and Performance

This module scans all channels sequentially with a conversion time of 25 milliseconds per channel. It provides individual channel configuration for voltage or current modes through software settings. The module filters high-frequency noise using an integrated low-pass filter circuit. It delivers an accuracy rating of ±0.1% of the full-scale reading under normal operating conditions. The module also features overvoltage protection up to 30 volts DC on each input channel. This protection prevents damage from accidental wiring errors or transient surges.

Physical Layout and Connectivity

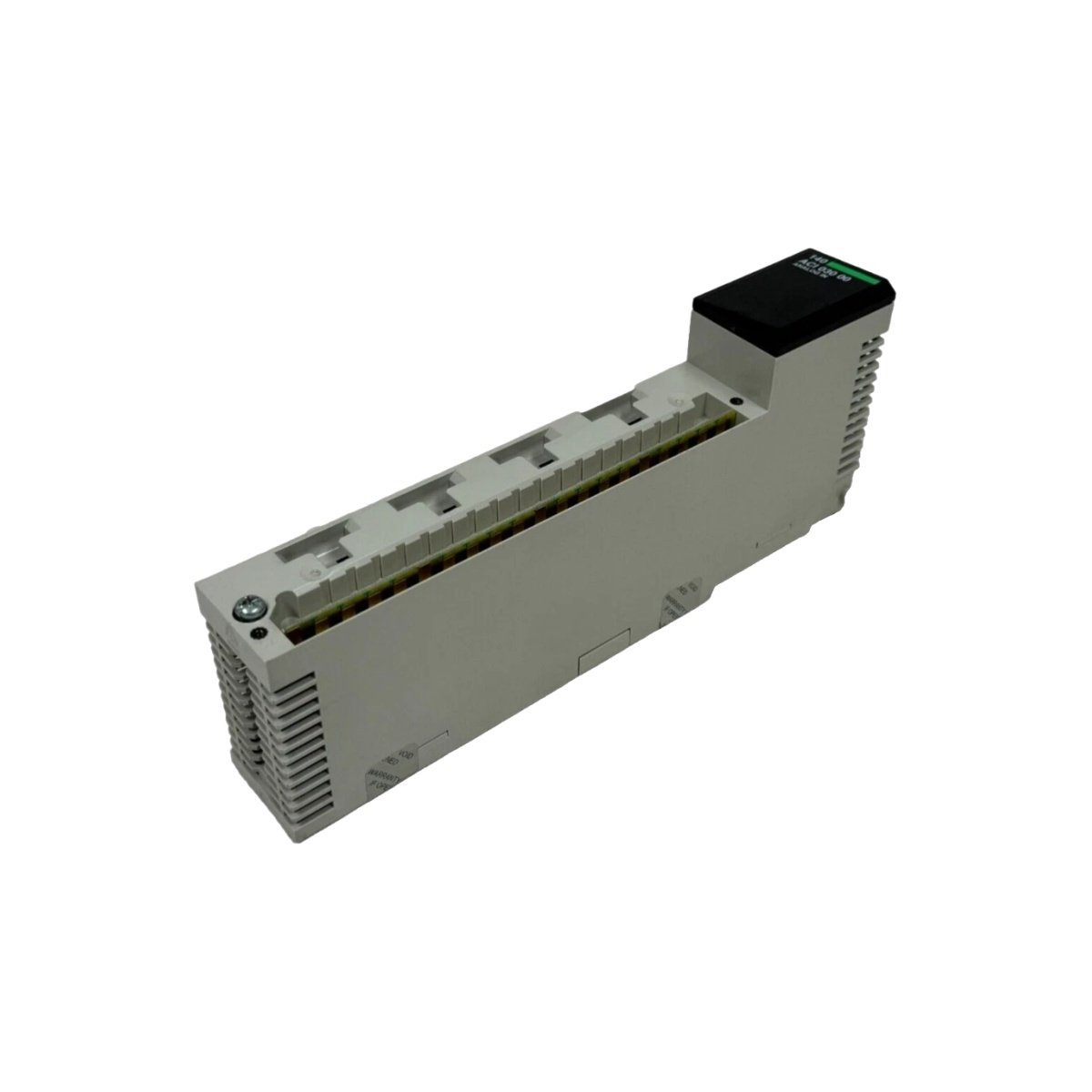

The front panel houses a 20-pin screw terminal block for field wiring connections. Each channel includes dedicated terminals for signal, return, and shield grounding. The module mounts horizontally in a standard backplane using a single locking latch mechanism. Its compact width allows dense channel packing in control cabinets with limited space. The unit’s lightweight design reduces stress on the backplane connectors during vibration or shock events.

Power and Environmental Considerations

The module draws a maximum supply current of 120 milliamperes from a 5-volt DC bus. It operates effectively across a temperature range of 0 to 60 degrees Celsius. The unit withstands humidity levels from 5% to 95% without condensation under non-operating conditions. It complies with IEC 61000-6-2 standards for industrial electromagnetic immunity. The module incorporates galvanic isolation between the input channels and the internal logic circuitry. This isolation eliminates ground loop issues and enhances measurement integrity.

Configuration and Integration

You can assign each channel independently for either voltage or current input through configuration software. The module automatically detects the active channel range using internal reference resistors. It offers adjustable averaging filters for stable readings in noisy industrial environments. The module communicates with the processor via a dedicated parallel bus interface. This bus supports high-speed data transfers for real-time control applications.
