D-Shell Adapter for Modbus Plus Network Connectivity

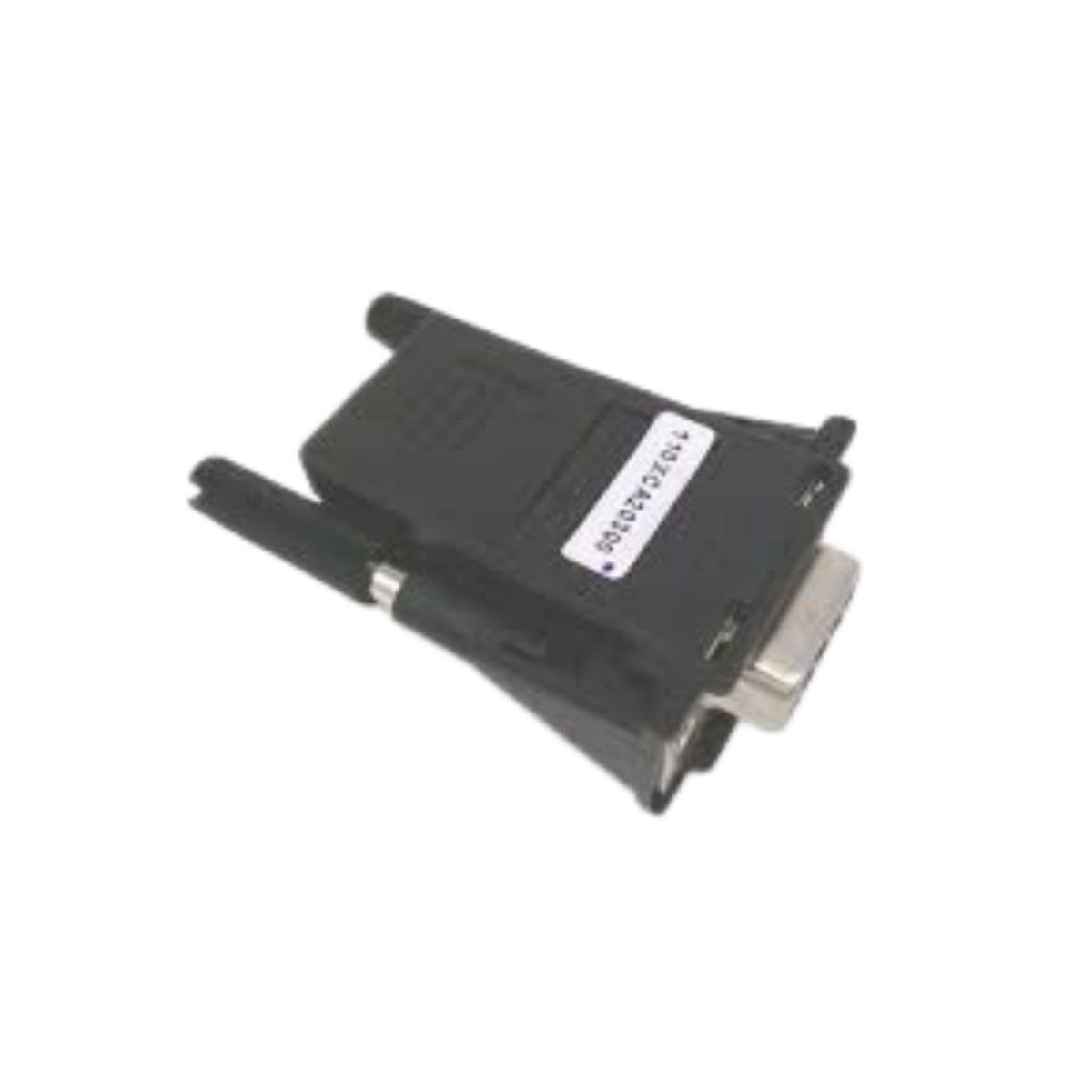

The Schneider 110XCA20300 serves as a D-shell adapter for Modbus Plus network connections. This adapter enables connectivity between Modbus Plus devices and standard D-shell cabling systems. Its design simplifies network integration and expands connectivity options.

Adapter and Connectivity Features

This D-shell adapter provides a robust interface for Modbus Plus communication. A built-in connector ensures secure and reliable signal transmission. The adapter supports network termination and cable extension applications. Moreover, its compact form factor fits easily into control cabinets. Consequently, this adapter improves network flexibility and simplifies wiring.

Hardware Integration and Physical Specifications

The 110XCA20300 features a standard D-shell connector on one end. The adapter’s compact design conserves valuable cabinet space during installation. It requires no power supply or configuration for operation. Additionally, the adapter includes strain relief for cable protection. For this reason, the adapter provides durable performance in industrial settings.

Compatibility and System Support

This D-shell adapter works with all Modbus Plus compatible devices. It integrates with Schneider Electric PLCs and instrumentation seamlessly. Furthermore, the adapter supports both network trunk and drop connections. This compatibility simplifies network expansion and troubleshooting. Therefore, this adapter provides a reliable solution for Modbus Plus installations.

Technical Specifications

Details
