Compact CPU Module for Modicon 110 Series Systems

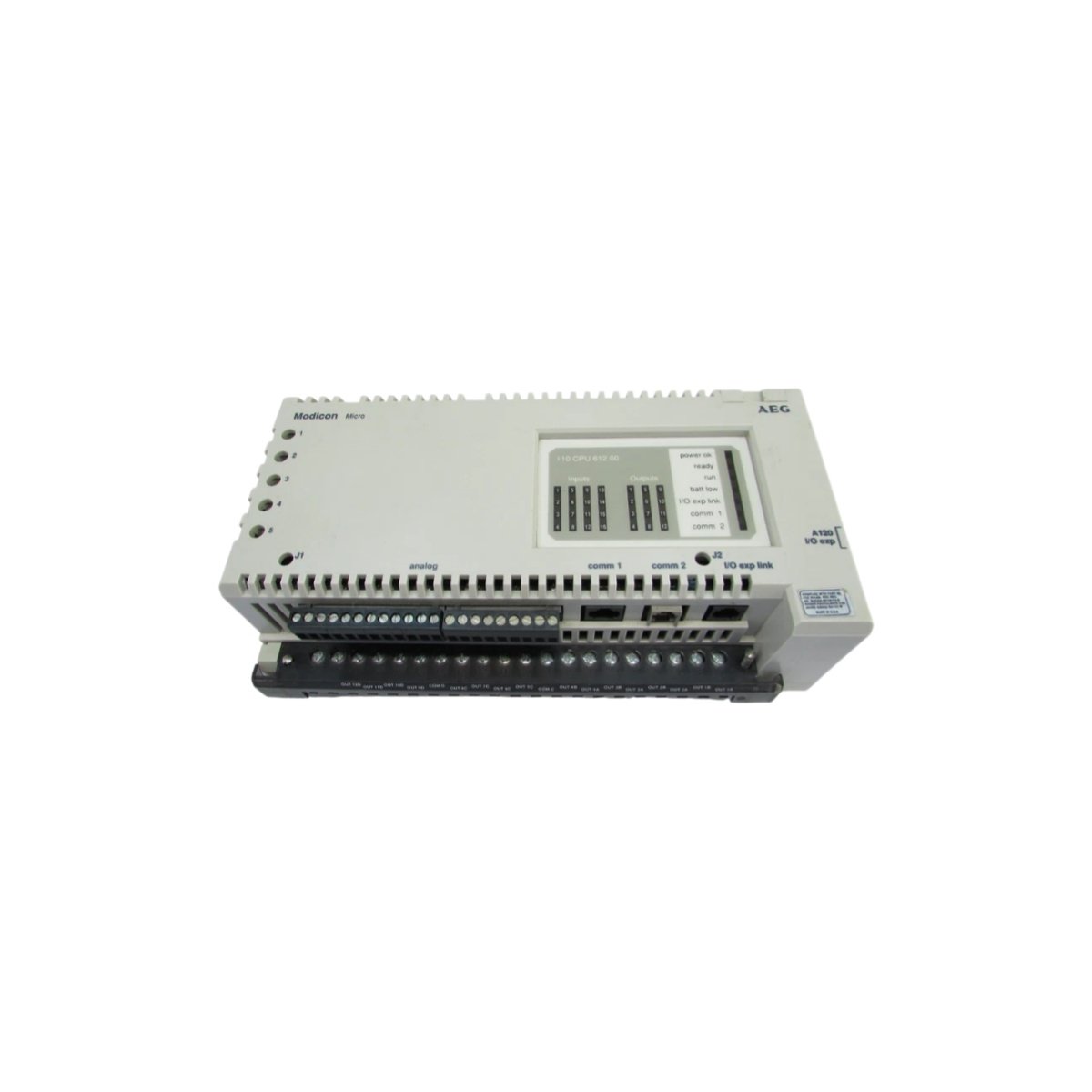

The Schneider 110CPU61200 serves as a compact CPU module for the Modicon 110 Series automation platform. This module executes control programs and manages I/O operations for small to mid-sized applications. Its design offers a cost-effective solution for simple machine control tasks.

Processing Power and Memory Architecture

This CPU module features an efficient processor for fast program execution. The module provides user memory for programs and system data storage. It supports ladder logic programming for straightforward application development. Furthermore, the processing speed handles basic control logic and timing functions effectively. Consequently, this CPU delivers reliable performance for simple automation requirements.

Communication and Integration Capabilities

The 110CPU61200 includes built-in serial communication ports for programming and monitoring. A USB port enables convenient diagnostics access. The module manages local I/O via the system backplane. Additionally, it supports limited expansion for flexible system configuration. For this reason, this CPU provides basic connectivity for standalone applications.

Physical Specifications and Environmental Ratings

This CPU module mounts directly on the system backplane. Its compact dimensions fit standard rack slots. The module draws minimal power from the backplane supply. Furthermore, it operates reliably across standard industrial temperature ranges. Consequently, this processor provides a dependable solution for small-scale control systems.

Technical Specifications

Details
