Product Overview

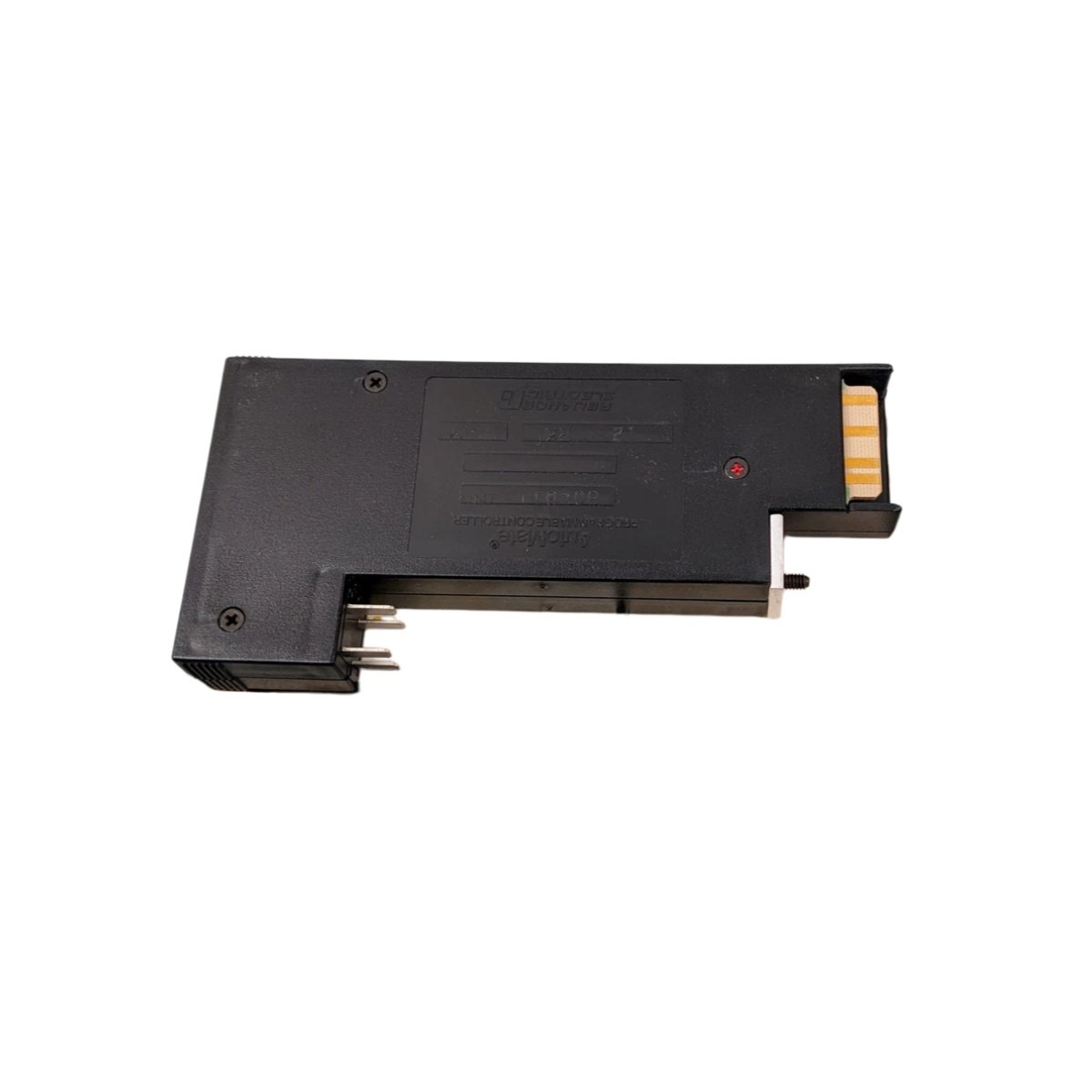

This dual-input module accepts high-voltage AC or DC signals from industrial field devices. Manufacturing plants often use 230 VAC for motor starter feedback and power monitoring. The 45C43 provides two independent channels for reliable high-voltage digital acquisition. Its wide operating range accommodates both AC and DC signals without configuration changes. Maintenance technicians can install this module in standard Reliance Electric racks quickly. The unit’s robust isolation protects control logic from hazardous voltage levels.

Technical Specifications

High-Voltage Input Acquisition

The 45C43 accepts input signals from both AC and DC sources without manual selection. Its wide voltage range covers 180–265 VAC and 180–300 VDC for global compatibility. The module’s input impedance ensures minimal current draw from field devices. Built-in zero-crossing detection improves AC signal timing accuracy for frequency measurements. Optical couplers provide complete electrical isolation between field wiring and system logic.

Signal Conditioning and Noise Rejection

Internal filtering circuits reject transients and noise from industrial power lines. The module differentiates between AC and DC signals automatically. Hysteresis on the turn-on and turn-off thresholds prevents chatter near switching points. The unit’s response time accommodates both slow-changing process signals and fast fault detection. Transient suppression protects the input circuits from voltage spikes.

Flexible Input Configurations

Each channel operates independently with its own isolation barrier and conditioning circuit. Users can connect mixed AC and DC sources to different channels on the same module. The module accepts signals from contact closures, proximity sensors, and voltage sources. Field wiring can use either two-wire or three-wire configurations as needed. The unit’s design simplifies interfacing with legacy equipment operating at higher voltages.

Diagnostics and Status Monitoring

Individual green LEDs illuminate when each input remains active above the turn-on threshold. A global module status LED confirms proper power supply and communication. The module reports input state changes through the system backplane. Diagnostic information includes cycle counts for predictive maintenance planning. Users can monitor input status in real-time via programming software.

Power Consumption and Thermal Design

The module draws a maximum of 2.5 watts from the 24-volt backplane supply. Low power dissipation eliminates cooling concerns in densely packed racks. The unit’s thermal performance remains stable across the operating temperature range. Minimal heat generation extends the life of adjacent electronic components. The module’s small 40-millimeter width saves valuable rack space.

Mechanical Construction and Installation

The 40-millimeter wide housing fits standard Reliance Electric rack systems. Removable screw terminal blocks accept wire sizes from 0.5 mm² to 2.5 mm². Weighing 350 grams, the module inserts and extracts with ease. Guide rails ensure proper alignment with the backplane connector. Clear labeling identifies input terminals and polarity requirements for error-free wiring.
