Primary Function and Network Role

This interface module bridges the remote I/O backbone with local field devices and actuators. It translates digital and analog signals into a standardized communication protocol for the main controller. You can place this unit in remote substations up to 3,000 meters from the host system. It significantly reduces the need for massive multicore cables in sprawling plant layouts. The module actively synchronizes its data scanning with the central processor’s timing cycles. It then forwards all input changes within a single network update interval.

Physical Dimensions and Mounting Options

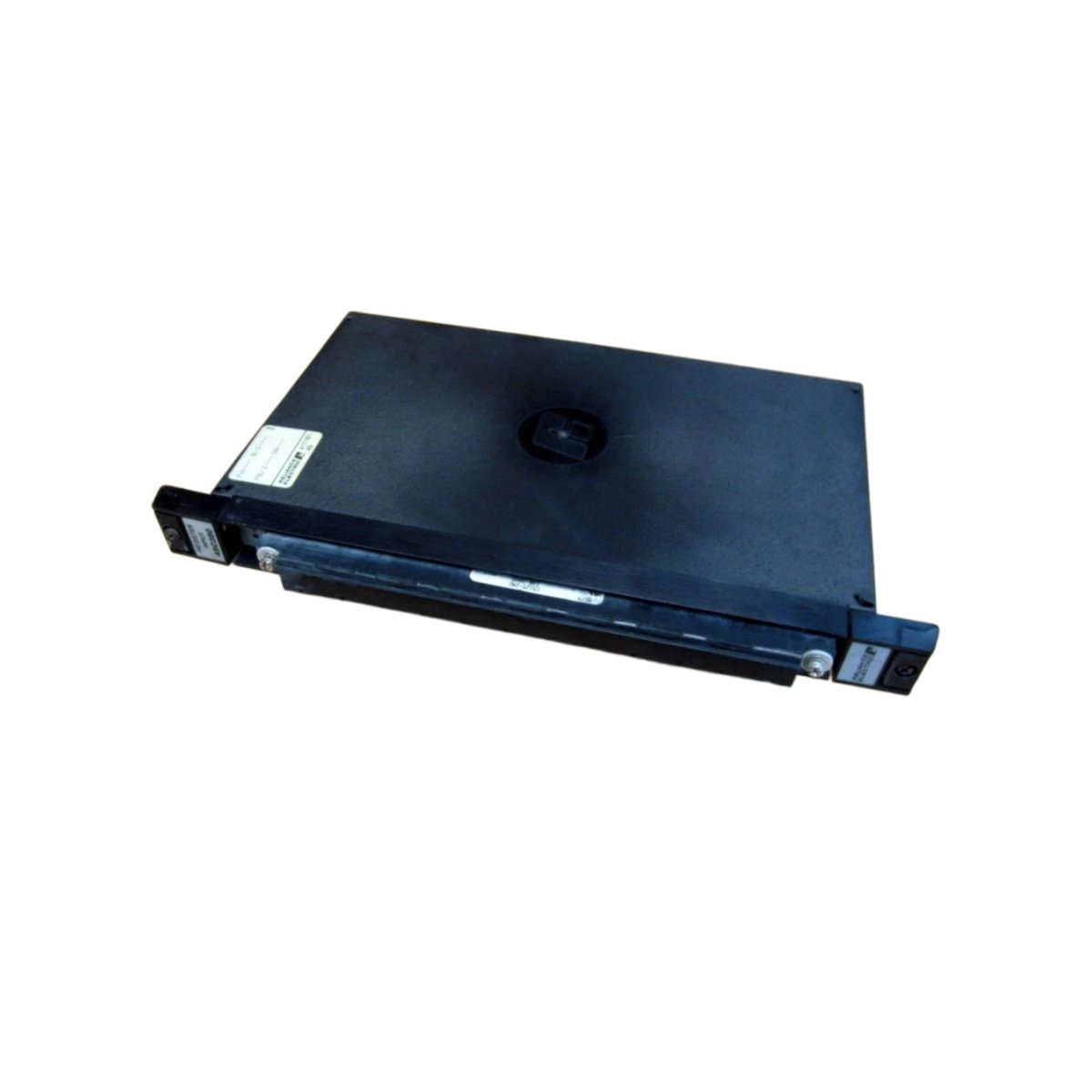

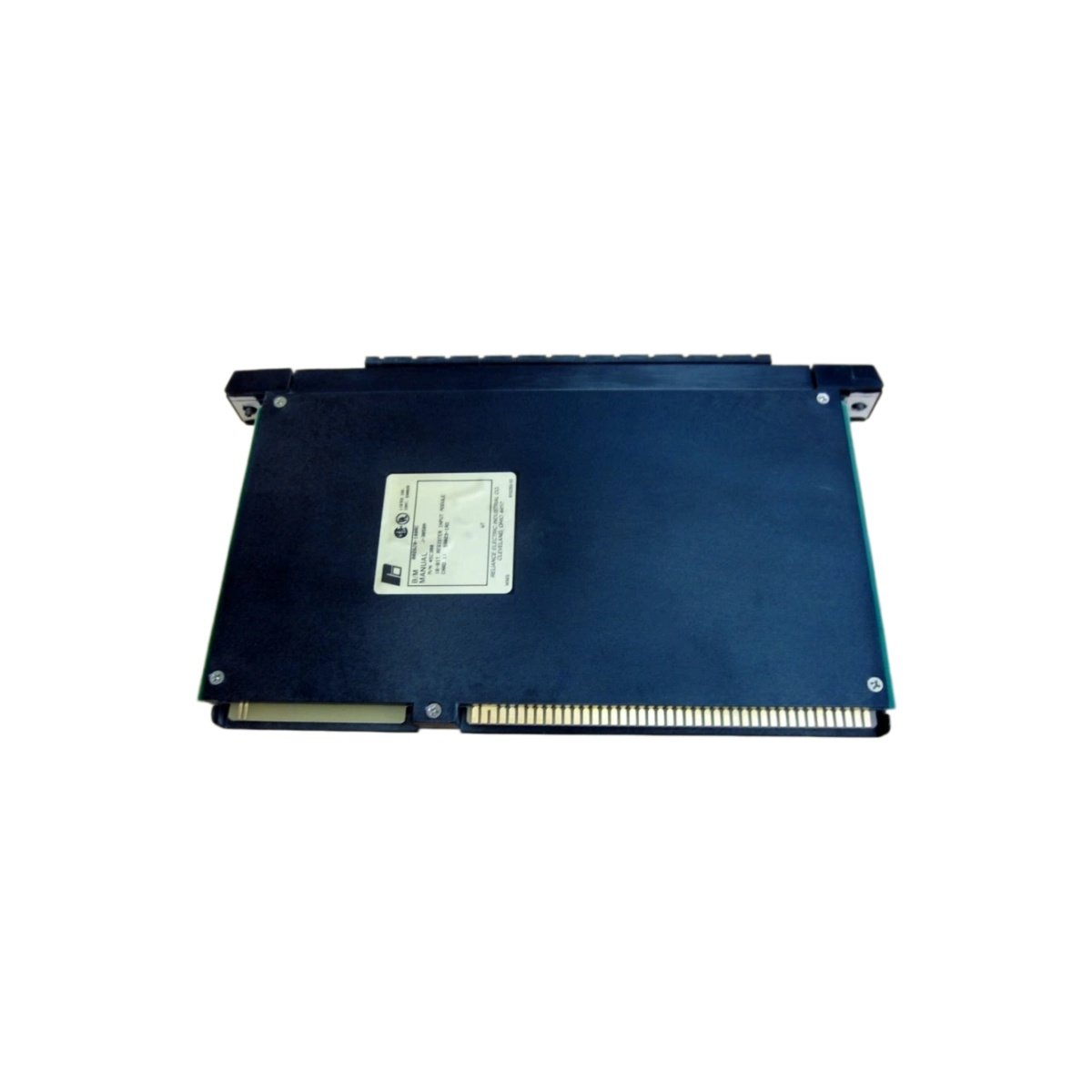

The Reliance Electric 45C38A stands 358.6 mm tall and spans 112.8 mm in width. Its depth measures 196.4 mm from the front face to the rear connector pins. This unit weighs approximately 2.6 kg, making it manageable for a single technician to install. You can secure it onto a standard 35 mm DIN rail using the integrated spring clips. Alternatively, you may bolt it directly to a flat panel using the four corner mounting holes. The extruded aluminum housing dissipates heat efficiently without requiring active cooling fans.

Connectivity Ports and Field Wiring

A removable 24-position terminal strip provides screw-type terminations for all field signals. This strip accepts solid or stranded wires from 0.5 mm² to 2.5 mm² cross-sections. The Reliance Electric 45C38A includes two RJ-45 ports for daisy-chaining multiple interface units. One DB-25 female connector supports parallel digital I/O expansion through a ribbon cable. You will also find a 3-position power plug with polarity protection and a fuse holder. Each analog channel offers electrically isolated inputs to prevent ground-loop interference.

Internal Circuitry and Component Layout

The main printed circuit board hosts a 16-bit microcontroller running at 40 MHz. It incorporates 256 KB of EPROM for firmware storage and 64 KB of battery-backed SRAM. You can identify 24 optocoupler devices that provide 1.5 kV isolation between field and logic sides. The Reliance Electric 45C38A employs a switching power supply with a toroidal transformer. A total of 112 discrete components populate the double-sided PCB assembly. These include precision resistors, ceramic capacitors, and glass-passivated diodes.

Power Consumption and Energy Buffering

This interface module consumes a typical 8 W of power at 24 VDC input. An internal 2,200 µF electrolytic capacitor bank stores enough energy for 80 ms of dropout ride-through. This capacitance value ensures that brief supply interruptions do not reset the microprocessor. The unit also features a supercapacitor backup for retaining time-stamped fault records. This supercapacitor maintains data for up to 72 hours without external power. Such energy buffering guarantees seamless recovery after transient voltage sags.

Environmental Tolerances and Safety Compliance

The Reliance Electric 45C38A operates flawlessly between -25°C and 65°C ambient temperatures. It tolerates non-condensing humidity from 10% to 95% across its full temperature range. The enclosure carries a UL 508 listing for industrial control equipment safety. Vibration resistance meets IEC 60068-2-6 at 5 G from 10 to 150 Hz. Shock survivability reaches 30 G for 11 ms half-sine pulses. These qualifications permit installation in compressor rooms, conveyor tunnels, and outdoor shelters.

Technical Data Summary

Diagnostic Features and User Interface

This unit provides eight LED indicators on its front panel for instant status verification. These LEDs display power, network activity, and individual channel fault conditions. You can invoke a built-in loopback test using the recessed pushbutton switch. This test verifies the integrity of both transmit and receive data paths. The interface also stores the last 50 event messages in a non-volatile log. Maintenance personnel can retrieve these logs via the diagnostic RS-232 port.
