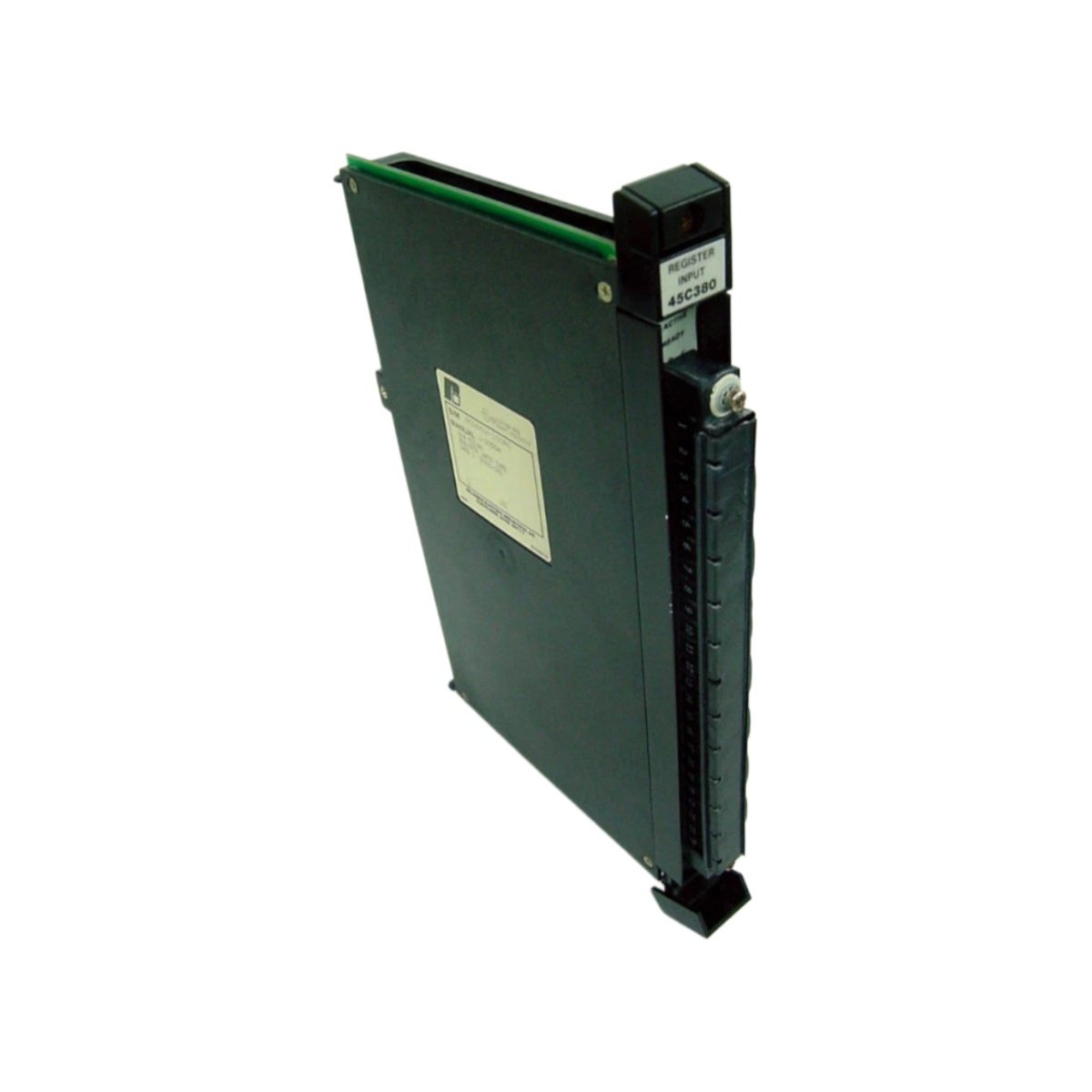

This module captures discrete input signals from field sensors and pushbutton stations. It features 32 independent register input points for monitoring digital status conditions. Engineers use this unit to interface pushbuttons, limit switches, and proximity sensors with the control system. The design emphasizes high-density packaging to maximize point count per rack slot. Its robust input circuitry withstands industrial electrical noise and voltage transients.

Input Channel Architecture

The 45C380 provides 32 optically isolated input channels arranged in four groups of eight. Each group shares a common return terminal for simplified field wiring. Every channel incorporates a built-in LED indicator for immediate visual status verification. The optocouplers provide 1500 VAC isolation between field circuits and the backplane logic. This isolation protects the processor from external surges and wiring errors.

Electrical Specifications and Input Ranges

Each channel accepts DC input voltages from 10 VDC to 30 VDC with a nominal 24 VDC rating. The input current measures approximately 7 mA at the nominal voltage level. Channel turn-on threshold sits at 8 VDC while turn-off occurs below 4 VDC. This hysteresis prevents contact bounce and noise-induced false triggering. Consequently, the module reliably interprets switch status in electrically harsh environments.

Physical Dimensions and Mounting

The 45C380 measures 12.7 cm in width, 25.4 cm in height, and 20.3 cm in depth. It weighs approximately 1.0 kg, which ensures secure seating in the rack assembly. A rugged steel housing provides mechanical protection and electromagnetic shielding. The unit mounts directly into standard 19-inch racks or compatible PLC backplanes. Its front panel layout places input terminals and status LEDs for convenient access.

Field Wiring and Connector Details

A 50-pin ribbon cable connector handles all field termination points on the front face. This connector accepts wire gauges ranging from 0.2 mm² to 1.5 mm². The module includes removable terminal blocks for straightforward installation and replacement. Each terminal block carries clear labeling for channel identification and wiring guidance. Moreover, the connector features a positive locking mechanism for vibration resistance.

Internal Components and Power Consumption

The printed circuit board contains 32 optocouplers, 32 resistors, and 8 transient suppression diodes. It draws 400 mA from the 5 VDC backplane under full operational load. The module also requires 100 mA from the 24 VDC field supply for input excitation. No energy storage devices appear on the board for this purely combinational circuit. The simple passive input design ensures high reliability and zero calibration requirements.

Status Indication and Diagnostic Functions

Each of the 32 input channels has a dedicated front-panel green LED indicator. The LEDs illuminate when the corresponding input voltage exceeds the turn-on threshold. A single red LED signals overall module health and backplane communication status. The module transmits real-time input data to the processor during each scan cycle. This immediate visual feedback enables rapid field troubleshooting without software tools.

Environmental Durability and Compliance

The 45C380 operates reliably across temperatures from 0°C to 60°C. It withstands humidity levels up to 95% without condensation affecting circuit performance. The module complies with IEC 61000-4-4 for electrical fast transient immunity. Vibration tolerance meets IEC 60068-2-6 requirements for factory floor installations. This robust design suits automotive assembly, packaging lines, and material handling systems.

Technical Data Sheet – Reliance Electric 45C380
