Functional Role and System Integration

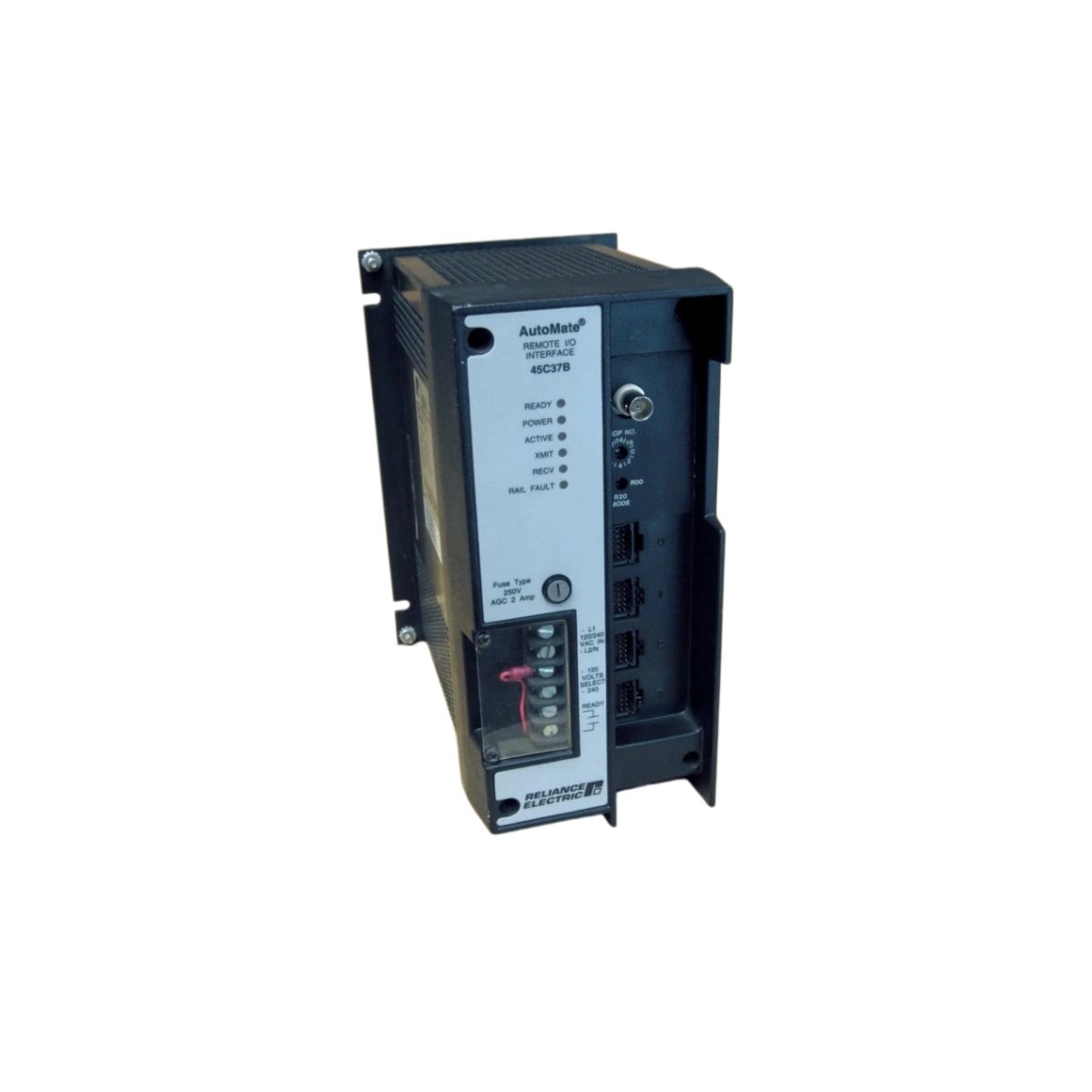

This module serves as the primary communication gateway between the controller and distributed field devices. It manages data exchange across multiple remote I/O racks in a deterministic manner. You can deploy this head module in large-scale automation architectures with high node counts. It reduces wiring complexity by using a single twisted-pair or fiber optic link. The unit actively polls each connected slave module for input status updates. It then transmits output commands with minimal propagation delay.

Mechanical Dimensions and Mounting

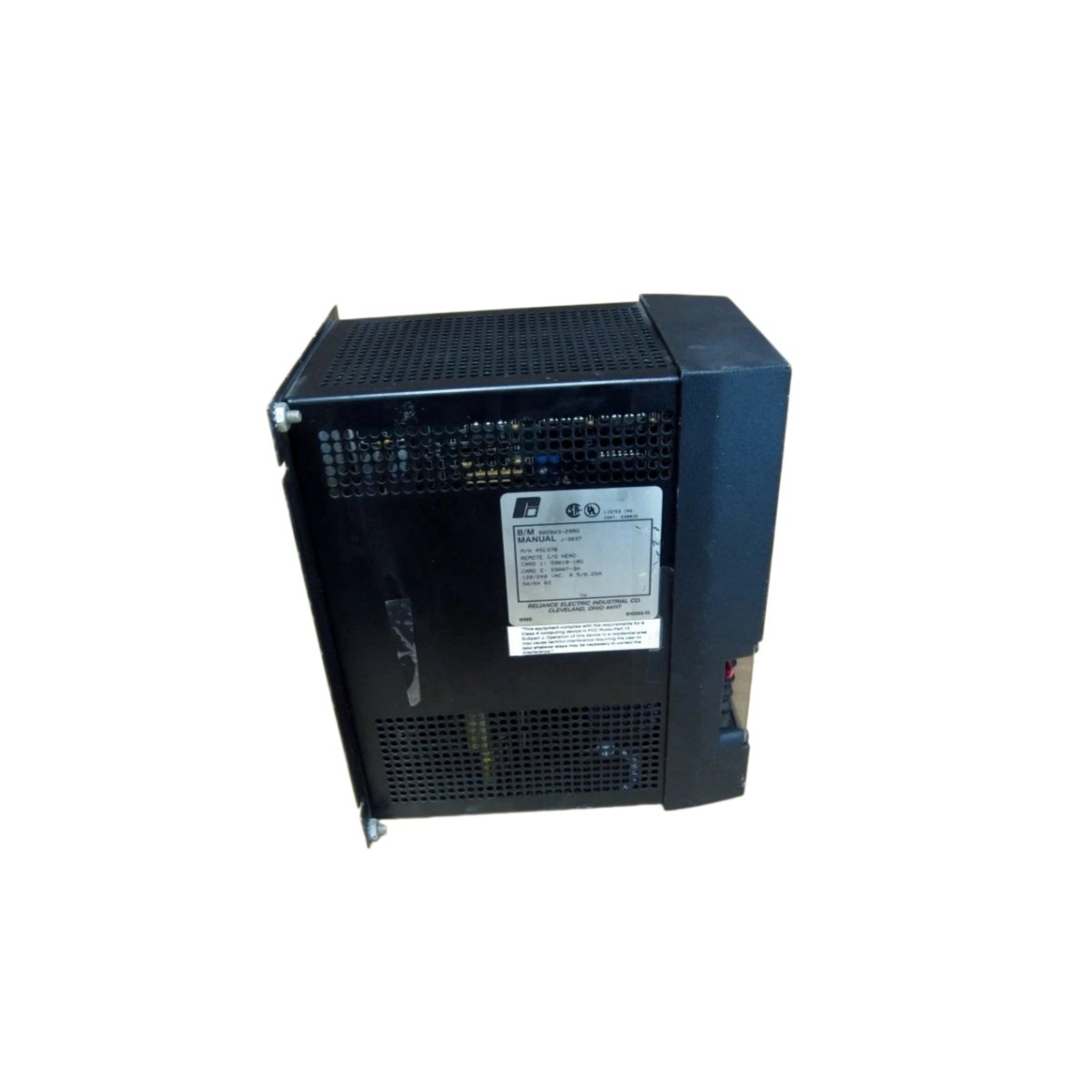

The Reliance Electric 45C37B measures 360.7 mm in height and 114.3 mm in width. Its depth reaches 198.1 mm from the front bezel to the rear connector. This assembly weighs approximately 2.8 kg, which facilitates easy handling during installation. You can mount the module on a standard DIN rail or secure it directly to a backplate. Its compact envelope suits high-density cabinets where space is at a premium. The housing incorporates integral cooling fins for passive heat dissipation.

Connectivity and Field Wiring Interfaces

A front-accessible terminal block provides screw-clamp connections for power and network cabling. This block accepts wire gauges from 14 AWG to 22 AWG for reliable terminations. The module includes one RS-485 serial port and one coaxial port for redundant communication paths. Each port supports baud rates up to 1.5 Mbps over distances of 4,000 feet. You also get a dedicated diagnostic port for local configuration and troubleshooting. This port uses a standard DB-9 female connector with a simple pinout.

Component Architecture and Memory Resources

The internal logic board contains a 32-bit microprocessor with 512 KB of flash memory. It also houses 128 KB of static RAM for temporary data buffering. You will find 12 discrete optocouplers that isolate the field signals from the backplane. The Reliance Electric 45C37B uses a quartz crystal oscillator for precise timing synchronization. A separate EEPROM retains configuration settings during power loss. The total component count on the main PCB reaches 85 individual parts.

Power Requirements and Energy Storage

This head module draws a nominal 24 VDC at 450 mA under full load. An internal 1,000 µF capacitor bank provides short-term holdup during momentary brownouts. This capacitance sustains the logic circuitry for 50 milliseconds after input power drops. The module also features a 3 V lithium battery for maintaining the real-time clock. This battery offers a shelf life exceeding 5 years. These energy storage features ensure data integrity and smooth fault recovery.

Environmental Ratings and Operational Limits

The Reliance Electric 45C37B operates reliably across a temperature span of -20°C to 60°C. It withstands relative humidity levels between 5% and 95% without condensation. The enclosure meets NEMA 12 standards for dust and drip protection. Vibration tolerance reaches 2 G from 10 to 500 Hz. Shock resistance peaks at 15 G for 11 milliseconds. These ratings make it suitable for steel mills, chemical plants, and outdoor enclosures.

Technical Data Summary

Application Versatility and System Benefits

This remote head module simplifies the integration of distributed I/O points across large facilities. You can pair it with standard discrete input blocks and analog input modules. It significantly reduces the cable runs between field instruments and the main controller. The deterministic scanning cycle ensures time-critical data arrives without jitter. Maintenance teams appreciate the LED fault indicators for rapid diagnostics. This unit ultimately improves overall system reliability while cutting installation costs.
