This module provides precise analog-to-digital conversion for distributed control systems. It supports both voltage and current input configurations for maximum flexibility. Engineers rely on its rugged construction for continuous operation in demanding plant floors. The unit functions flawlessly across an ambient temperature range of 0°C to 60°C. Its space-saving design simplifies integration into crowded equipment racks or cabinets.

Core Technical Architecture

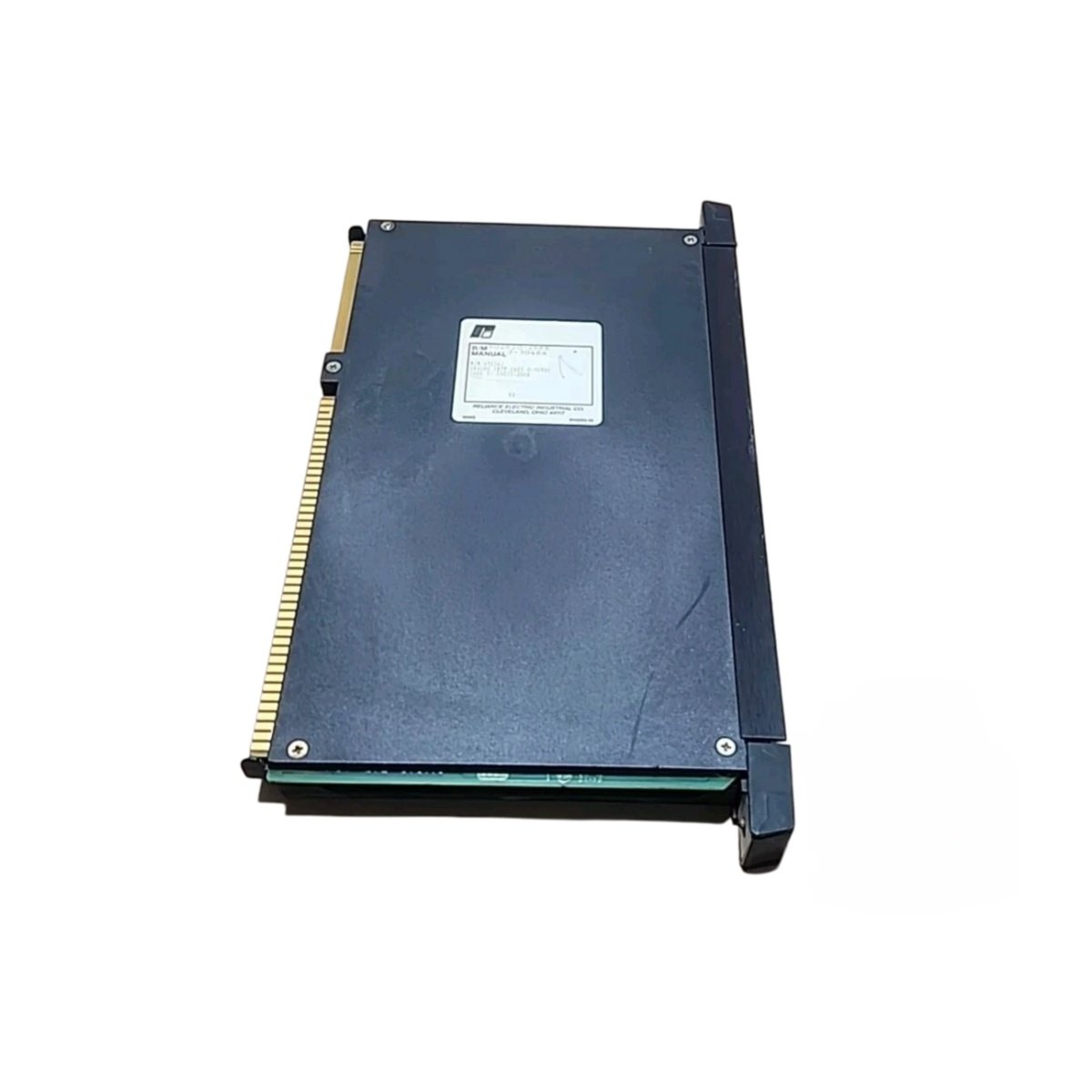

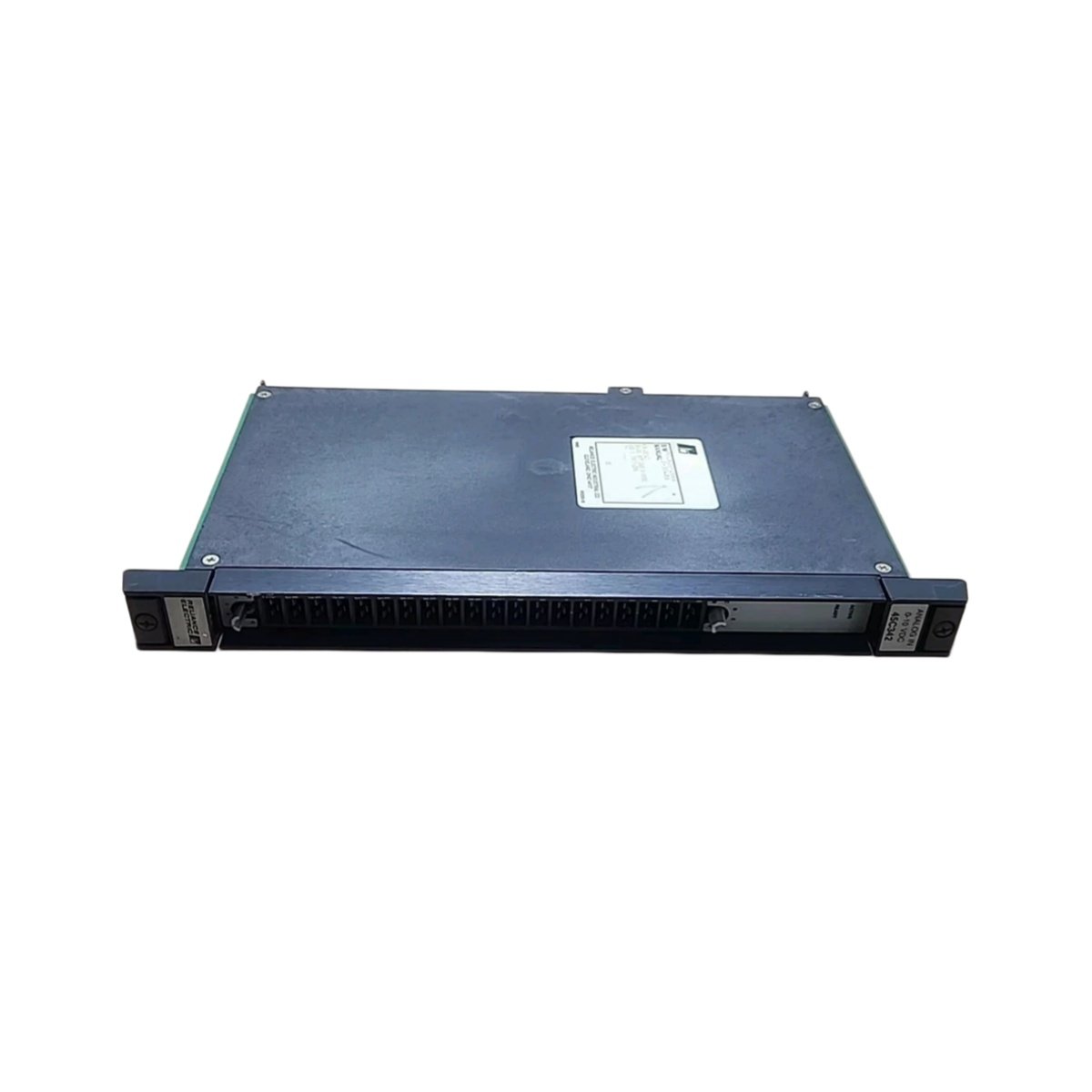

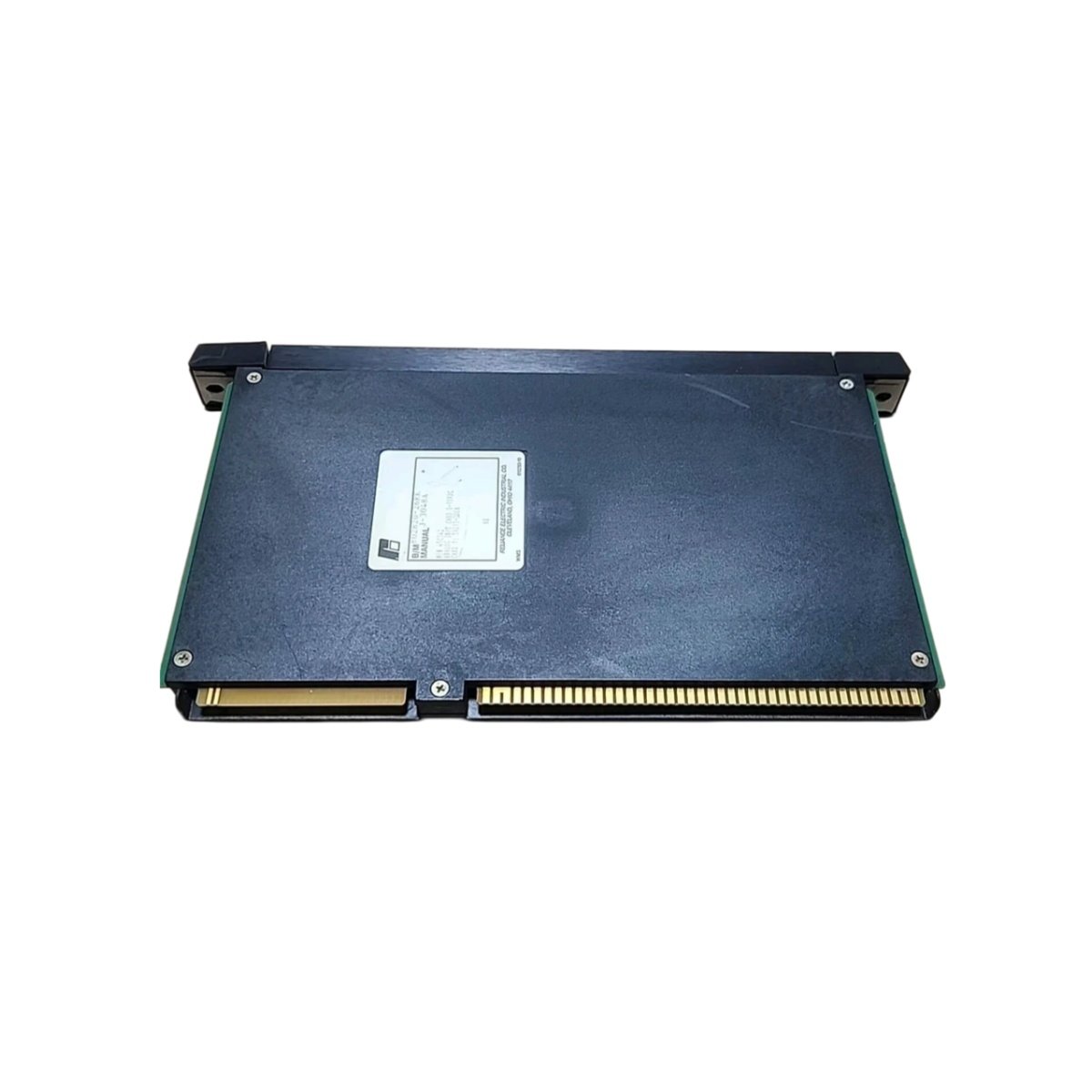

The 45C342 incorporates 8 differential analog input channels with true 16-bit resolution. Each channel handles 0–10V, ±10V, 0–20mA, or 4–20mA signals without external scaling resistors. The onboard microprocessor executes linearization and cold-junction compensation automatically. This design reduces external component count and simplifies field wiring. Consequently, system integrators achieve faster commissioning and lower maintenance costs.

Physical Dimensions and Mechanical Construction

This module measures 12.7 cm in width, 25.4 cm in height, and 20.3 cm in depth. It weighs roughly 1.2 kg, which ensures secure seating in backplane slots. A rugged die-cast aluminum housing dissipates heat efficiently and shields internal circuits. The unit mounts directly onto a standard DIN rail using the included bracket. Furthermore, its front panel provides clear access to all status indicators and the field connector.

Power Requirements and Field Wiring

The 45C342 accepts a nominal 24 VDC supply with a permissible ±10% variation. Under full operational load, it draws no more than 350 mA of current. A front-accessible 50-pin ribbon cable connector handles all field terminations. This connector accepts solid or stranded wire from 0.2 mm² up to 2.5 mm². Moreover, the terminal block offers screw-clamp retention for vibration-resistant connections.

Internal Componentry and Energy Storage

The printed circuit board contains 12 precision surface-mount resistors and 5 dedicated ICs. A 470 µF electrolytic capacitor provides temporary energy storage for transient ride-through. This capacitor sustains operation during brief power sags of up to 20 milliseconds. Additionally, the board includes a factory-programmed EEPROM that retains all calibration data. Therefore, the module restores its configuration instantly after a power cycle.

Performance Metrics and Signal Integrity

The 45C342 achieves a conversion throughput of 250 samples per second on each channel. Its overall accuracy stays within ±0.05% of full scale at a reference temperature of 25°C. Input impedance measures 10 MΩ for voltage ranges and 250 Ω for current loops. These specifications minimize signal loading and preserve sensor accuracy. A programmable digital filter further attenuates high-frequency electrical noise.

Diagnostics, Status, and Maintenance

Three front-panel LEDs indicate power status, run condition, and fault events clearly. The module also drives a dedicated alarm relay output for external annunciation. Software-based channel monitoring provides real-time health data via the backplane communication bus. Consequently, technicians can isolate faulty input circuits without shutting down the entire system. This diagnostic capability significantly reduces mean time to repair.
