Product Overview

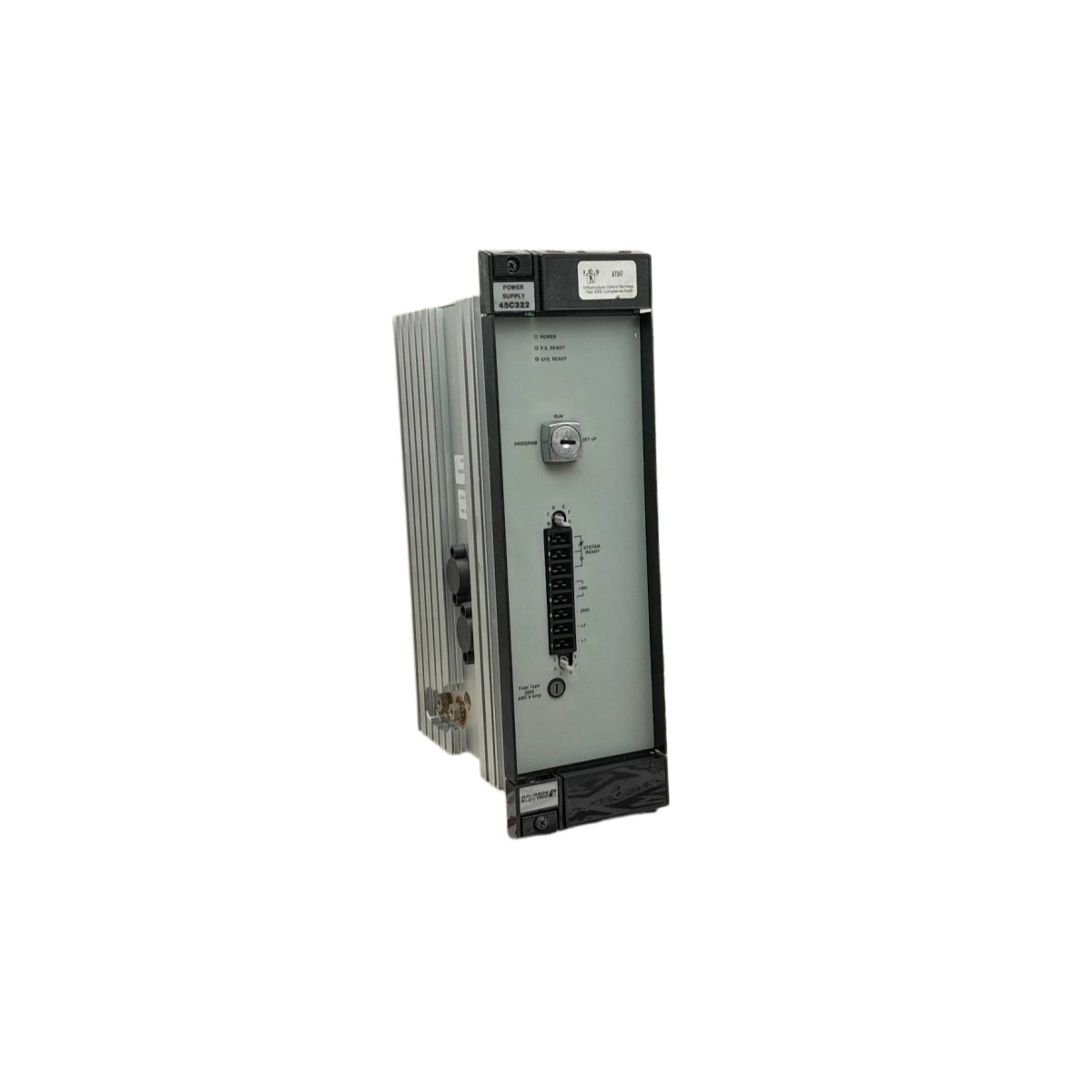

This power supply converts incoming AC mains into regulated DC voltages for control system operation. Industrial automation equipment requires stable, noise-free power for reliable performance. The 45C322 delivers multiple output voltages from a single compact chassis. Its rugged design withstands voltage sags and surges common in factory environments. Maintenance engineers can install this unit in standard 19-inch racks or panels. The supply’s forced-air cooling maintains safe operating temperatures under full load.

Technical Specifications

Power Conversion and Regulation

The 45C322 employs a switching topology with high-frequency transformer isolation. This design achieves 82% efficiency while maintaining tight output regulation. Main outputs track within ±2% of nominal values across all load conditions. The unit’s feedback loop responds to load changes within 500 microseconds. Separate regulation circuits prevent interactions between outputs.

Multiple Output Distribution

This power supply provides four independent DC outputs for versatile system powering. The 24-volt 10-amp output serves relays, contactors, and I/O modules. The 5-volt 3-amp output supplies logic circuits and microprocessor boards. Dual 15-volt outputs drive analog circuits and operational amplifiers. All outputs share a common return for simple system grounding arrangements.

Protection Systems and Fault Tolerance

Crowbar overvoltage circuits on each output protect connected equipment from regulator failures. Foldback current limiting reduces output current during short-circuit conditions to safe levels. Thermal sensors shut down the supply if internal temperatures exceed 75°C. Input fuses protect against internal faults and mains overcurrent events. The unit automatically restarts after clearing fault conditions.

Cooling and Thermal Management

A temperature-controlled internal fan maintains airflow across heat-generating components. The fan operates at reduced speed during low-load conditions for quieter operation. Aluminum heat sinks conduct thermal energy away from power semiconductors. The unit’s case design provides natural convection paths when the fan remains inactive. Stable operation continues up to 50°C ambient at full rated output.

Energy Storage and Hold-Up Time

Internal bulk capacitors store 940 µF at the 300-volt DC bus. This storage provides 25 milliseconds of hold-up during AC supply interruptions. The unit maintains output stability through momentary voltage sags. Discharge resistors safely de-energize capacitors within 5 seconds of power removal. Hold-up time exceeds typical circuit breaker coordination requirements.

Mechanical Design and Installation

The steel chassis measures 160 millimeters wide and 200 millimeters deep. Weighing 3.2 kilograms, the unit requires secure mounting to support its mass. Four screw holes accommodate either rack or panel installation methods. All input and output terminations use screw-type blocks with clear labeling. The front panel includes LED indicators for power-on and fault conditions.
