Product Overview

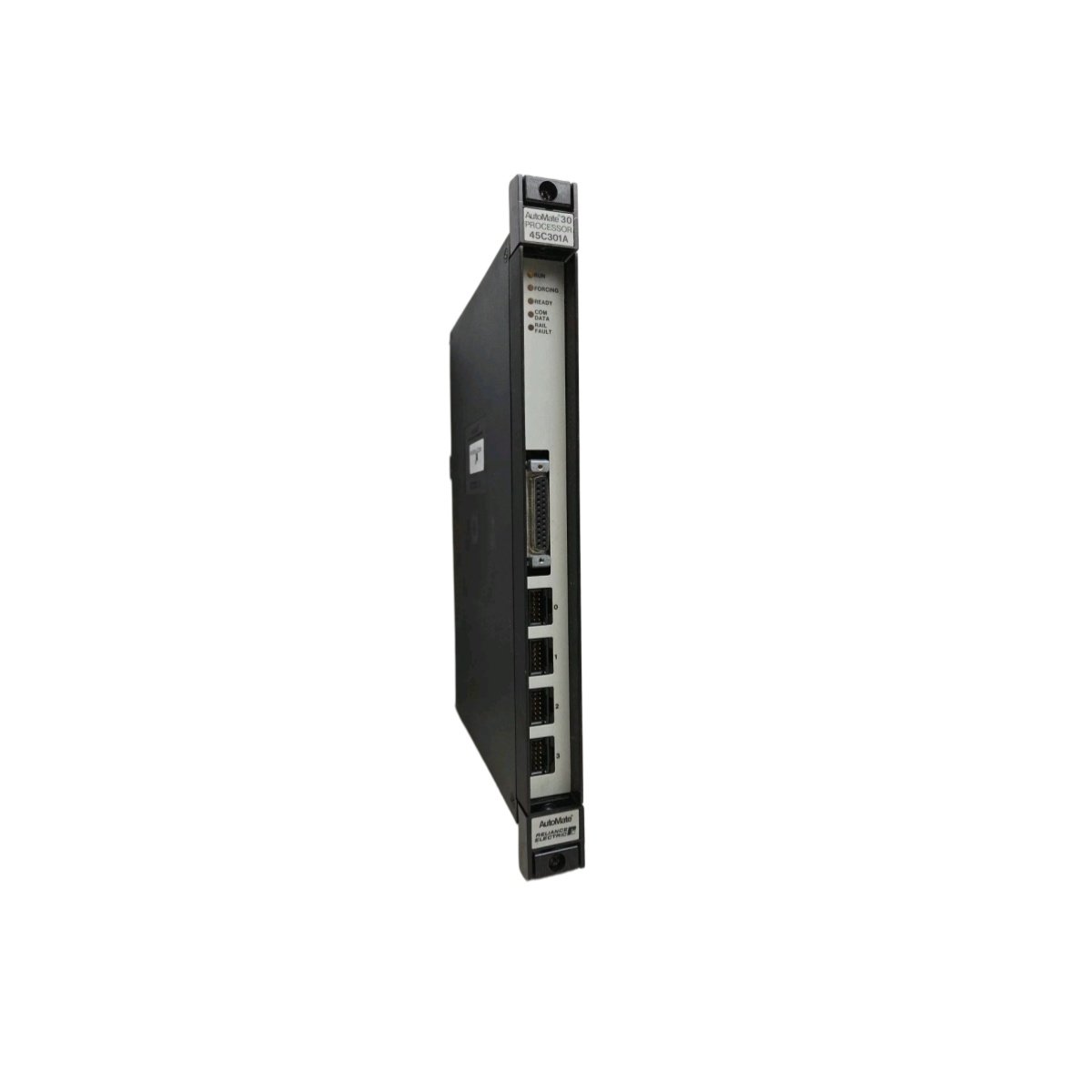

This gateway bridges communication between AutoMate controllers and external networks or devices. Industrial facilities require seamless data exchange between control systems and enterprise information networks. The 45C30 converts AutoMate protocols to standard formats like Modbus and Ethernet. Its compact design fits directly into the AutoMate rack system. Control engineers can configure this unit for various network topologies and data mapping requirements. The module’s dual-port design supports simultaneous communication with multiple devices.

Technical Specifications

Protocol Conversion and Data Bridging

The 45C30 translates AutoMate R-NET messages into Modbus RTU or TCP formats. This gateway stores incoming data packets and forwards them at the appropriate protocol timing. The module supports both master and slave operation modes for flexible integration. Engineers can map AutoMate data tables to Modbus register addresses seamlessly. The unit handles up to 512 registers of input and output data simultaneously.

Network Connectivity and Port Configuration

Two serial ports support RS-232 and RS-485 connections for diverse device interfaces. An integrated 10BASE-T Ethernet port enables connectivity with modern network infrastructure. RS-485 networks support up to 32 nodes over a 1200-meter cable segment. The module’s baud rate configuration matches the speed of connected devices automatically. Ethernet auto-negotiation simplifies connection to switches and routers.

Configuration and Data Mapping

Users configure the gateway via a terminal connection using ASCII commands. The module stores configuration settings in non-volatile memory for automatic reloading. Data mapping defines which AutoMate registers correspond to which Modbus addresses. The unit supports both polling and event-driven data transfer methods. Configuration files can be saved and uploaded for rapid system recovery.

Diagnostics and Network Monitoring

Diagnostic LEDs indicate power status, communication activity, and network link condition. The module reports communication errors and retry counts for troubleshooting. Ethernet link and activity LEDs verify physical connectivity at a glance. The gateway generates diagnostic messages for the host controller during faults. Users can monitor network traffic through the configuration terminal interface.

Power and Energy Consumption

The module draws a maximum of 6.0 watts from the 24-volt backplane supply. Internal capacitors store 220 µF for brief hold-up during power transients. Low power dissipation reduces thermal load in densely populated racks. The unit’s efficient design permits operation without forced air cooling. Power consumption remains stable across temperature and load variations.

Mechanical Construction and Installation

The 60-millimeter wide housing fits standard AutoMate rack slots with locking ejectors. Weighing 480 grams, the module inserts and removes with minimal effort. Front-panel ports provide convenient access for programming and network connections. Clear labeling identifies port assignments and configuration switches. The unit’s depth of 130 millimeters accommodates most enclosure depths.
