Primary Network Role and Communication Function

This gateway interface head bridges disparate fieldbus networks with the main automation controller. It translates protocols between remote I/O racks and the host system seamlessly. You can deploy this unit in hybrid architectures combining legacy and modern equipment. The module manages data traffic across multiple network segments without latency issues. It actively scans connected devices and updates the controller with fresh status information. This gateway design simplifies migration strategies for aging production facilities.

Physical Dimensions and Rack Integration

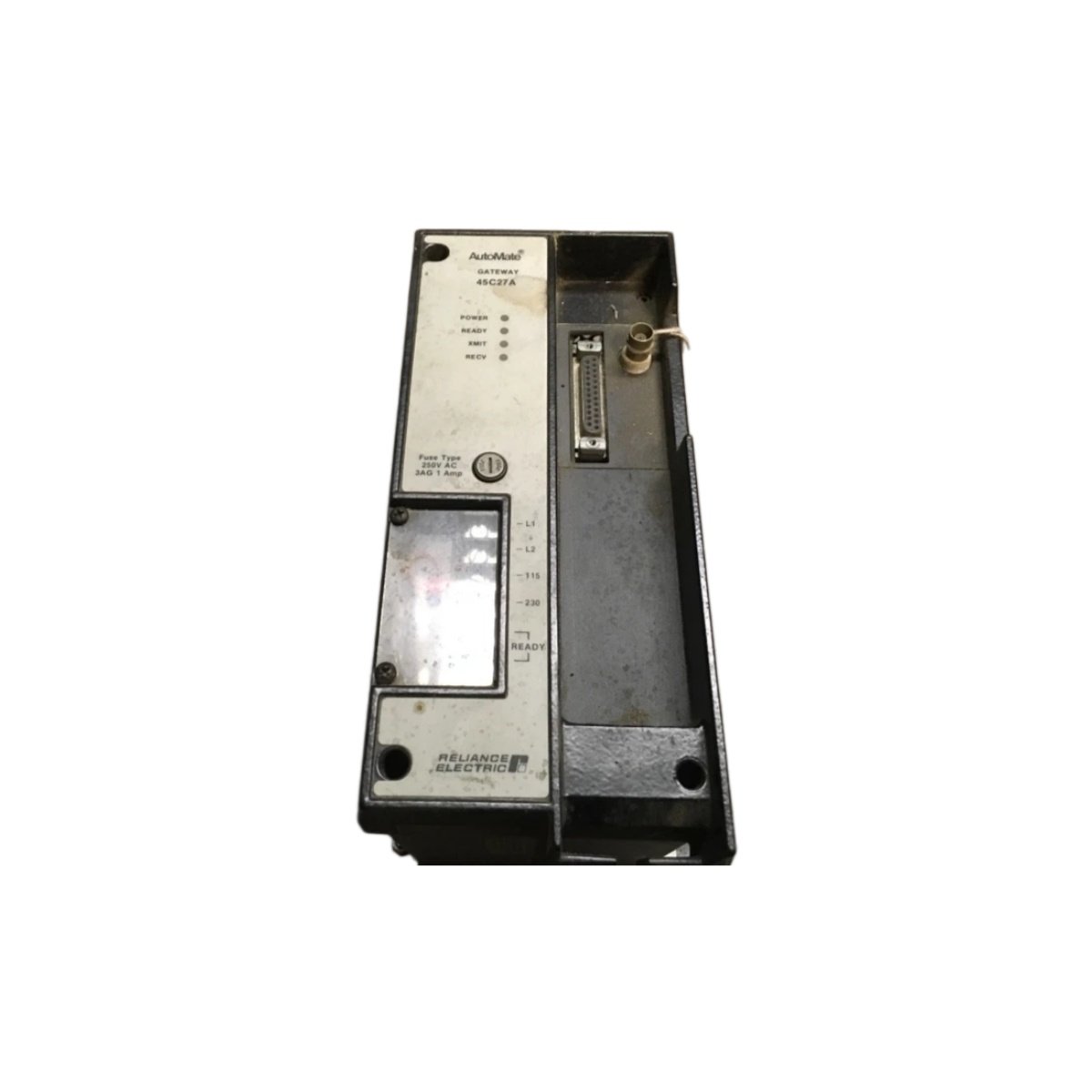

The Reliance Electric 45C27A measures 312.4 mm in height and 62.8 mm in width. Its depth reaches 215.6 mm from the front panel to the rear connector. This unit weighs approximately 2.15 kg, requiring careful handling during installation. You can slide this module into any standard 19-inch rack chassis. Two locking ejector handles secure the unit firmly in its slot. The steel enclosure provides excellent electromagnetic shielding for noise-critical environments.

Communication Ports and Protocol Support

This gateway features two independent RS-485 ports for multi-drop network connections. It also includes a 10Base-T Ethernet port for high-speed data exchange. The Reliance Electric 45C27A supports Modbus RTU and Modbus TCP protocols natively. You will also find a dedicated programming port with RS-232 interface. Each communication channel operates at selectable baud rates up to 115.2 kbps. The Ethernet port supports auto-negotiation for seamless integration with existing switches.

Processor Architecture and Memory Resources

The module houses a 32-bit ARM processor running at 48 MHz core frequency. It incorporates 1 MB of flash memory for firmware and configuration storage. The Reliance Electric 45C27A also provides 256 KB of battery-backed SRAM for data buffering. An additional 64 KB EEPROM holds network mapping tables and device profiles. The processor executes protocol conversion tasks with a typical throughput of 1,200 messages per second. This performance ensures real-time responsiveness in demanding control applications.

Network Scanning and Data Mapping

This gateway automatically discovers connected devices on the RS-485 network. It builds a dynamic data table that maps each slave’s input and output registers. You can configure the scan intervals for each device independently. The module prioritizes time-critical data for faster update cycles. It also provides a diagnostic log of communication errors for each connected device. This logging capability simplifies troubleshooting and preventive maintenance planning.

Internal Component Architecture

The main PCB contains over 150 discrete components across a four-layer design. You will find three optocouplers for isolated serial communication interfaces. The Reliance Electric 45C27A uses a high-performance switching regulator for internal power conversion. Sixteen TVS diodes protect all communication ports from transient voltage surges. A quartz crystal oscillator provides the primary timing reference for all operations. The component selection emphasizes long-term reliability in industrial environments.

Power Requirements and Energy Buffering

This gateway draws 350 mA from a 24 VDC supply during normal operation. The power consumption increases to 480 mA during network-heavy activities. An internal 2,200 µF capacitor bank provides 60 ms of ride-through protection. This capacitance ensures uninterrupted operation during brief supply interruptions. The unit also incorporates a 3 V lithium battery for real-time clock backup. This battery maintains the clock and fault logs for over five years.

Environmental Specifications and Standards Compliance

The Reliance Electric 45C27A operates effectively between 0°C and 55°C ambient. It tolerates humidity levels from 10% to 90% without condensation issues. The enclosure meets NEMA 12 standards for indoor industrial use. Vibration endurance reaches 2 G from 10 Hz to 150 Hz on each axis. Shock resistance measures 15 G for 11 milliseconds duration. These ratings support deployment in automotive plants and food processing facilities.

Technical Data Summary

Diagnostic Features and User Interface

This gateway includes a front-panel LCD display for real-time network status. You can navigate diagnostic menus using the four-button keypad. The display shows error counters, message rates, and device connection status. Three multi-color LEDs provide quick visual health indicators. The module also supports remote firmware updates via the Ethernet port.
