This high-performance module provides accurate analogue signal conversion for demanding process control environments. It transforms field sensor data into reliable digital values for the safety controller. We designed the ICS TRIPLEX T9432 specifically for applications requiring high-integrity analogue measurement. This module excels at monitoring variables like pressure, temperature, and flow. It consistently delivers precise, repeatable readings for critical loop control. Therefore, your system receives the high-quality data necessary for informed decision-making.
Hardware Architecture and Physical Characteristics

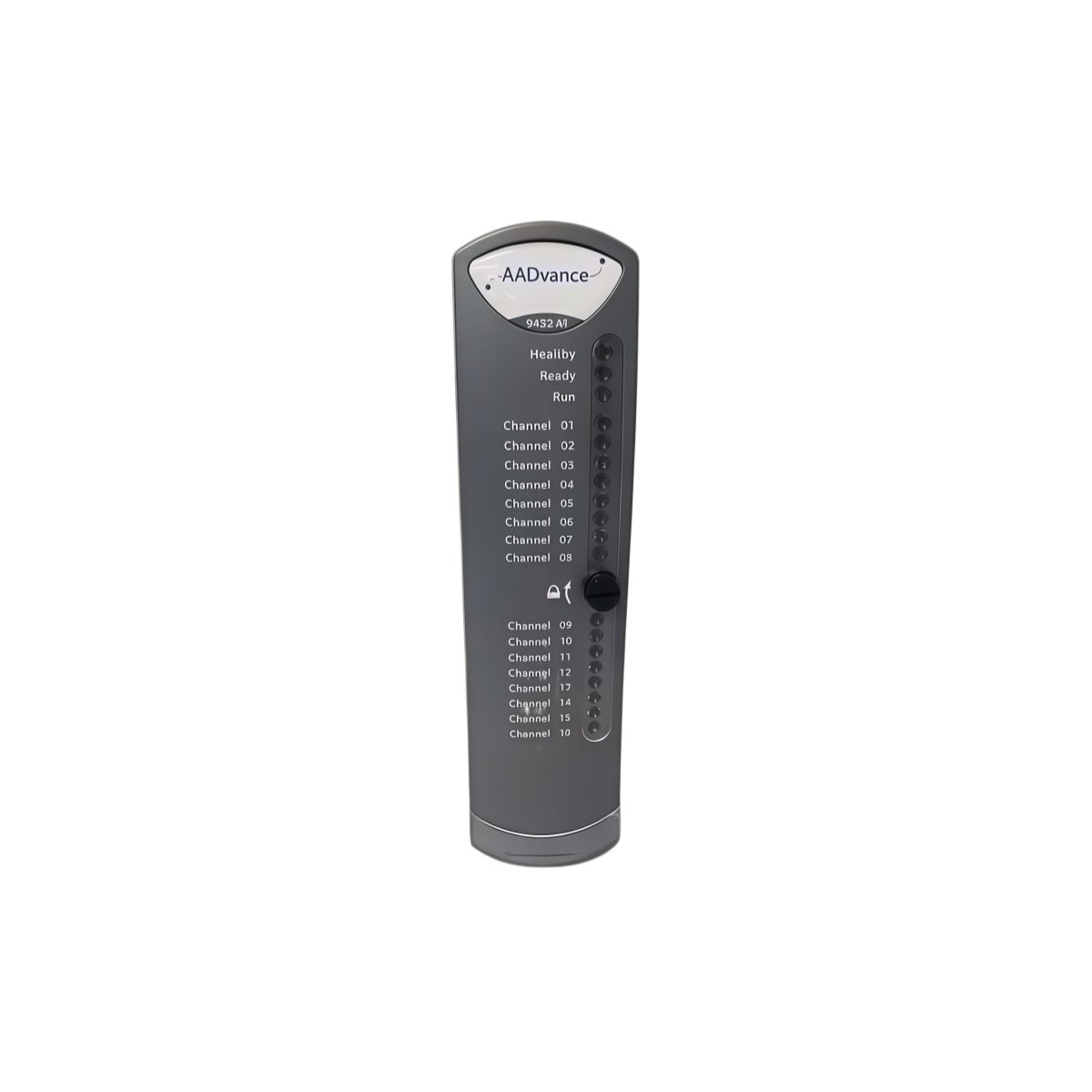

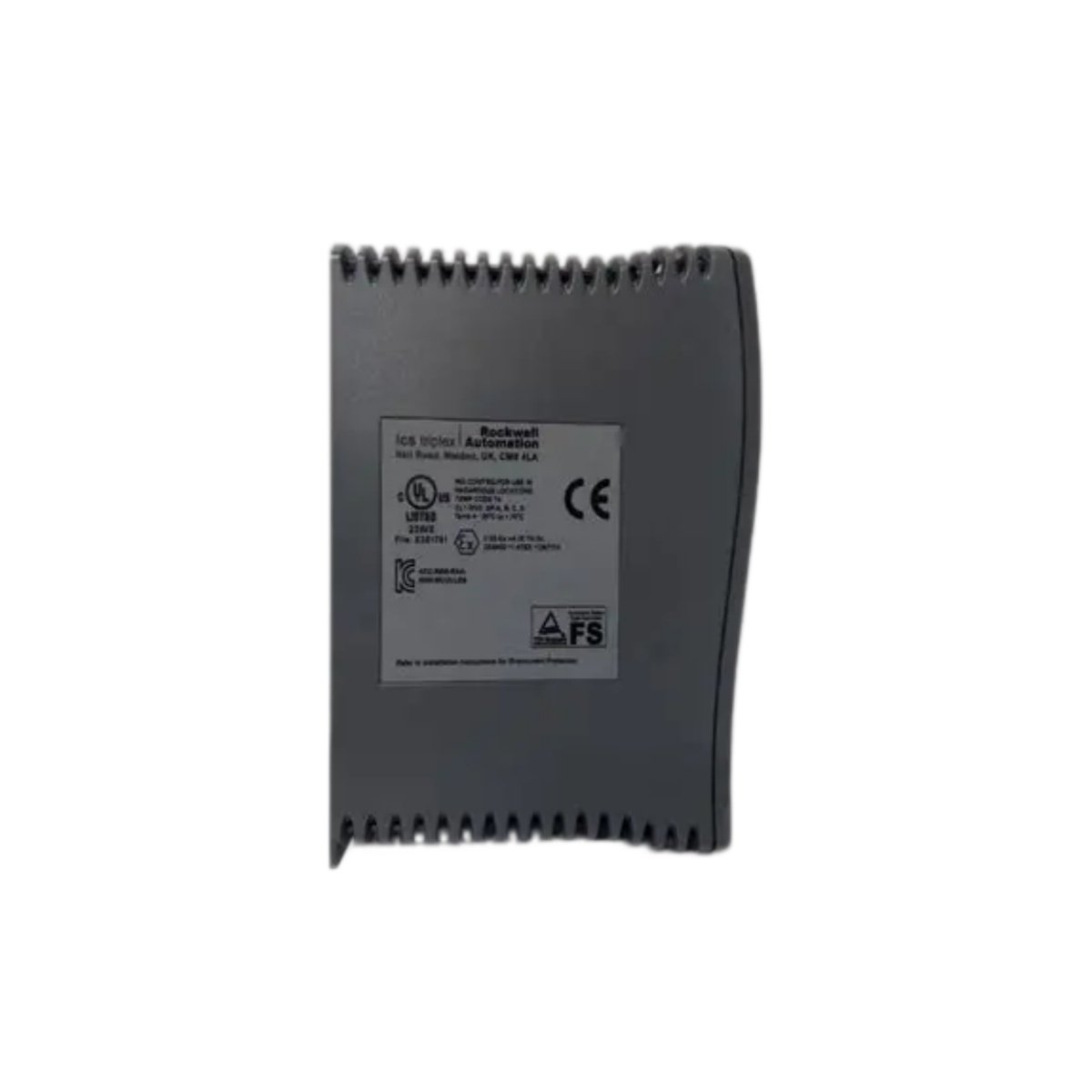

The ICS TRIPLEX T9432 features a robust mechanical construction suited for industrial installations. Its dimensions measure 30.0 cm in width, 25.0 cm in height, and 4.5 cm in depth. The unit weighs approximately 1.3 kilograms, reflecting its solid component layout. This module offers 16 differential analogue input channels for versatile field connectivity. Each channel provides true 16-bit resolution for exceptional measurement granularity. The module interfaces via a high-density 50-pin D-sub connector for secure field wiring. It draws a typical power of 6 Watts from the 24 VDC supply rail.
Input Ranges, Accuracy, and Energy Resilience
The onboard power management includes an energy storage circuit for operational stability. A capacitor bank maintains critical internal states for up to 15 milliseconds. This feature allows the ICS TRIPLEX T9432 to endure minor supply interruptions without data corruption. It supports multiple input types including 0-20 mA, 4-20 mA, 0-5 V, and 0-10 V. The module achieves an overall accuracy of ±0.1% of full span at 25°C. It also provides a temperature drift of only ±50 ppm/°C for consistent performance. This stability ensures your control loops receive dependable signals under varying ambient conditions.
Comprehensive Interface and Diagnostic Details
We present the module’s key technical attributes and operational specifications in the table below.
| Specification | Detail |
|---|---|
| Part Number | ICS TRIPLEX T9432 |
| Product Category | Analogue Input Module |
| Dimensions (W x H x D) | 30.0 cm x 25.0 cm x 4.5 cm |
| Module Weight | Approximately 1.3 kg (2.87 lbs) |
| Number of Input Channels | 16 differential channels |
| Input Signal Types | 0-20 mA, 4-20 mA, 0-5 V, 0-10 V (software selectable) |
| Resolution | 16 bits (including sign bit) |
| Overall Accuracy | ±0.1% of full span at 25°C |
| Temperature Drift | ±50 ppm/°C maximum |
| Input Impedance | 250 Ω (current mode), > 1 MΩ (voltage mode) |
| Common Mode Rejection | > 100 dB at 50/60 Hz |
| Power Supply Voltage | 24 VDC nominal (18 to 32 VDC range) |
| Typical Power Consumption | 6 W |
| Energy Storage Hold-up Time | 15 ms minimum |
| Isolation Voltage | 1500 VAC (field to logic) |
| Interface Connector | One 50-pin D-sub female connector |
| Diagnostic Indicators | LED for module status, channel over-range/under-range flags |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Compliance | CE, UL, and TÜV certified for functional safety |
Details
| Weight | 1.3 kg |
|---|---|
| Dimensions | 300 × 250 × 45 mm |
